7
8

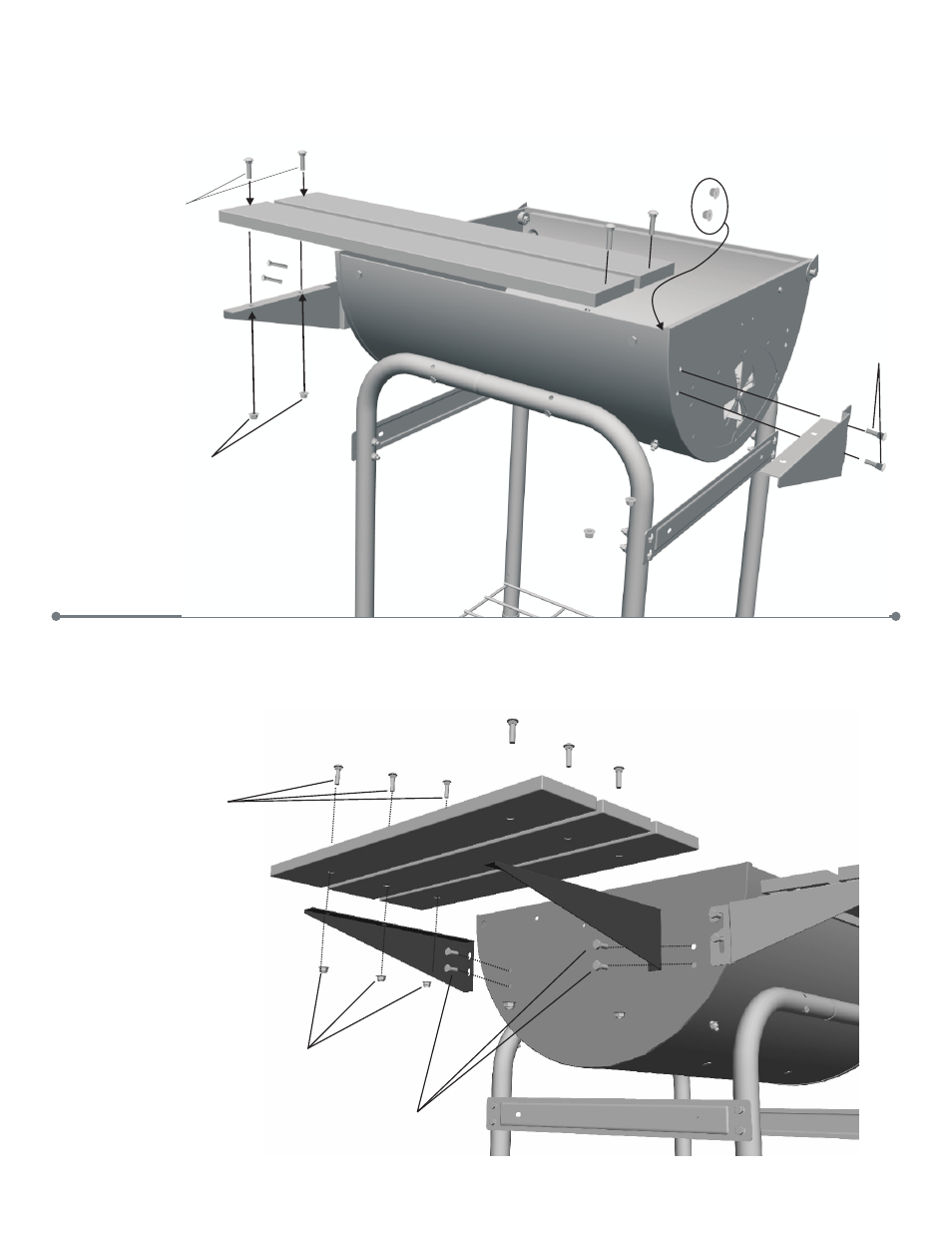

• Attach LH and RH Front Shelf Brackets to the firebox using 4 each 1/4-20" Shoulder Bolts and 4 each 1/4-20
flange nuts.
• After the front shelf brackets are secured, attach the front shelf slats to the brackets using 4 each 1/4-20x1 1/4
screws and 4 each 1/4-20 flange nuts.
1/4-20 Flange Nuts
1/4-20x1 1/4
Screws
1/4-20 Shoulder
Bolts
1/4-20 Flange Nuts
1/4-20 Flange Nut 1/4-20 Flange Nut
1/4-20x1 1/4
Screws
1/4-20x1/2
Screws
Page 11
A - Attach Side Shelf Brackets to LH side of firebox using 4 each 1/4-20x1/2 screws and 4 each 1/4-20 Flange nuts.
B - Attach Side Shelf Slats to Side shelf brackets using 6 each 1/4-20x1 1/4" screws and 6 each 1/4-20 flange nuts.
NOTE: The Side Shelf may be pre-assembled, if so attach the Side Shelf per Step A.
