ASSEMBLY
Page 8
2
1 FIRST, GET A HELPER! This unit is heavy and requires a second person for lifting and moving. NEXT, pick a suitable
location to work. Open the carton and slit the corners so that the carton lays flat. This will give you a protective surface
during assembly.

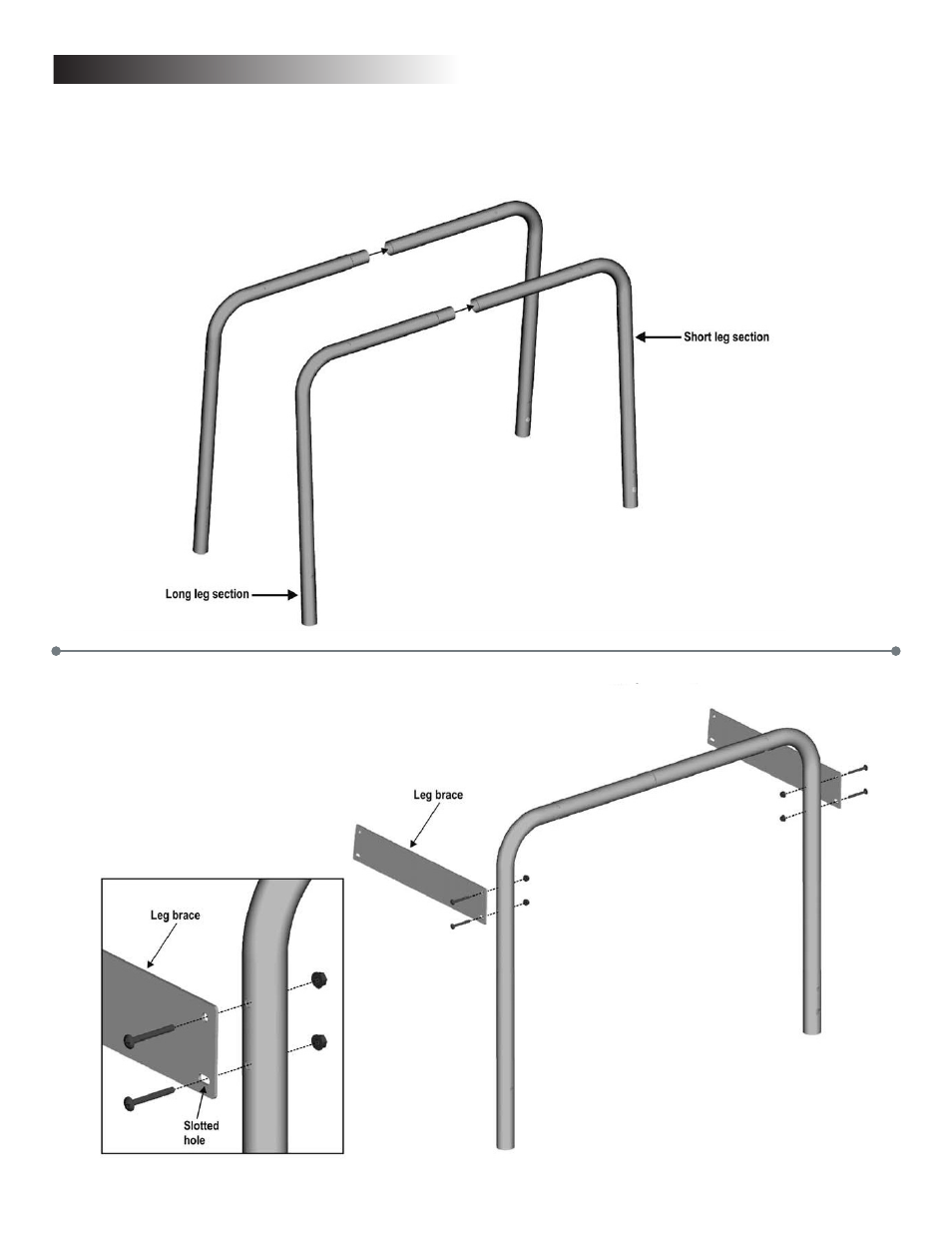

To begin assembly, build two leg assemblies by sliding the long leg sections into the short leg sections.
Attach leg braces to the outside of one leg assembly using 4 each 1/4-20x1 3/4" screws and 4 each 1/4-20 flange nuts.
Do not fully tighten screws until Step 6 is complete.
