be mounted at angles up to 90° left or
right.

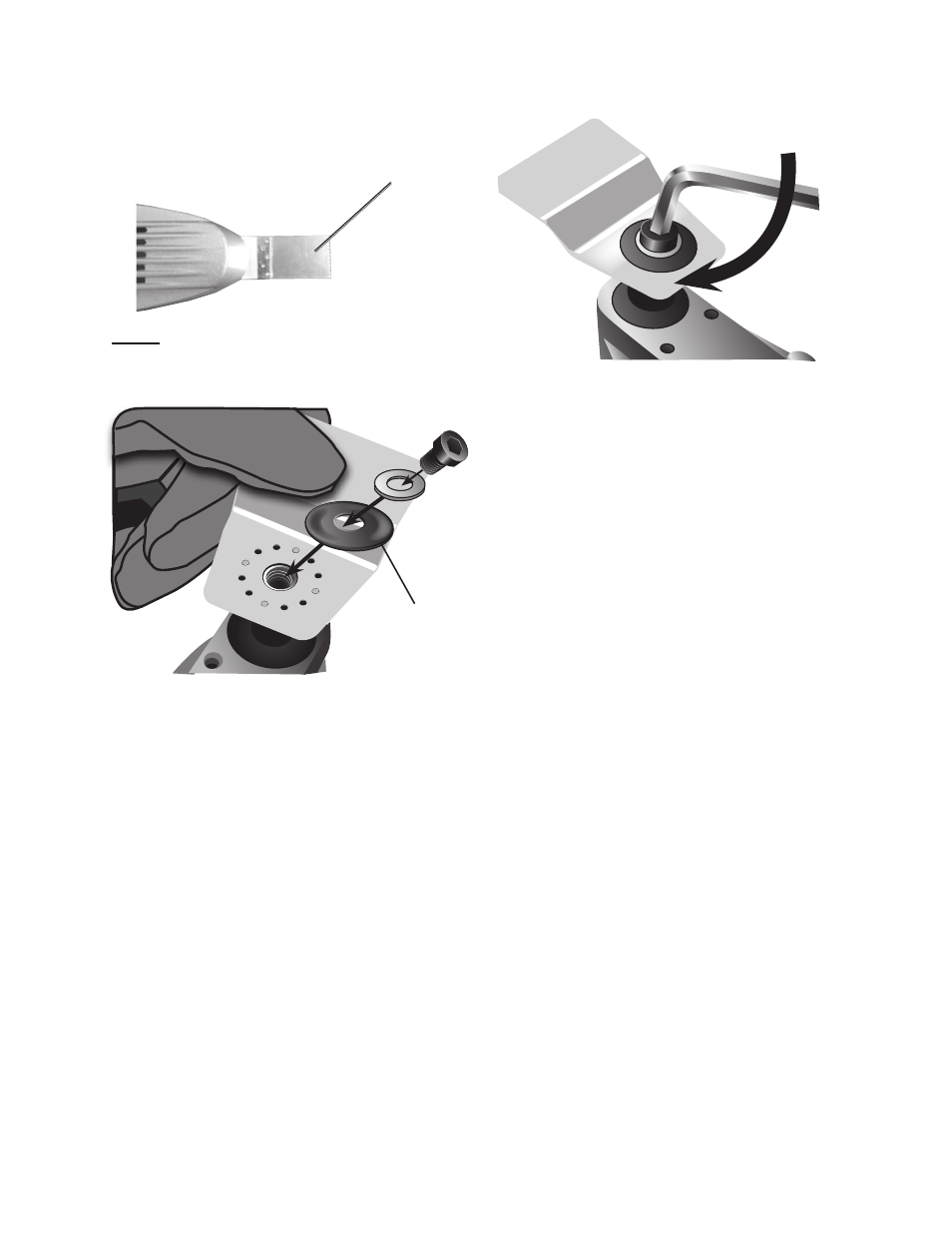

Figure d
Angled Cutter Blade (501)
Note: The long Angled Cutter Blade (501)
should only be used in the straight
ahead position. (See Figure d.)
Place Large
Washer,
cupped side
down
Figure E
3. Slide the Small Washer (2), then the
Large Washer (3) onto the the Cap
Screw (1). Make sure the cupped
side of the Large Washer is toward
the tool. While holding the attachment
over the pins on the tool, thread the
Cap Screw in place. (See Figure E.)
Torque to 10 ft-lbs
Figure F
4. Tighten the cap screw onto the
Spindle using the provided hex key.
Torque firmly (approximately 10
ft-lbs). After securing, the attachment
should not move on the spindle. If it
can move with the power off, remount
it, making sure that the holes on the
attachment line up with the pins on
the spindle. Tighten the cap screw
securely.
