SKU 67256 For technical questions, please call 1-800-444-3353. Page 8

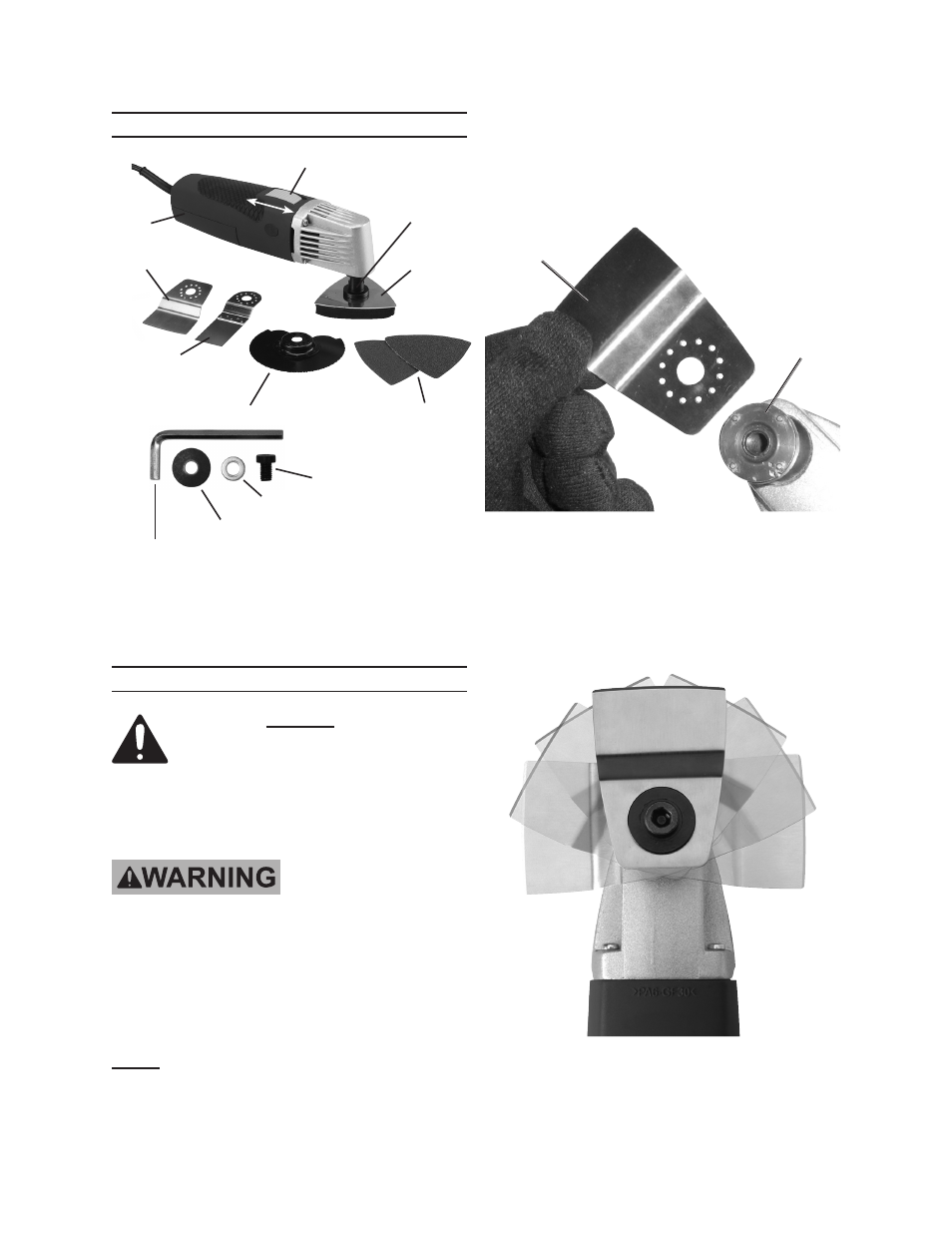

COMPONENTS
Angled Scraper (4)
Tool
Angled Cutter
Blade (501)
Half Moon Cutter Blade (503)
(not shown):
Two replacement
Carbon Brushes (40)
Sanding
Sheets (504)
Sanding
Pad
(502)
Hex Wrench (505)
Power Switch (44)
ON
OFF
Small Washer (2)
Large Washer (3)
Cap Screw (1)
Spindle (5)
Figure a
aSSEMbLY INSTRUCTIONS
Read the ENTIRE IMPORTaNT
SaFETY INFORMaTION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
TO PREVENT
SERIOUS INjURY
FROM aCCIdENTaL
OPERaTION:
Turn the Power Switch (44) off
and unplug the tool from its
electrical outlet before
assembly.
Note: For additional information regarding
the parts listed in the following pages,
refer to the Assembly Diagram near
the end of this manual.
Turn the Power Switch off and unplug
1.
the tool.
attachment
[angled
Scraper (4)]
Spindle
(5)
Figure b
2. Place the attachment over the
Spindle (5), shoulder facing away
from the tool. Line up the holes on
the attachment with the pins on the
Spindle shoulder.
(See Figure b.)
Figure C
Attachments (with the exception of
the long Angled Cutter Blades) may
