Installation
1. Turn off the TV/monitor and PC/DVD player.
2. Connect WCAV-EJN extender Local Unit HD-15/RCA
input connector with HD-15/RCA male to male cable
from PC/DVD player.
3. Connect WCAV-EJN extender Local Unit audio(RCA R/L)
input connector with audio cable from PC/DVD player.
4. Connect the WCAV-EJN extender Local and Remote
Unit with two CAT.5 cables.
5. Connect WCAV-EJN extender Remote Unit HD-15/RCA
connector with HD-15/RCA male to male cable from
monitor/TV.
6. Connect WCAV-EJN extender Remote Unit audio(RCA
R/L) output connector with audio cable from TV/audio
amplifier.
7. Turn on the TV/monitor and PC/DVD player and audio
amplifier.
NOTE:
CAT.5 A and CAT.5 B must not be connected wrongly.
They must be connected one-to-one correspondently.
When the display has shown an abnormality during
operation, please use STP cable, and connect the
Ground cable in STP cable to the GND screw of the
product.
-3-

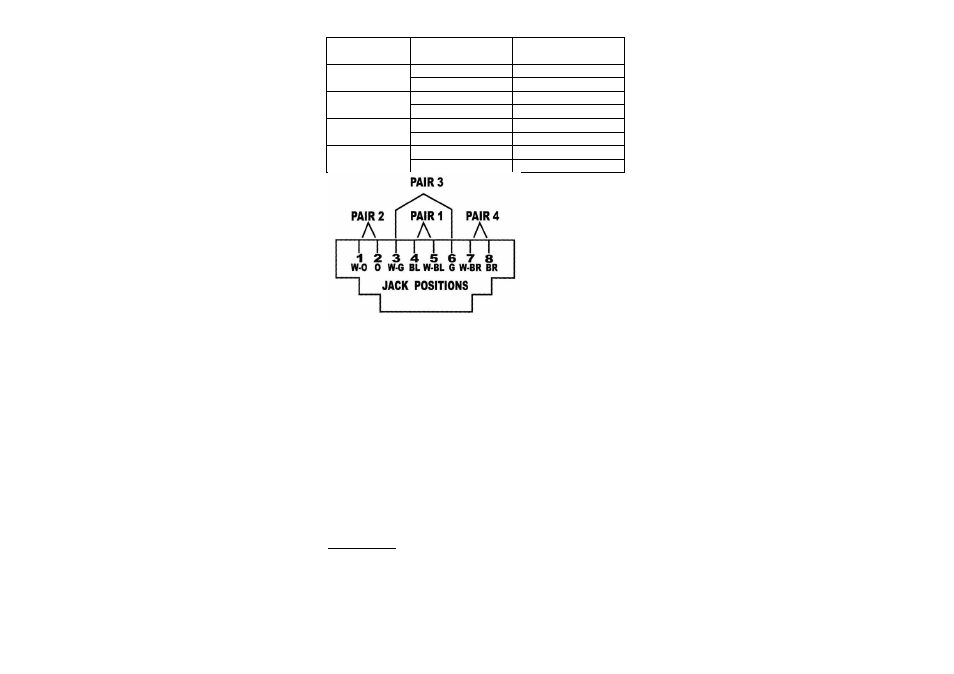

Wiring Information & Coding
Conductor
Identification
RJ45 Pin
Assignment
Color Code for
Conductor
5 White-Blue
Pair 1
4 Blue
1 White-Orange
Pair 2
2 Orange
3 White-Green
Pair 3
6 Green
7 White-Brown
Pair 4
8 Brown
