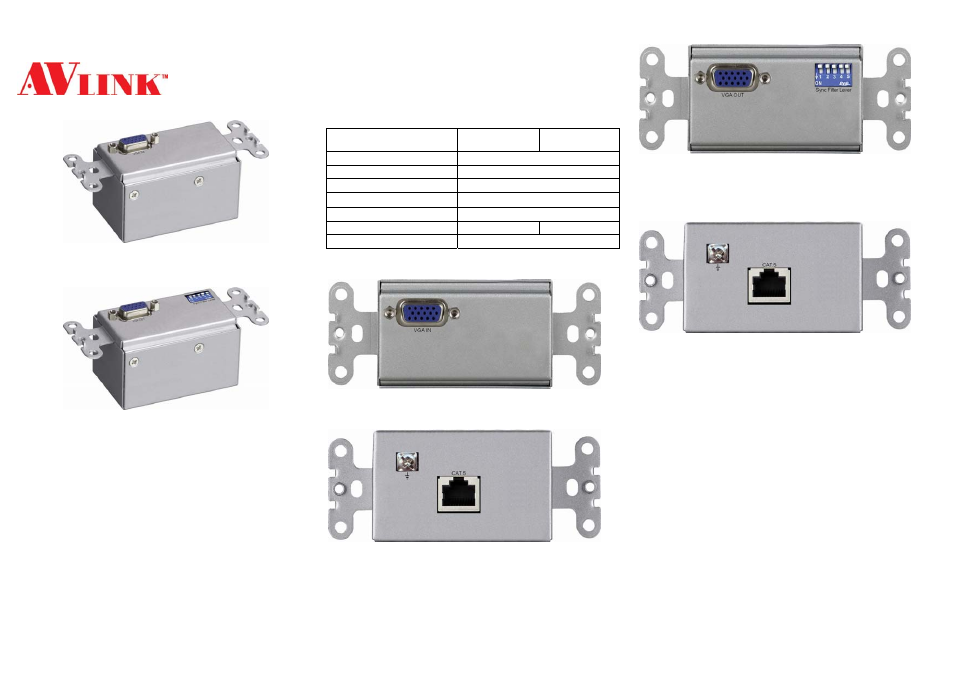

Avlink WVGA-EJN - Manual

VGA
EXTENDER
WVGA-LJN
(Local)
WVGA-RJN
(Remote)
U SER M ANUAL V1.0
WVGA-EJN
Package Contents-
ƒ WVGA-LJN Local Unit
ƒ WVGA-RJN Remote Unit
ƒ 1 user manual
ƒ 1 VGA 1.2M cable (HD-15 Male to Male)
ƒ 4 M4*10mm screws
ƒ 4 P6*14mm screws
Anything missed, please contact with your vendor.
Features
ƒ The extension of video and audio signal up to 30 meter
away by using the VIDEO Extender and CAT.5 cable.
ƒ No external power required.
ƒ One gang size.
Specifications
Function WVGA-LJN WVGA-RJN
VGA In/Out Connector 1x HD-15 Female
Cable Connector 1x RJ-45
Max. Resolution 1280x1024 60Hz
Cable Distance 30 m (Max.)
Housing Metal
Weight 170 g 170 g
Dimensions (LxWxH) 105x42x38 mm
LOCAL FRONT VIEW
1. VGA Input (HD-15 Female Connector)
LOCAL REAR VIEW
1. GND: For connecting to the earth wire.
2. CAT.5 Output
-1-
REMOTE FRONT VIEW
1. VGA Output (HD-15 Female Connector)
2. Sync Fitter Level switch: This SW is not used
generally, and is only used while adjusting H/V.
REMOTE REAR VIEW
1. GND: For connecting to the earth wire.
2. CAT.5 Input
Installation
1. Turn off the PC and monitor.
2. Connect WVGA-EJN extender Local Unit HD-15 female
input connector with HD-15 male to male cable from PC.
3. Connect the WVGA-EJN extender Local and Remote
Unit with CAT.5 cable.
4. Connect WVGA-EJN extender Remote Unit HD-15
female connector with HD-15 male to male cable from
monitor.
5. Turn on the PC and monitor and audio amplifier.
NOTE:
ƒ When the display has shown an abnormality during
operation, please use STP cable, and connect the
Ground cable in STP cable to the GND screw of the
product.
