Avlink WYV-EJN - Manual

YPbPr
EXTENDER
WYV-LJN / WYV-RJN
U SER M ANUAL
V1.0
WYV-EJN
Package Contents-
ƒ WYV-LJN Local Unit
ƒ WYV-RJN Remote Unit
ƒ 1 user manual
ƒ 4 M4*10mm screws
ƒ 4 P6*14mm screws
Anything missed, please contact with your vendor.
Features
ƒ The extension of video and audio signal up to 30 meter
away by using the YPbPr/AUDIO Extender and CAT.5
cable.
ƒ No external power required.
ƒ One gang size.
Specifications
Function WYV-LJN / WYV-RJN
Video In/Out Connector 1 Set RCA(YPbPr) Female
Audio In/Out Connector 1x RCA Female
Cable Connector 1x RJ-45
Cable Distance 30 m (Max.)
Housing Metal
Weight 165 g
Dimensions (LxWxH) 105x42x38 mm

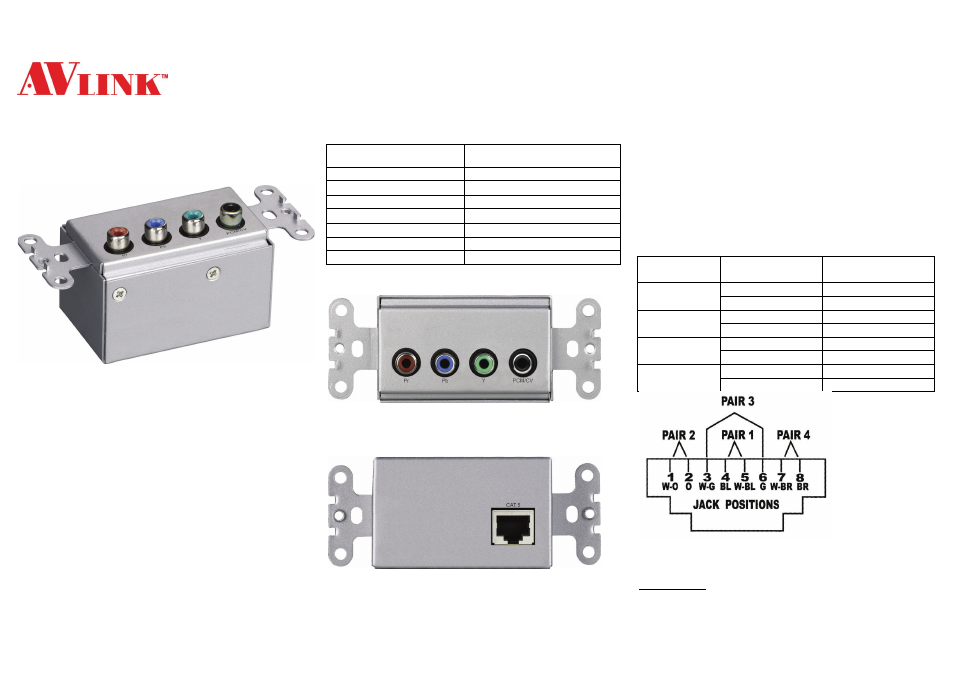

LOCAL / REMOTE FRONT VIEW
1. Video RCA(YPbPr) Female
2. Audio RCA Female
LOCAL / REMOTE REAR VIEW
1. CAT.5
-1-
Installation
1. Turn off the TV and DVD player.
2. Connect WYV-EJN extender Local Unit RCA input
connector with RCA male to male cable from DVD
player.
3. Connect WYV-EJN extender Local Unit RCA audio input
connector with audio cable from DVD player
4. Connect the WYV-EJN extender Local and Remote Unit
with CAT.5 cable.
5. Connect WYV-EJN extender Remote Unit RCA
connector with RCA male to male cable from TV.
6. Connect WYV-EJN extender Remote Unit RCA audio
output connector with audio cable from TV/audio
amplifier.
7. Turn on the TV and DVD player and audio amplifier.
Wiring Information & Coding
Conductor
Identification
RJ45 Pin
Assignment
Color Code for
Conductor
5 White-Blue
Pair 1
4 Blue
1 White-Orange
Pair 2
2 Orange
3 White-Green
Pair 3
6 Green
7 White-Brown
Pair 4
8 Brown
© C&C TECHNIC TAIWAN CO., LTD. All rights reserved.
Trademarks:
All the companies, brand names, and product names
referred to this manual are the trademarks or
registered trademarks belonging to their respective
companies.
-2-
