Avlink WCV-EJN User Manual
Composite video extender, Features, Specifications

Composite
Video
EXTENDER
WCV-LJN / WCV-RJN
U
SER
M
ANUAL
V1.0
WCV-EJN
Package Contents-
WCV-LJN Local Unit
WCV-RJN Remote Unit
1 user manual
4 M4*10mm screws
4
P6*14mm
screws
Anything missed, please contact with your vendor.
Features
The extension of video and audio signal up to 30 meter
away by using the VIDEO/AUDIO Extender and CAT.5
cable.
No external power required.
One gang size.
Specifications
Function WCV-LJN
WCV-RJN
Video In/Out Connector
1x RCA Female
Audio In/Out Connector
1 Set RCA(R/L) Female
Cable Connector
1x RJ-45
Cable Distance
30 m (Max.)
Housing Metal
Weight
150 g
150 g
Dimensions (LxWxH)
105x42x38 mm

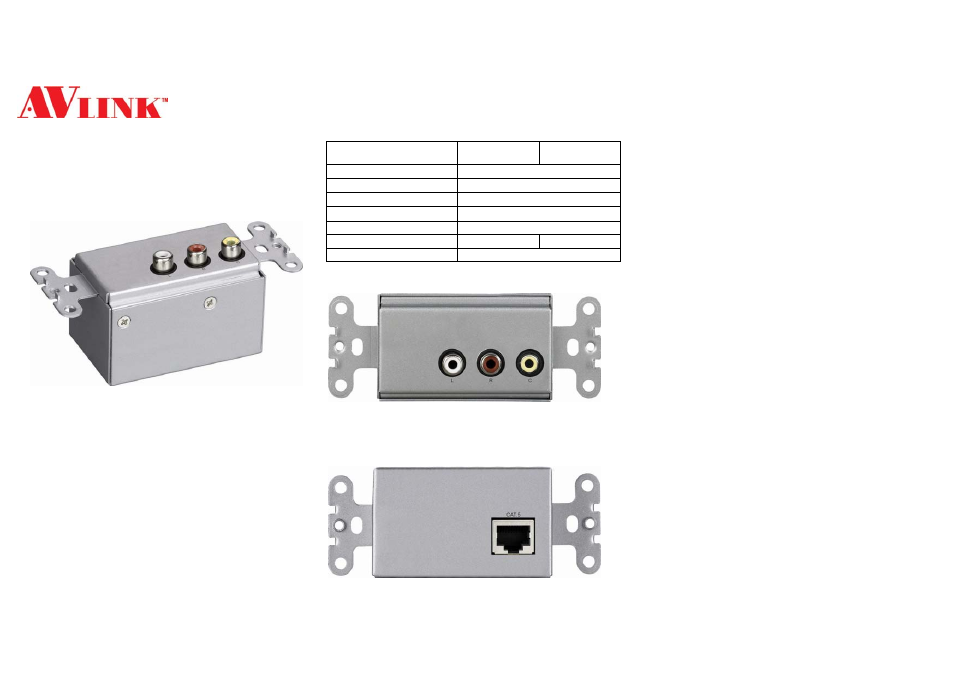

LOCAL / REMOTE FRONT VIEW
1. RCA L Female Audio
2. RCA R Female Audio
3. Composite Video RCA Female
LOCAL / REMOTE REAR VIEW
1. CAT.5
-1-
Installation
1. Turn off the TV and DVD player.
2. Connect WCV-EJN extender Local Unit RCA input
connector with RCA male to male cable from DVD
player.
3. Connect WCV-EJN extender Local Unit RCA R/L audio
input connector with audio cable from DVD player
4. Connect the WCV-EJN extender Local and Remote Unit
with CAT.5 cable.
5. Connect WCV-EJN extender Remote Unit RCA
connector with RCA male to male cable from TV.
6. Connect WCV-EJN extender Remote Unit RCA R/L
audio output connector with audio cable from TV/audio
amplifier.
7. Turn on the TV and DVD player and audio amplifier.
-2-
