Resolution

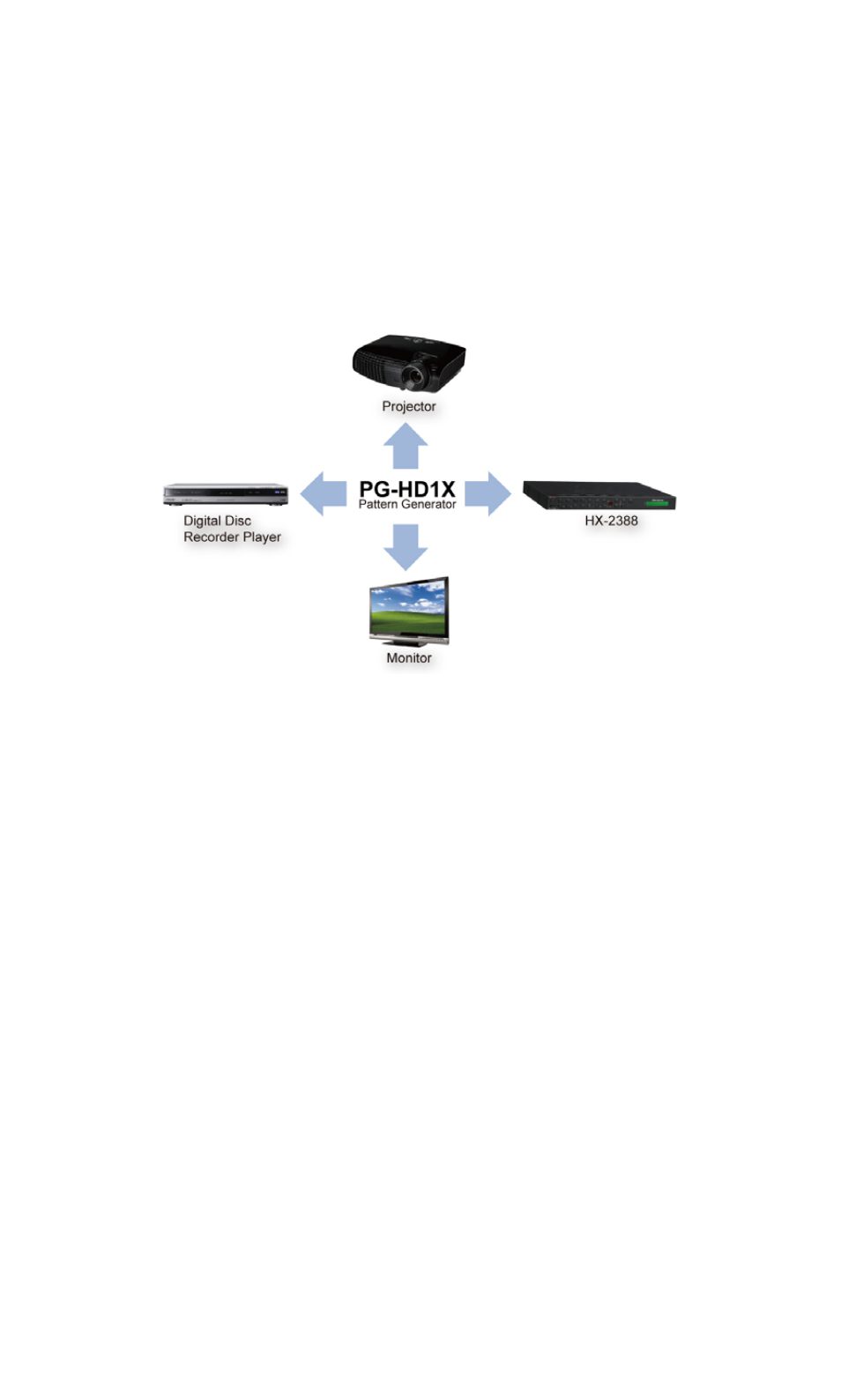

ƒ Using to test and calibrate a TV/Monitor.
ƒ Using to test and calibrate an SDI image input device.
ƒ Using to test and maintain studio equipment as monitors,
cabling and recording equipment.
ƒ Using to test the arrangement of the circuit layout during
the process of construction.
Features
ƒ Intelligent functionality.
ƒ Built-in HD-SDI Signal Generator
ƒ Video Output: Dual SDI Output.
ƒ Support total 7 timings. (up to 1080p@60Dual Link).
ƒ Cost-down and single interface and easily to use.
ƒ Portable design, inside 9.0Volts Alkaline battery.
ƒ Provide total 8 video patterns, Include: GRID_16x12,
COLOR_GRID, BLOCK 16x12, GRAY_8,
COLORGRAY64, COLORBAR, WINDOW, RGB.
ƒ Embedded audio tone is a 1KHz.
