Wiring information & coding – Avlink VGA-ED4XW User Manual
Page 8

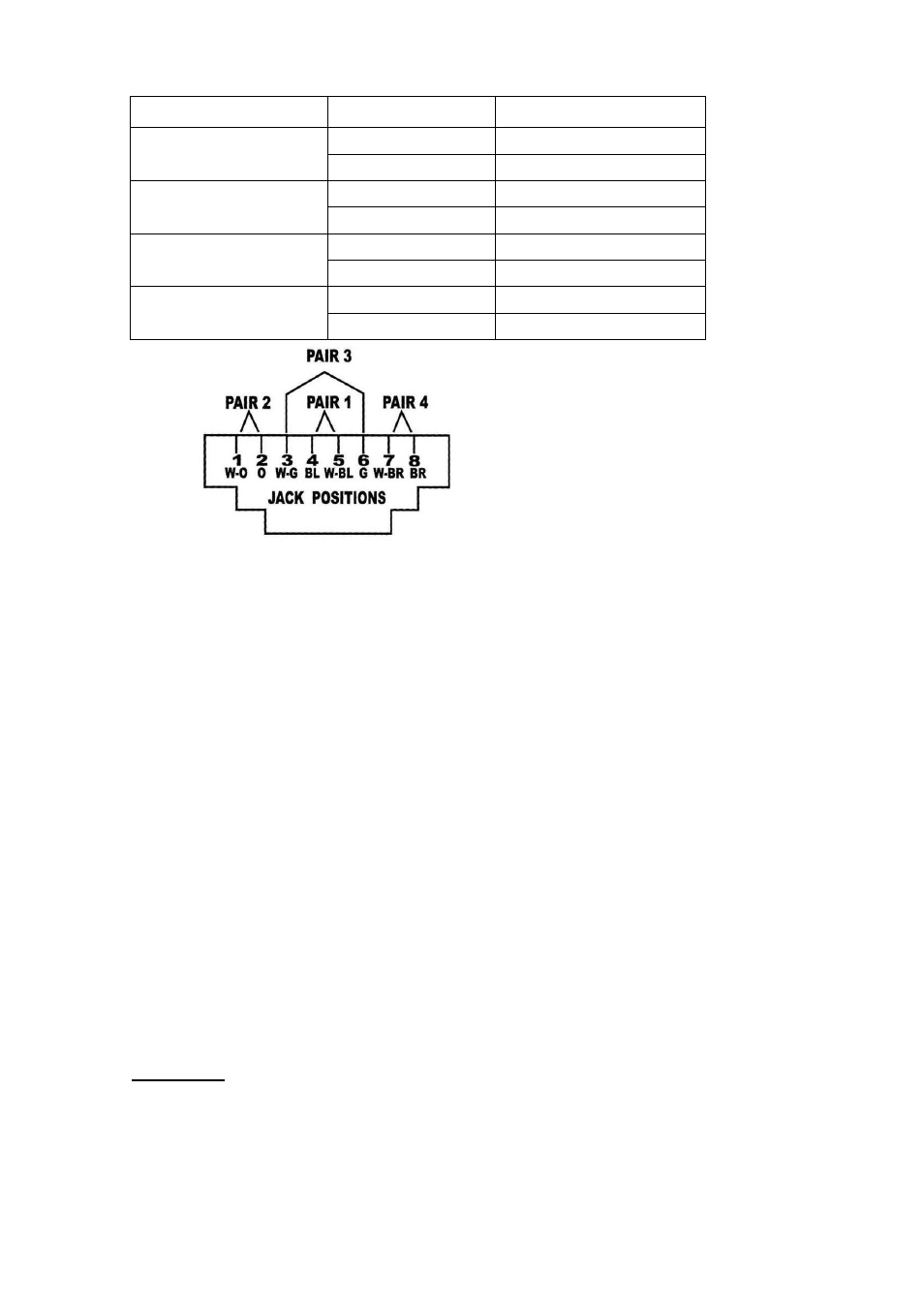

Wiring Information & Coding
Conductor Identification RJ45 Pin Assignment Color Code for Conductor
5
White-Blue
Pair 1
4
Blue
1
White-Orange
Pair 2
2
Orange
3
White-Green
Pair 3
6
Green
7
White-Brown
Pair 4
8
Brown
© C&C TECHNIC TAIWAN CO., LTD. All rights reserved.
Trademarks:
All the companies, brand names, and product names referred to this manual are the
trademarks or registered trademarks belonging to their respective companies.
