Appendix b: connectors/pinouts -3, Port connector pinouts -3, Table 4: 10 pin port header pinouts -3 – Connect Tech DFlex-4/104 User Manual

Page 53: Appendix b: connectors/pinouts

Text mode
Original mode

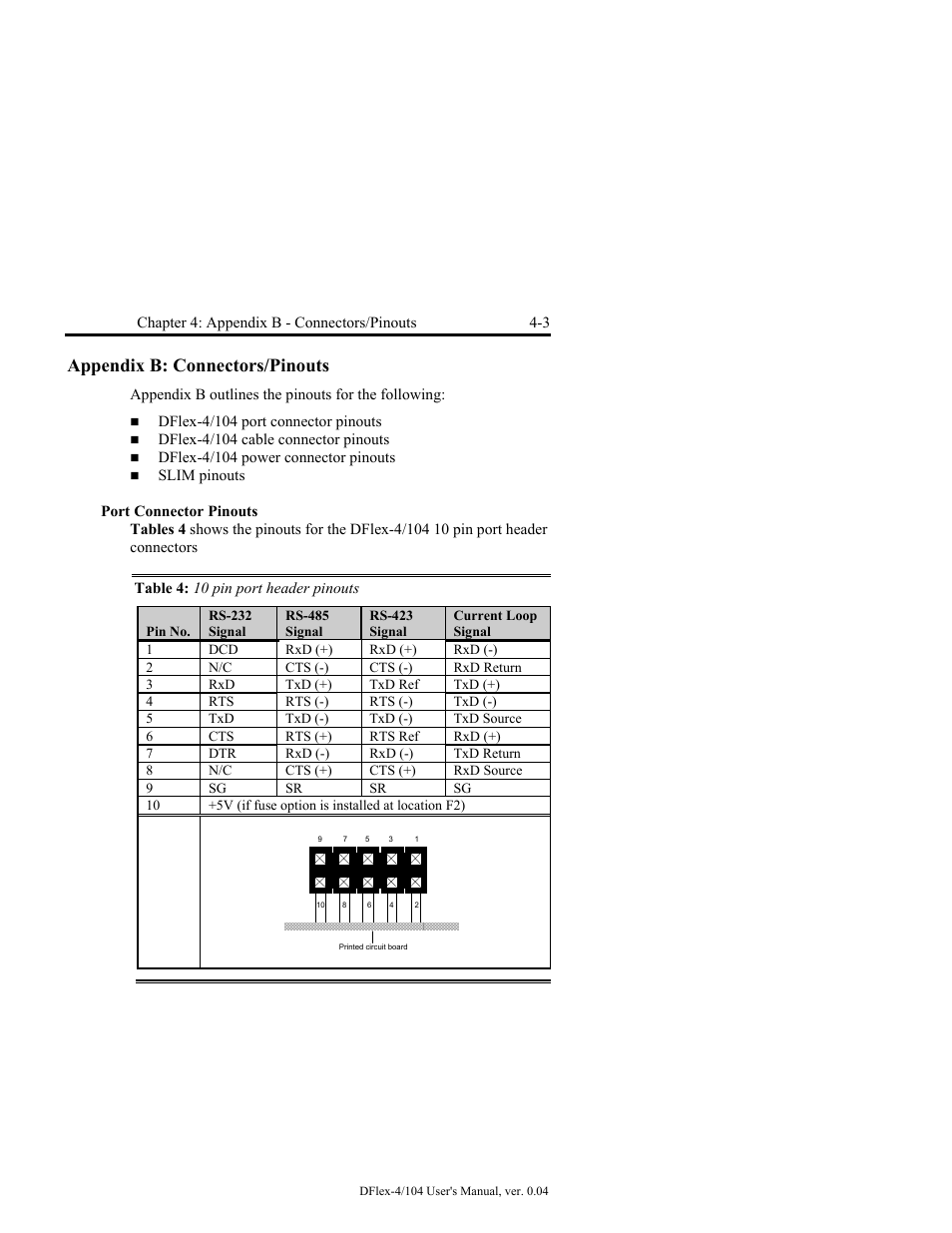

Appendix b: connectors/pinouts -3, Port connector pinouts -3, Table 4: 10 pin port header pinouts -3 | Appendix b: connectors/pinouts | Connect Tech DFlex-4/104 User Manual | Page 53 / 82
