Installation

1. Turn off the PC and DVI monitor.
2. Connect the DVI extension cable between the PC and

the “DVI IN” port of DVI-ELW.

3. Connect the DVI extension cable between the DVI

monitor and the “DVI OUT” port of DVI-ERW.

4. Connect the CAT.5 cables between the DVI-ELW “LINK”

port and the DVI-ERW “LINK” port of extender.

5. Connect the power cord and turn on the extender.
6. Turn on the PC and DVI monitor.

IR Receiver Cable Directions:

Put it into the DVI-ERW “IR2 IN” port and place the IR
Receiver Cable, so that you can point to it easily with your
IR remote controller.

IR Blaster Cable Directions:

Plug IR blaster cable plug into DVI-ELW “IR OUT” port, it
sits in front of the

device

receiver’s IR sensor, which is

located on the front-panel.

Additional Options

Select any additional options you may require.
1. IR Receiver Cable

GND

+V

Sig


2. IR Blaster Cable

NC

P+

N-

-3-

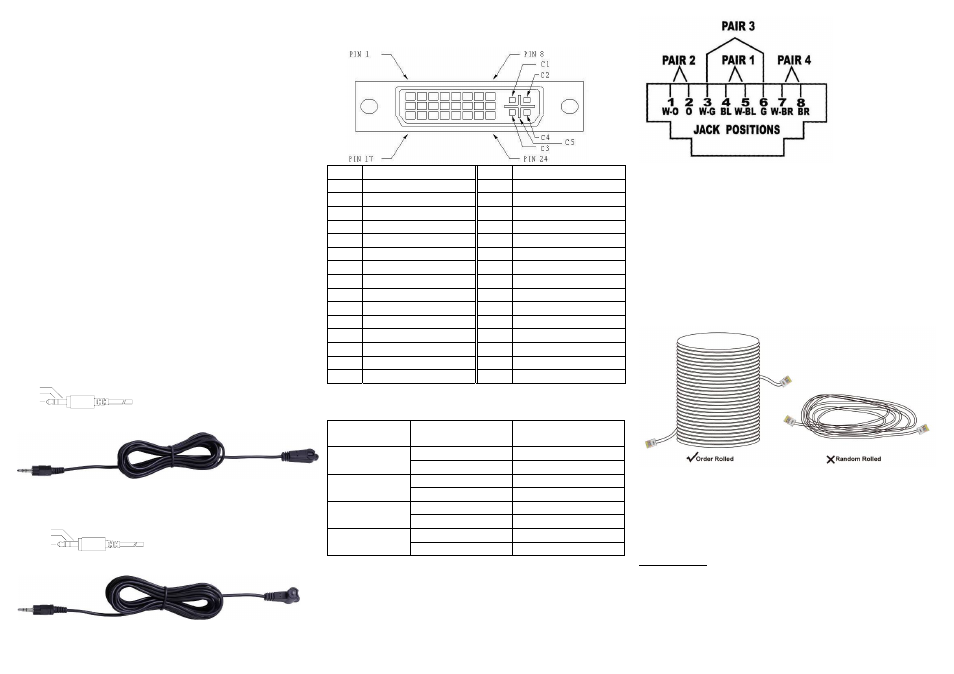

Technical Specifications Output Signal

Pin #

Signal

Pin #

Signal

1

T.M.D.S Data 2-

16

Hot Plug Detect

2

T.M.D.S Data 2+

17

T.M.D.S Data 0-

3

T.M.D.S Data 2/4 Shield

18

T.M.D.S Data 0+

4

T.M.D.S Data 4-

19

T.M.D.S Data 0/5 Shield

5

T.M.D.S Data 4+

20

T.M.D.S Data 5-

6

DDC Clock

21

T.M.D.S Data 5+

7

DDC Data

22

T.M.D.S Clock Shield

8

Analog Vert. Sync

23

T.M.D.S Clock+

9

T.M.D.S Data 1-

24

T.M.D.S Clock-

10

T.M.D.S Data 1+

11

T.M.D.S Data 1/3 Shield

C1

Analog Red

12

T.M.D.S Data 3-

C2

Analog Green

13

T.M.D.S Data 3+

C3

Analog Blue

14

+5V Power

C4

Analog Horz Sync

15

GND

C5

Analog Ground

Wiring Information & Coding

Conductor

Identification

RJ45 Pin

Assignment

Color Code for

Conductor

5 White-Blue

Pair 1

4 Blue
1 White-Orange

Pair 2

2 Orange
3 White-Green

Pair 3

6 Green
7 White-Brown

Pair 4

8 Brown





-4-

Note

However sometimes, especially in demonstrations or in a
lab environment, the cable is rolled randomly in small turns
for convenience. The randomly rolled UTP cable suffers
additional signal impairments (compared to a straight cable)
and therefore the maximal operating reach might be
reduced.
Rolling a CAT5E cable around a 70cm fixed diameter
plastic drum has just a minor effect on the FEXT (Far End
Cross Talk) when compared to a fully stretched cable.
