Support VGA mode
Analog Resolution Frequency(Hz)
VGA 640x480 60 / 72 / 75 / 85
VGA 720x400 70 / 85
SVGA 800x600 56 / 60 / 72 / 75 / 85
WVGA 848x480 60
XGA 1024x768 60 / 70 / 75 / 85
SXGA 1152x864 75
SXGA 1280x768 60RB / 60 / 75 / 85
WXGA 1280x800 60
SXGA 1280x960 60 / 85
SXGA 1280x1024 60 / 75 / 85
WXGA 1360x768 60
SXGA+ 1400x1050 60RB / 75
WXGA+ 1440x900 60
SXGA+ 1440x1050 60
UXGA 1600x1200 60
WSXGA+ 1680x1050 60
1080P 1920x1080 60
WUXGA 1920x1200 60RB
720P 1280x720 60
Note

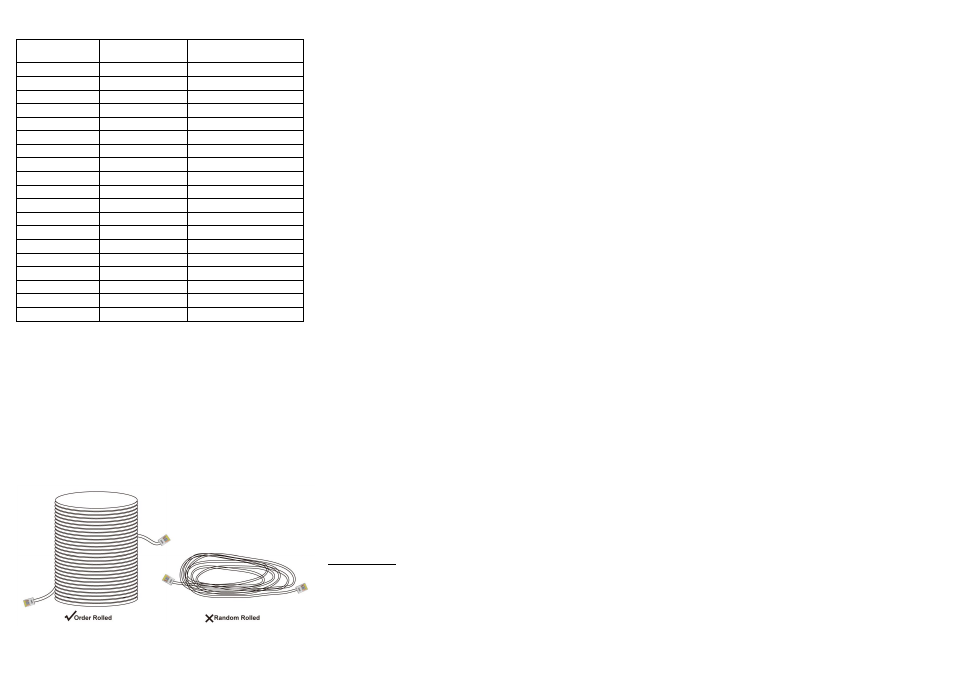

However sometimes, especially in demonstrations or in a
lab environment, the cable is rolled randomly in small turns
for convenience. The randomly rolled UTP cable suffers
additional signal impairments (compared to a straight cable)
and therefore the maximal operating reach might be
reduced.
Rolling a CAT5E cable around a 70cm fixed diameter
plastic drum has just a minor effect on the FEXT (Far End
Cross Talk) when compared to a fully stretched
cable.
