DIP Switch Settings
Local SW
Pin1,Pin2 De-Emphasis
Level in mVpp
De-Emphasis
Level in dB
On, On 1200 0
On, Off 850 -3
Off, On 600 -6
Off, Off 426 -9
Pin3: Equalization
On: Enables
Off: Disables
Remote SW
Pin1,Pin2,Pin3
EQ (dB)
On, On, On 9
On, On, Off 14
On, Off, On 18
On, Off, Off 21
Off, On, On 24
Off, On, Off 26
Off, Off, On 28
Off, Off, Off 30
Test Equipment: SONY KLV-40W300A
SONY PS3
HDMI Cable 1m x2
480p/720p/1080i 12Bit
(Belden 1583A)
Cable Distance
Local SW
Pin1, Pin2, Pin3
Remote SW
Pin1, Pin2, Pin3
< 40m Off, Off, Off On, Off, Off
> 40m Off, Off, On Off, Off, On
1080p 12Bit
(Sanwa Cat.6e)
15m On, On, On On, On, On
-3-
Test Equipment: SONY KLV-40W300A
DIGITAL VIDEO GENERATOR VG-859B
HDMI Cable (V1.3) 1m x2
EIA640x480p@60 8Bit
(Belden 1583A)
Cable Distance
Local SW
Pin1, Pin2, Pin3
Remote SW
Pin1, Pin2, Pin3
60m On, On, On Off, Off, Off
EIA1280x720p@60 8Bit /EIA1920x1080i@60 8Bit
(Belden 1583A)
Cable Distance
Local SW
Pin1, Pin2, Pin3
Remote SW
Pin1, Pin2, Pin3
< 40m Off, Off, Off On, Off, Off
> 40m Off, Off, Off Off, Off, Off
EIA1920x1080p@60 8Bit
(Belden 1583A)
10m On, On, Off On, On, On
20m On, On, Off On, On, Off
30m On, On, On On, Off, Off
Note:
ƒ Test equipment for reference only.
ƒ The quality of CAT.5 cable which the video port used will
influence the transmit distance. DDC port can use the
general CAT.5 Cable.

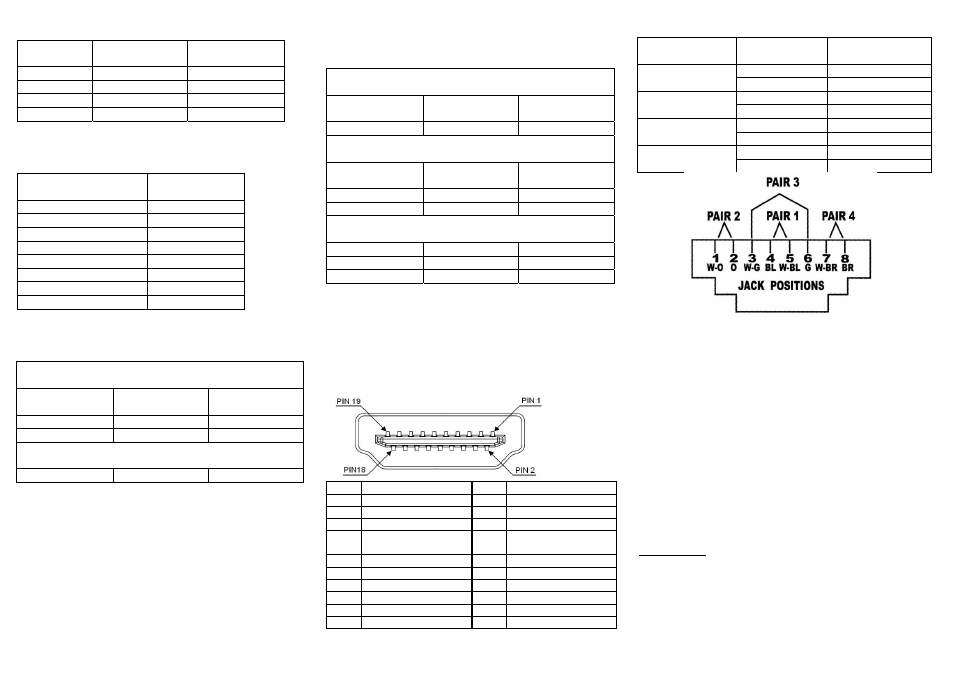

Technical Specifications
Input/Output Signal
Pin # Signal Pin # Signal
1 TMDS Data 2+ 11 TMDS Clock Shield
2 TMDS Data 2 Shield 12 TMDS Clock -
3 TMDS Data 2- 13 CEC
4 TMDS Data 1+ 14
Reserved
(N.C. on device)
5 TMDS Data 1 Shield 15 SCL
6 TMDS Data 1- 16 SDA
7 TMDS Data 0+ 17 DDC/CEC Ground
8 TMDS Data 0 Shield 18 +5 Power
9 TMDS Data 0- 19 Hot Plug Detect
10 TMDS Clock+
-4-
Wiring Information & Coding
Conductor
Identification
RJ45 Pin
Assignment
Color Code for
Conductor
5 White-Blue
Pair 1
4 Blue
1 White-Orange
Pair 2
2 Orange
3 White-Green
Pair 3
6 Green
7 White-Brown
Pair 4
8 Brown
