English-3

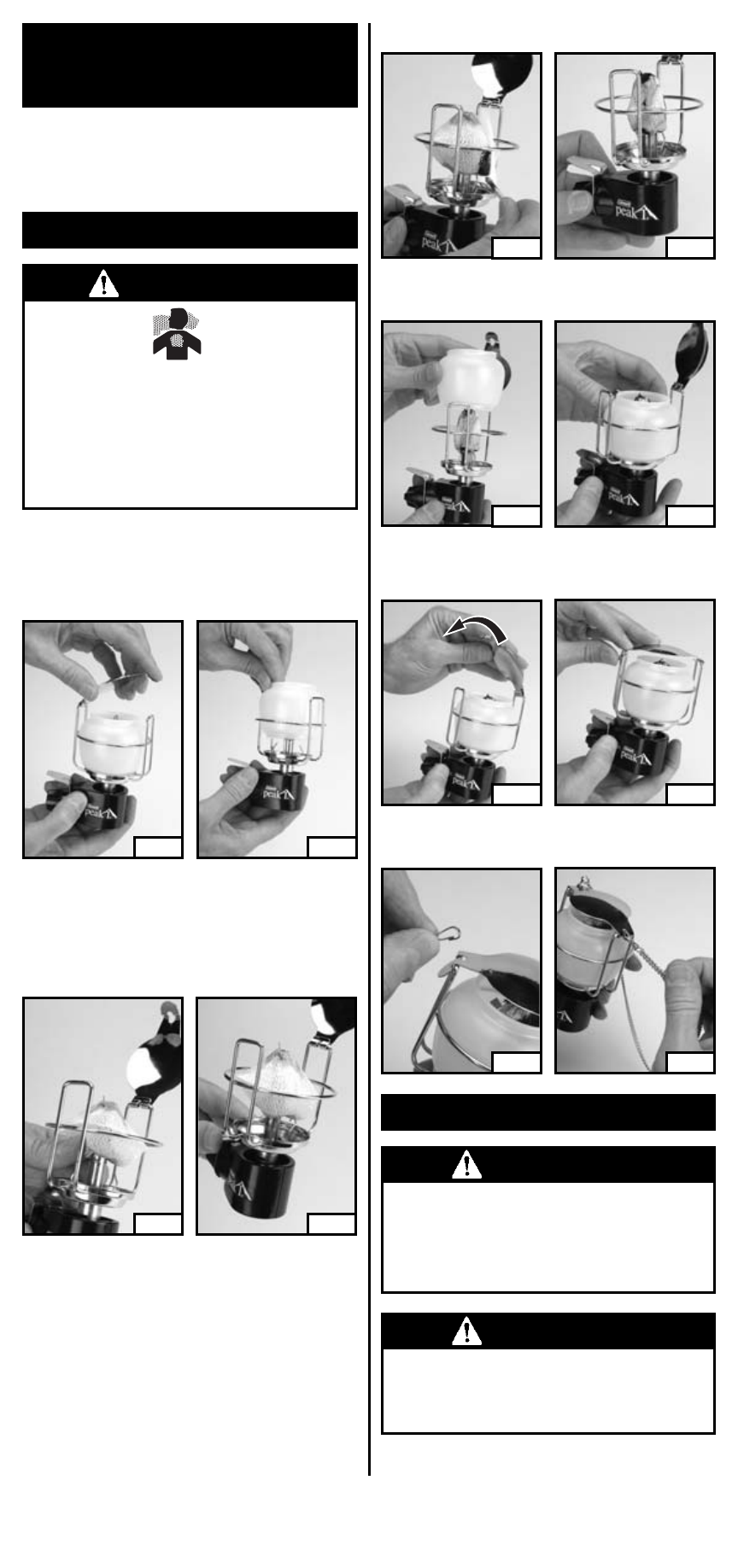

To Set Up
Technical
Characteristics
Input: 2,000 BTU/h
Category: Unregulated LPG
Fuel: 7 3/4 oz. disposable
butane/propane mix cylinders
DANGER
• CARBON MONOXIDE HAZARD
• For outdoor use only.
• Never use inside house, camper, tent, vehicle
or other unventilated or enclosed areas. This
lantern consumes air (oxygen). Do not use in
unventilated or enclosed areas to avoid
endangering your life.
■ Take lantern outdoors away from ignition
sources.
■ Lift COVER. (Fig. 2)
■ Remove GLOBE. (Fig. 3)
Fig. 2 Fig. 3
■ Install MANTLE. Make sure small hole is at top
and larger hole is at bottom. Colored part is up.
(Fig. 4)
■ Make sure MANTLE is properly positioned with
top and bottom in grooves of burner. (Fig. 5)
■ Ignite MANTLE. (Fig. 6 and 7)
Fig. 4 Fig. 5
Fig. 6 Fig. 7
■ After mantle has burned, install GLOBE and
seat GLOBE in position. (Fig. 8 and 9)
Fig. 8 Fig. 9
To Light
WARNING
If you smell gas:
1. Do not attempt to light appliance.
2. Extinguish any open flame.
3. Disconnect from fuel supply.
4. Call 1-800-835-3278.
WARNING
• Replace any mantle with a hole in it. A hole
can cause lantern to overheat and create a
hazard. Never operate lantern without
heat shield.
■ Close COVER. (Fig. 10 and 11)
Fig. 10 Fig. 11
■ Attach CHAIN as shown. (Fig. 12 and 13)
Fig. 12 Fig. 13
