Installing the Modules
2-4
Installing the EPIM
To install an EPIM:
1. Remove the coverplate or the EPIM (whichever applies).
2. Slide your new EPIM into place, making sure the connectors on the rear of the
module and inside the HUB attach properly. Refer to Figure 2-3.
3. Install the mounting screw.

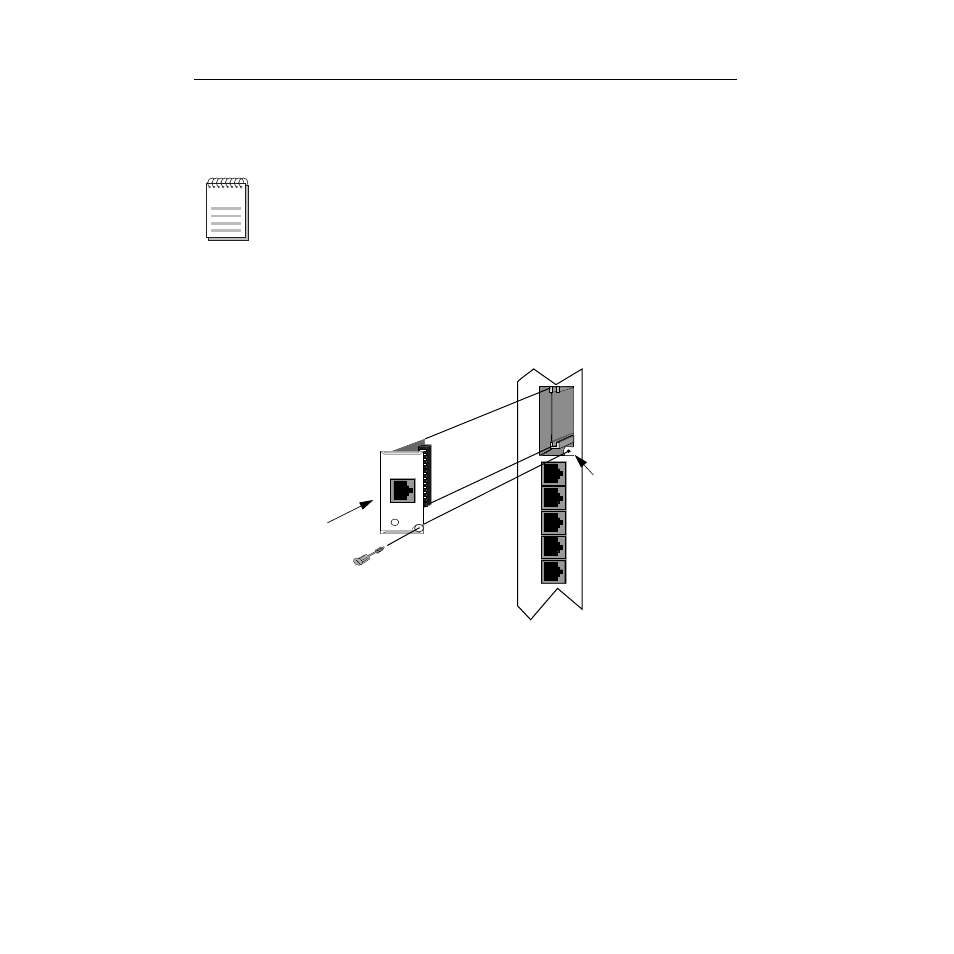

Figure 2-3. Installing an EPIM
When removing an EPIM, make sure to pull the module straight out so as not to
damage the connector.
NOTE
EPIM
Mounting
Screw
