Control Module Operation
M-21 Control Remote
The M-21 is a 2 meter wired multi-function remote control with 5-pin XLR connector for
ANTARI Fog Machine models M-8 Its interface allows operator to customize fog machine
functions by adjusting fogging duration, interval and volume. Its LCD displays current
operating parameters, which are automatically stored in non-volatile memory, allowing the
machine to be turned off without losing function settings.
1
2 3
OF F
Setting time intervals for timer operation
Press the button FUNCTION until the display indicates »Interval Set«. Use the buttons UP
and DOWN to adjust the intervals between the individual fog outputs in timer mode within
1. Function-button Sub-menus:
 Interval Set
 Duration Set
 Timer Out
 Volume Out
 DMX 512 Add
 Fluid Sensor
 Quick Start
2. Up / Down button
3. Timer button
4. Volume button
5. Manual (OFF) button

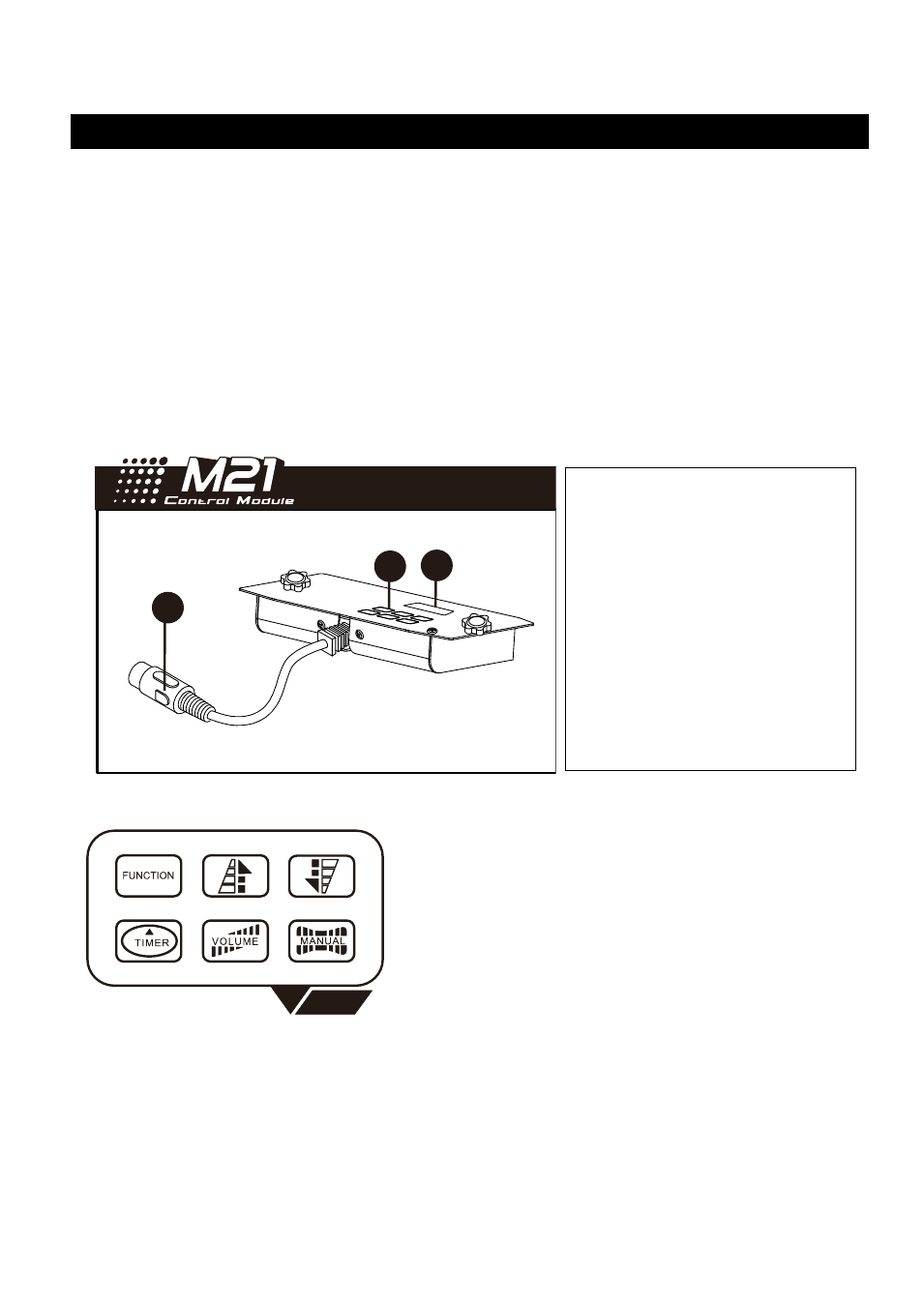

1. 5-pin XLR
(Cable Length：2m)
2. LCD-Dispaly
3. Fuction Buttons
