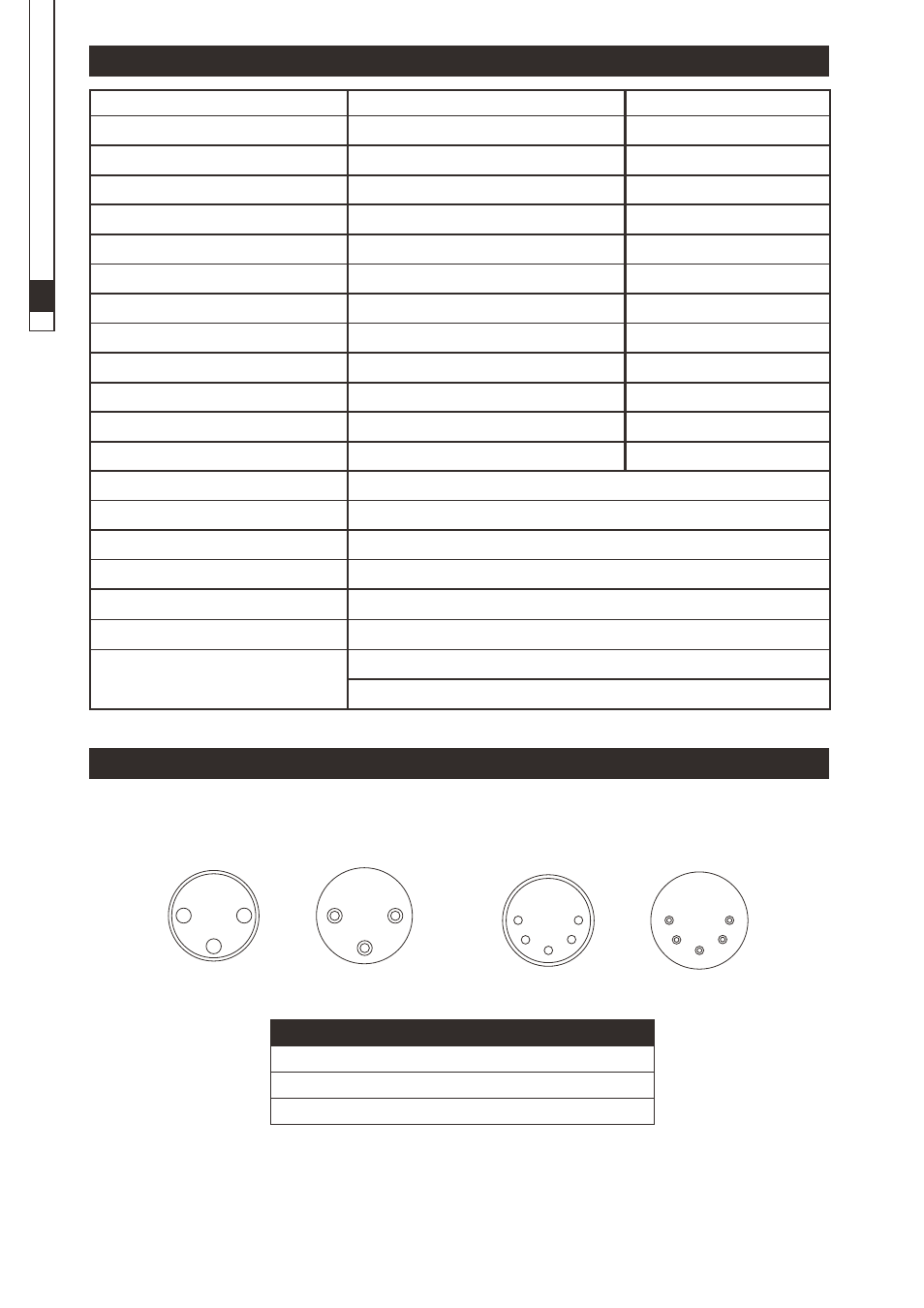

-Technical Specifications
Power 100~120 V AC, 50~60 Hz 220~240 V AC, 50~60 Hz
Power consumption (compressor) 750 W 600 W
Refrigerant 1.75 R-404A, lb R-404A, 1.75 lb
Rated current 6.7 A 3.2 A
Start current 61 A 21 A
Capacity 3200 BTU/ hr 2745 BTU/ hr
Compressor's breaker 15 A, 250 V 10 A, 250 V
Heater 1450 W 2500 W
Output 12,000 cu.ft/min. (340 m³/min.) 12,000 cu.ft/min. (340 m³/min.)
First heat-Up time 24 min. 12 min.
Fog machine's breaker 15 A, 250V 15 A, 250V
Tank capacity 10 liters 10 liters
Fluid consumption rate 11 min./liter (high output) 11 min./liter (high output)
Remote included D-20 (timer controller with LCD, 2 m cable)
Accessory included 3 m fog conducting hose
Weight 120 kg
Dimensions (LxWxH) 780 x 608 x 686 (mm)
Liquid used Antari FLR (Light Fog Liquid) only
Number of DMX channels 1
Additional information Self contained unit -- no CO²/dry ice required
Floor-mount installations (4 wheels)
DNG-200
User Manual
06
English
- DMX Connector Pin Assignment
The machine provide 3 or 5 pin XLR connector for DMX connection. Diagram below
indicate pin assignment information
Pin Function
1
2
3 Ground
Data -
Data +
2 1
3 5 1
2 4
3
1 5
4 2
3
3 pin XLR 5 pin XLR
1 2
3
