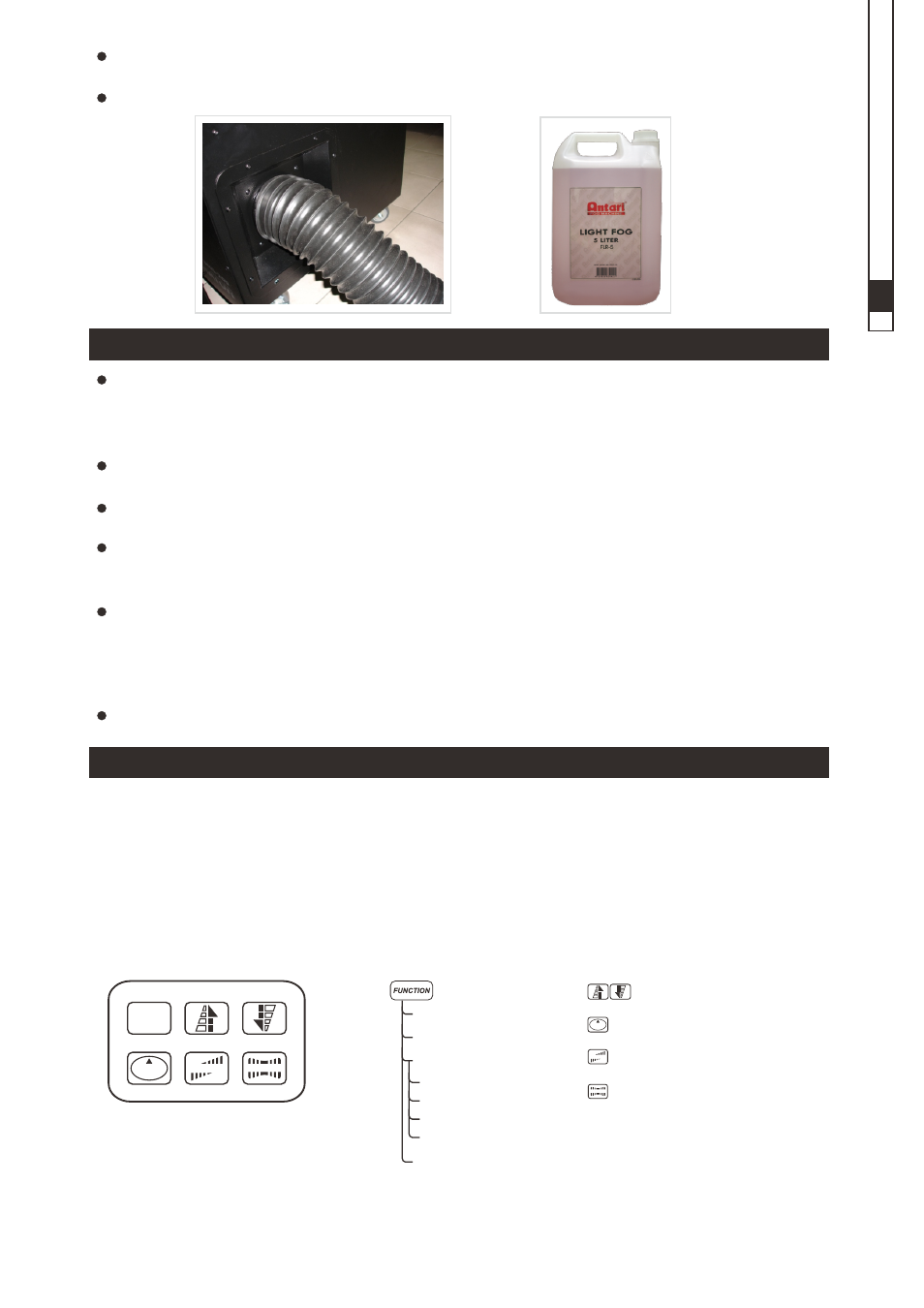

Connect the machine with the black fog conducting hose; it is a three-meter pipe. The
length of the pipe can be adjusted to fit the actual need. (refer to figure 4)
Fill Antari FLR light fog fluid to the tank, tighten the tank cap. (refer to figure 5)
Figure 4 Figure 5
Connect the power cord to a grounded outlet, press down two sets of power switches
located at the back side of the machine. Please press the power switch of the
compressor below first and then the power switch of the fog machine. The warm-up
process is started. The LCD screen on the D-20 controller will show "Warming up”.
While the unit is warming up, fog output will not be possible yet. Please wait till the LCD
screen shows "Ready To Fog".
Program the necessary menu settings with the control panel of the D-20 controller.
(refer to chapter D-20 controller).
The DNG-200 is equipped with a DMX512 system. 3-pin and 5-pin DMX connectors
each are located at the back panel of the machine for optional use. (refer to chapter
DMX512 settings)
When operating the machine for the first time, wait until the controller's LCD screen
shows "Ready To Fog”. Actuate the button Manual for a few seconds to initiate fog
output from the machine. Thus the air in the liquid pipe is drained out. Once the fog
comes out smoothly, the D-20 controller can be set. If the machine is used infrequently,
please follow this procedure every time it is used to drain out the air.
The heater average temperature of the DNG-200 is 220°C.
-Operation
The D-20 controller is equipped with a 2-meter line, a 5-pin XLR connector, and an LCD
screen displaying all operation statuses of the fog machine. The interface allows the
operator to customize fog machine functions by adjusting the fogging duration, interval,
and volume as well as the DMX address. There are six buttons on the control board. All
current operating parameters are automatically stored in non-volatile memory, allowing
the machine to be powered down without losing function settings.
-Configuration of the buttons
-D-20 LCD Screen Controller
FUNCTION
VOLUME TIMER MANUAL
English
1.
Interval Set
Duration Set
Volume Out
Nonstop Burst
High Volume
Medium Volume
Low Volume
DMX 512 Add
2. UP and DOWN
3. TIMER
4. VOLUME
5. MANUAL
TIMER
VOLUME
MANUAL
