bladder, bulb, and the ADFLOW ™ valve), 8 foot length
coiled tubing, luer connectors, mounting hardware,
and operating instructions. The DIAGNOSTIX™ 752M
is mounted on a height adjustable, Spider-Leg ™ 5 leg
mobile stand. The DIAGNOSTIX™ 750D is mounted
on a desktop stand.

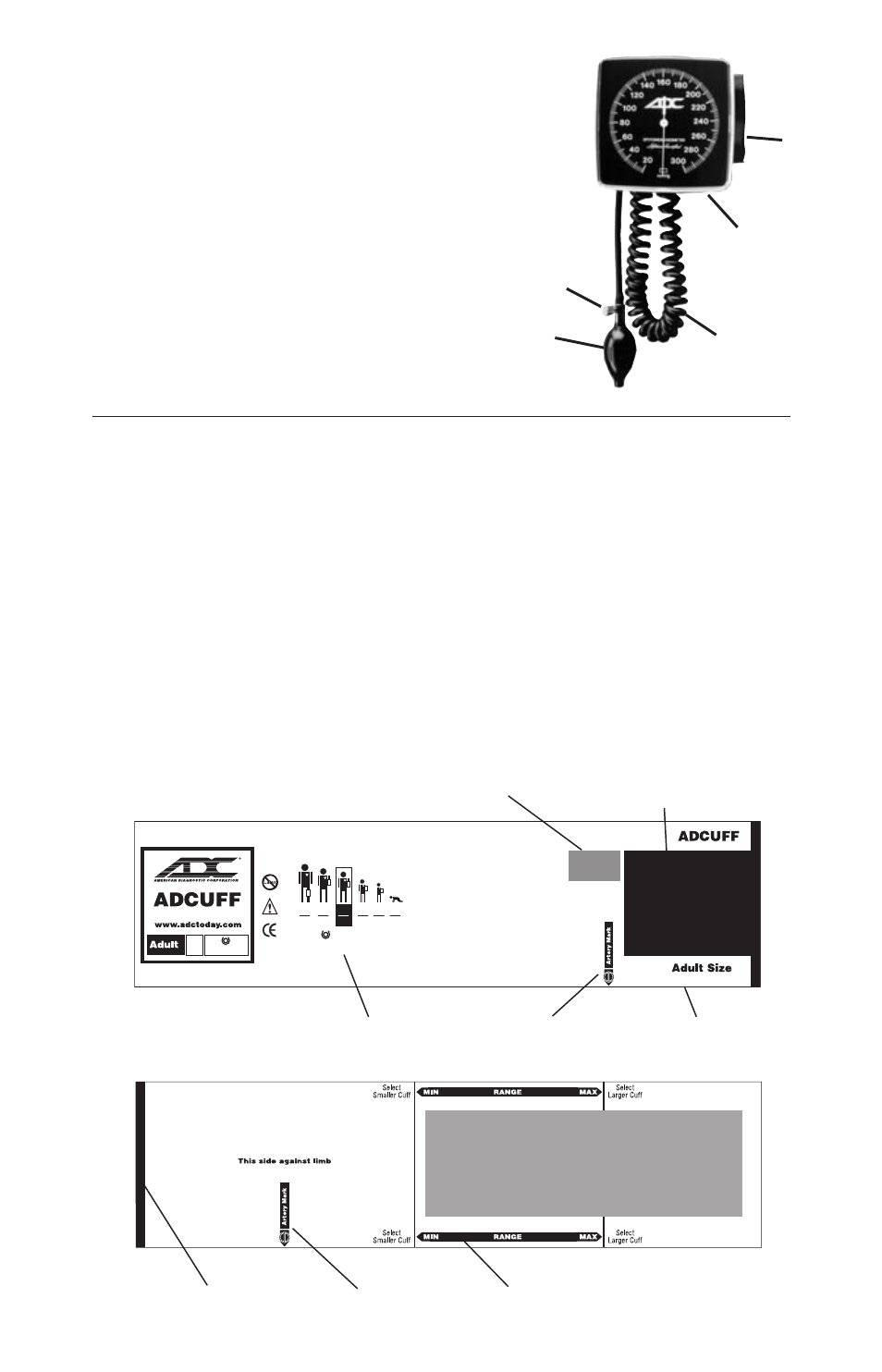

To assemble the inflation system, connect coiled tubing to
air inlet nipple at bottom of gauge. Insert male luer adapter
on bladder tubing into female receptacle at free end of
coiled tubing. Store folded inflation system in swivel
bracket behind gauge on 750W and 750D or in integral
basket on 752M.
Adcuff TM Intended Use:
ADC ® blood pressure cuffs are noninvasive and are intended for use with manual and auto-
mated noninvasive blood pressure measurement devices.
ADC ® ’s Size Guide™ marking system assures use of correct cuff size and proper cuff align-
ment. Printed Index and Range markings and applicable limb range (in cm) allow easy iden-
tification of the correct cuff size. An artery mark printed on both sides indicates bladder
midpoint for correct cuff positioning. A convenient nylon gauge hang tab permits flexible
use with either pocket aneroids or mercury manometers. Hook and loop adhesive surface
provides a snug, infinitely variable fit and is designed to withstand a minimum of 30,000
open/close cycles.
Cuff
Coiled Tubing
Bulb
Valve
Manometer
Index Line
TM
13
T
12
X
10
SA 9
C 7
I
11
A
Adult - 11
23-40 cm
11
TM
23-40 cm
Reusable BP Cuff
11
Gauge Hang
Tab
Bladder Flap Artery Mark Size Icons
Hook & Loop
Closure Adhesive
Range Lines Index Line Artery Mark
Index Line
