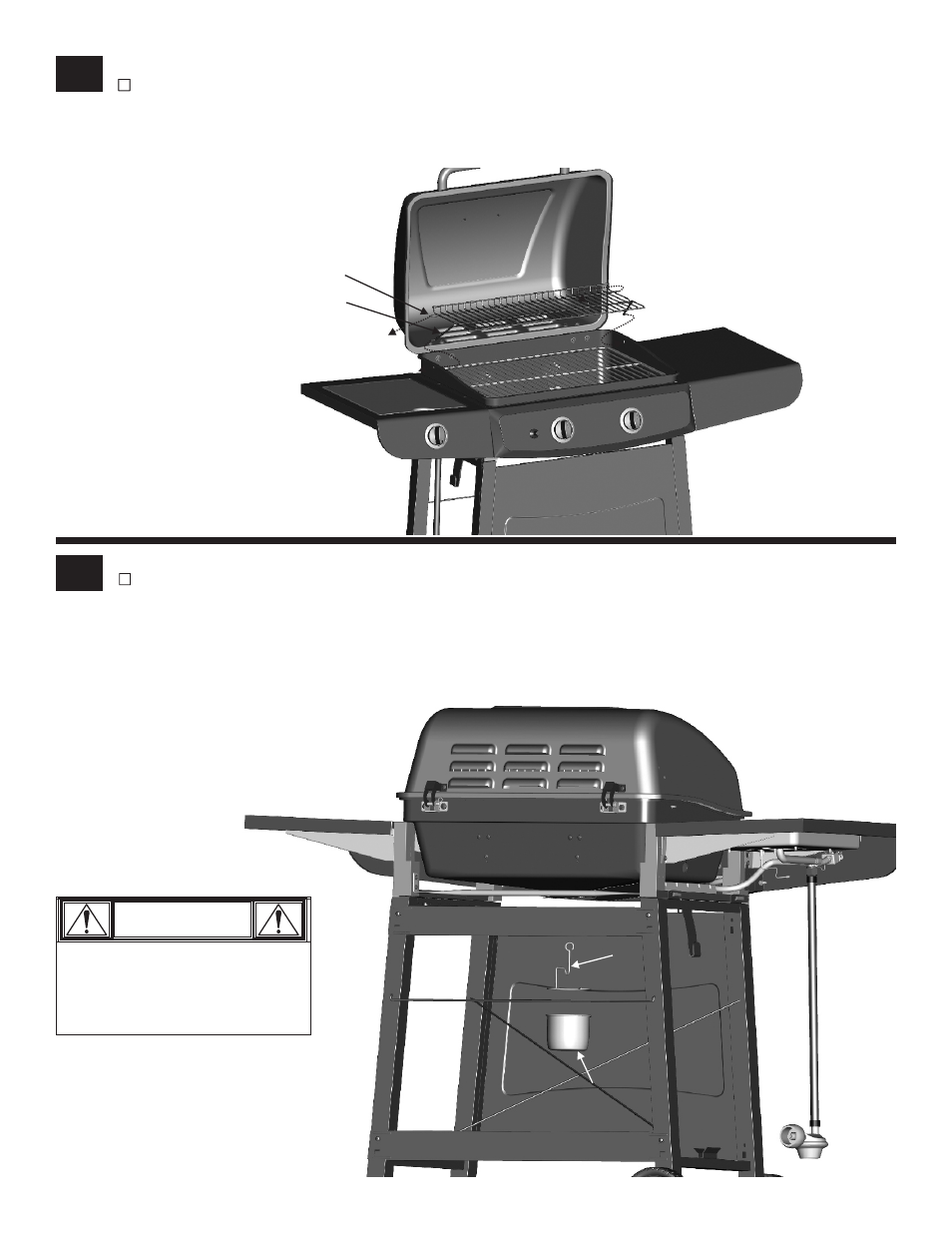

Failure to install grease cup clip
and cup will cause hot grease to
drip from bottom of grill with risk
of fire or property damage.

CAUTION

Grease Cup and Grease Cup Clip
 Hang grease cup clip from bottom of firebox, and place grease cup into grease cup clip.

Grease Cup

Clip

Grease Cup

Swing Away
 Insert ends of swing away pivot wire into holes in sides of grill lid. Insert ends of swing away leg wire into holes in sides

of firebox.

NOTE: Pivot and leg wires, running side-to-side, should be under wires running front-to-back. If pivot and leg wires are on
top. Swing away is installed upside-down.

Pivot Wire

Leg Wire
