Sideburner

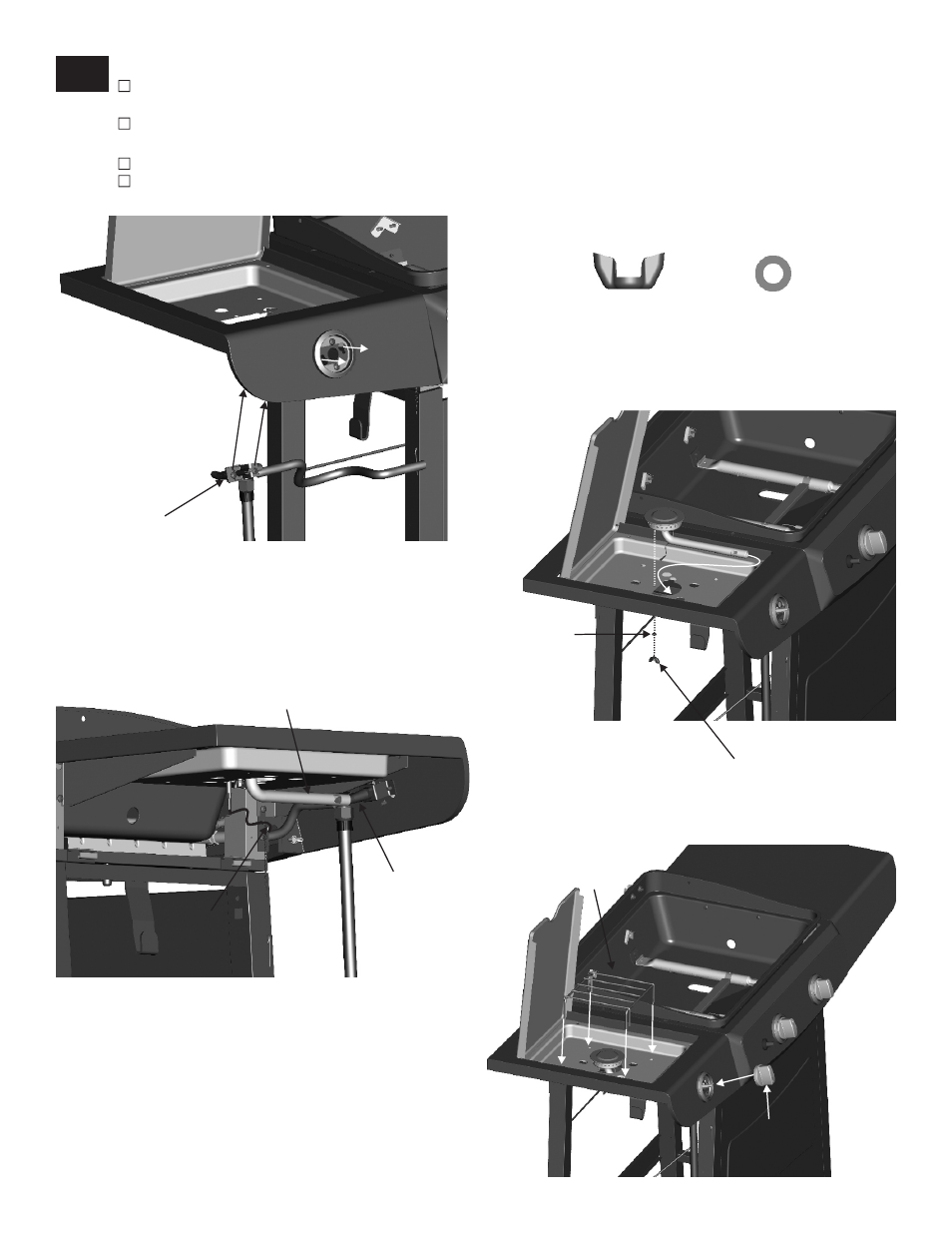

Feed the screws preassembled on sideburner valve brackets into keyhole slots on the fascia, turn it to lock in place, then
tighten the screws (A).
Place sideburner into sideburner drip pan. Make sure sideburner valve is inside sideburner tube. Secure sideburner with
5x9 fiber washer and #8-32 wing nut (B).
Attach sideburner ignitor wire to sideburner electrode (C).
Push control knob onto valve stem. Place sideburner grate onto sideburner shelf (D).
5x9 Fiber Washer
#8-32 Wing Nut
Sideburner Grate
Knob
Sideburner Valve
A
C
D
Sideburner Ignitor Wire
B
Valve
Sideburner Tube
5x9 Fiber Washer
Qty. 1
#8-32 Wing Nut
Qty. 1
