Char-Broil 463742112 User Manual
Page 17
ASSEMBLY
1
2
17

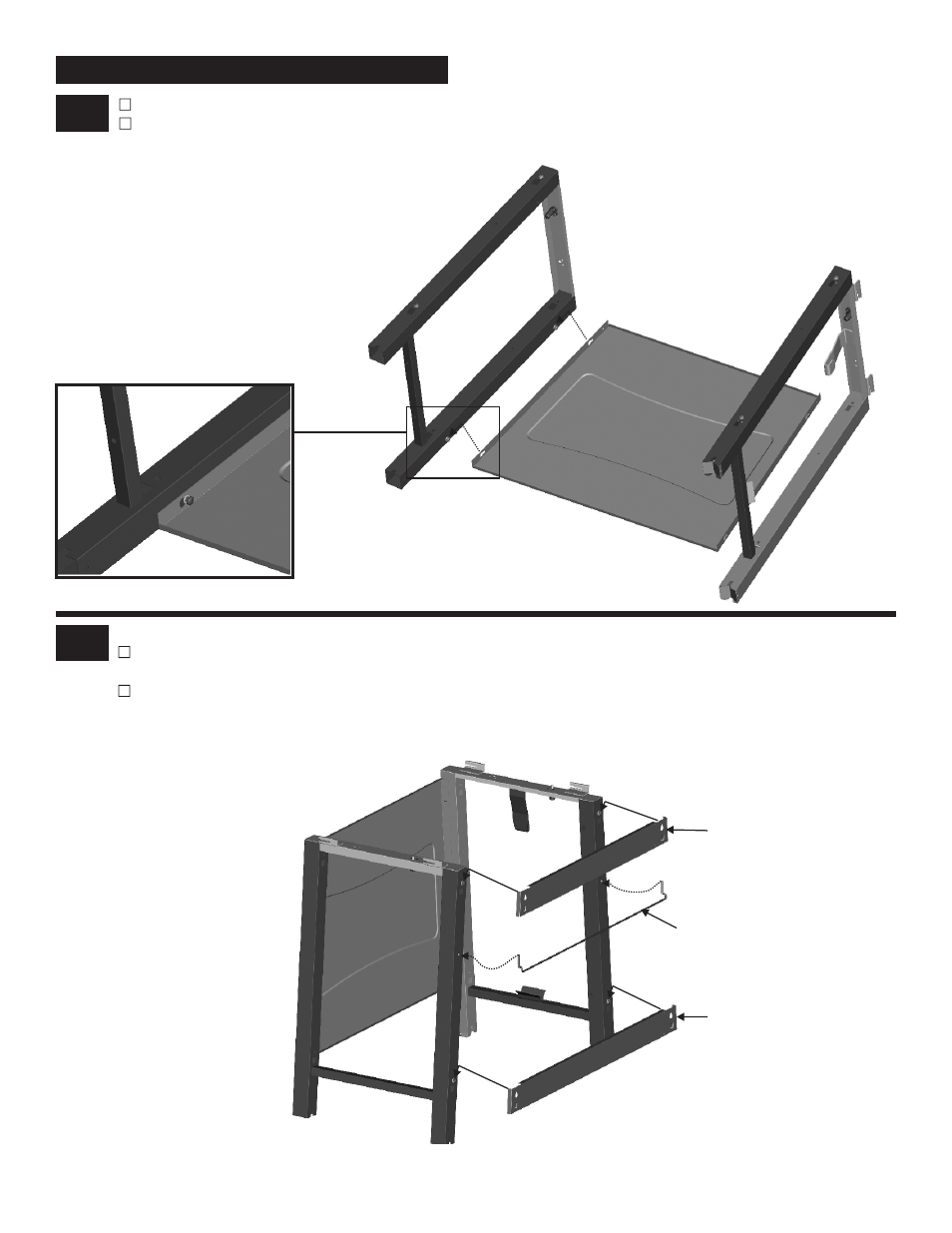

Lay the cart frames down.
Place front panel between cart frames. Hook the holes to the preassembled #10-24x1/2’’ machine screws. Tighten the
screws.
Lower Back Brace, Upper Back Brace and Rear Tank Exclusion Wire
Attach back braces to back of cart by inserting the ribs on back braces into the slots on rear legs, and hooking the upper
holes of back braces to the preassembled #10-24x1/2’’ machine screws. Tighten the screws.
Hook rear tank exclusion wire onto rear of cart.
Upper Back Brace
Lower Back Brace
Rear Tank Exclusion Wire
17
ASSEMBLY
