512
uu Fuses u Fuse Locations
Han
d
lin
g the U
n
expected

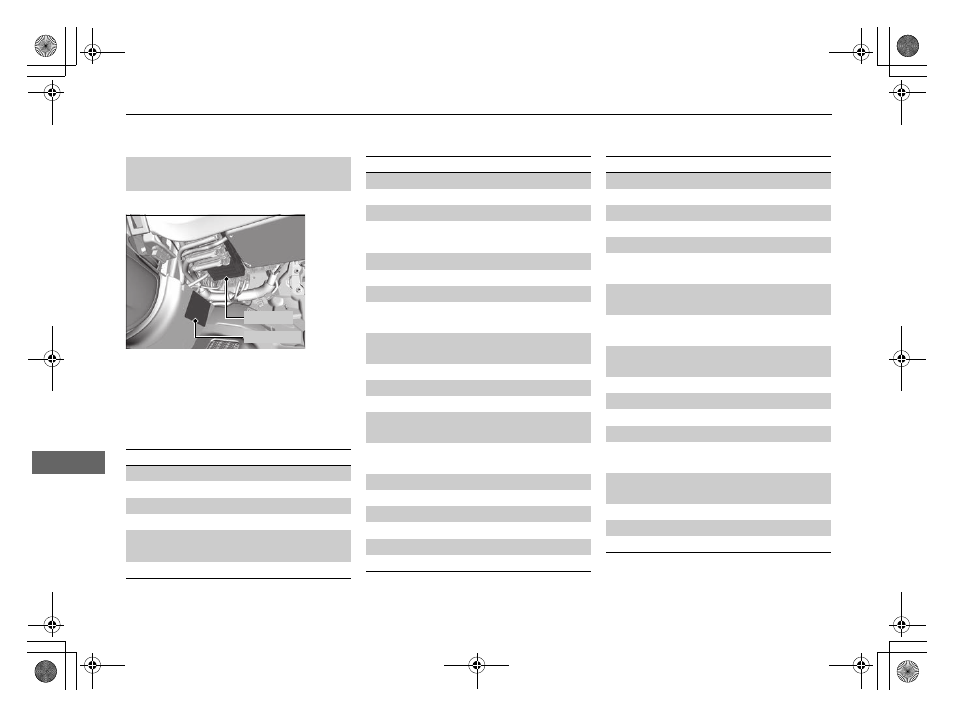

Located under the dashboard.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
■
Circuit protected and fuse rating
■ Type A Driver’s Side Interior
Fuse Box
Fuse Label
Fuse Box
Circuit Protected Amps
1 A/C 7.5 A
2 DRL 7.5 A
3 ST Motor * (7.5 A)
4 − −
5
Meter *1
7.5 A
Auto Dimming Mirror *2
6 SRS (7.5 A)
7 Option 7.5 A
8 MISS SOL (15 A)
9 Fuel Pump 20 A
10
ABS/VSA *1
(7.5 A)
Smart *2
11 Spare Fuse 30 A
12 Wiper 7.5 A
13 ACG 15 A
14
Accessory Power Socket
(Console Compartment)
20 A
15
Driver’s Power Seat
Reclining
20 A
16 Moonroof 20 A
17 AVS/Seat Heaters 20 A
18 − −
19
Passenger’s Side Door
Unlock
10 A
20
Driver’s Side Rear Door
Unlock
10 A
21 Driver’s Side Door Lock (10 A)
22 Passenger’s Side Door Lock 10 A
23 Driver’s Side Door Unlock (10 A)
24 SRS 10 A
25 Instrument Panel Lights 7.5 A
26 ACC Key Lock 7.5 A
Circuit Protected Amps
*1:2WD models
*2:AWD models
27 Parking Lights 7.5 A
28 Lumbar Support 10 A
29 Right DRL 7.5 A
30 Washer 20 A
31 SMART 10 A
32
Driver’s Side Power
Window
20 A
33
Passenger’s Side Power
Window
20 A
34
Rear Driver’s Side Power
Window
20 A
35
Rear Passenger’s Side
Power Window
20 A
36 Driver’s Power Seat Sliding 20 A
37 ACCESSORY 7.5 A
38 − −
39 Left DRL 7.5 A
40
Accessory Power Socket
(Center Pocket)
20 A
41
Rear Driver’s Side Door
Lock
10 A
42 Door Lock 20 A
Rear Seat Heater * (15 A)
Heated Steering Wheel * (10 A)
Circuit Protected Amps
* Not available on all models
