Page 54 Clarke ® Burnishers Operator's Manual
Clarke ®

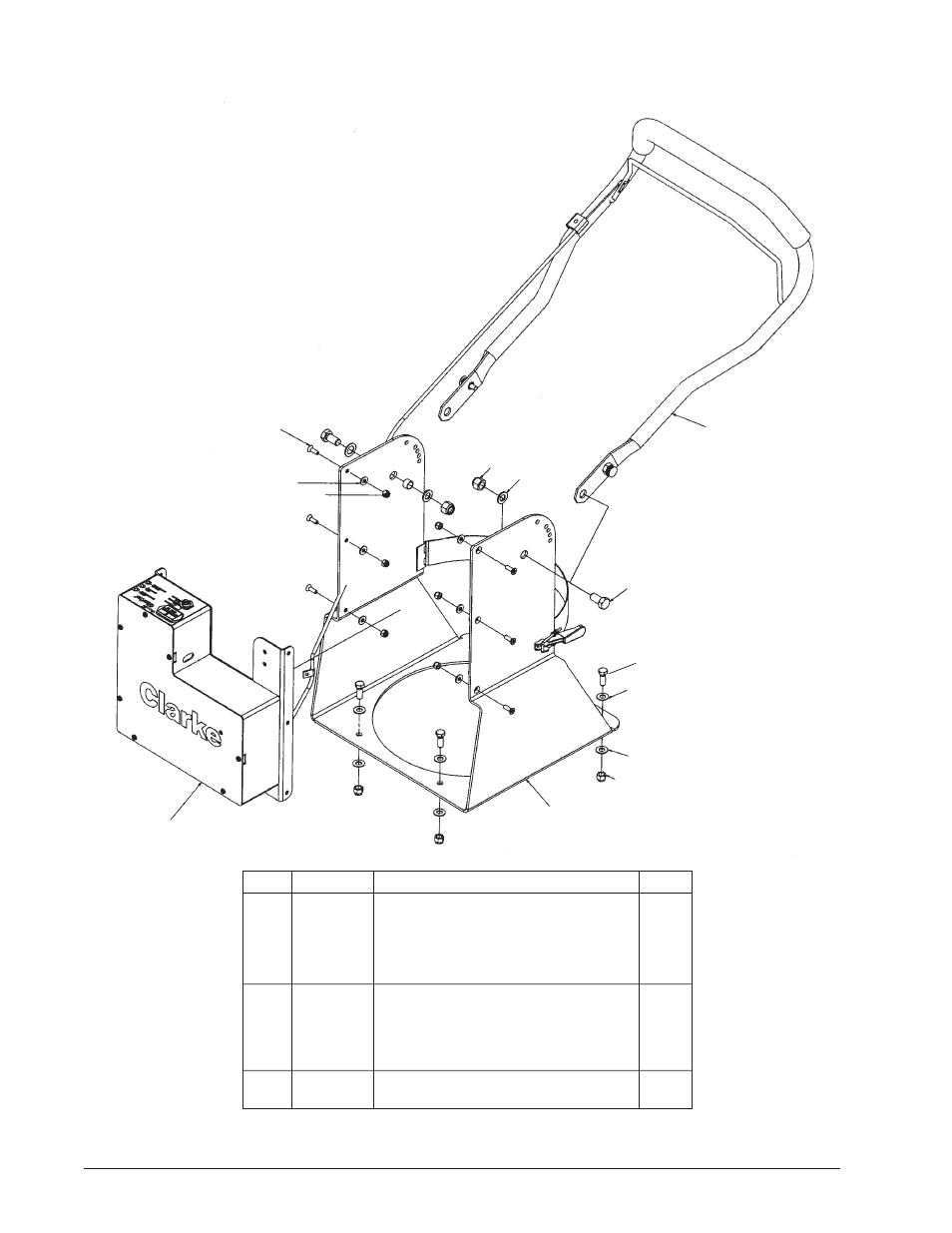

Carrier Assembly and Parts List 5/04
Ref # Part No. Description Qty
1 Page 15 Handle Assembly 1
2 920342 Nut, Lock 3/8-16 2
3 980645 Washer, Flat 3/8 2
6 80269A Bolt, Shoulder 1/2 x 3/8 2
7 980645 Washer, Flat - 3/8 8
8 920342 Nut, Nylock 3/8 - 16 4
9 10487B Carrier Weldment 1
10 Page 16 Control Box Assembly 1
11 81102A Nut, Nylock 1/4 - 20 6
12 980646 Washer, Flat 1/4 6
13 80235A Screw, 1/4 -20 x 5/8 6
14 962288 Screw, 3/8 -16 x 1 4
1
2
3
6
7
7
8
9
10
11
12
13
14
