COLORrail™ IRC User Manual (Rev. 02) Page 7 of 20
Mounting
Orientation
The COLORrail™ IRC may be mounted in any position, provided there is adequate
room for ventilation around it.
Rigging
Be sure that the structure or surface onto which you are mounting this product can
support its weight. Please see the “Technical Specifications” section of this manual
for weight information.
Make sure to mount the fixture securely to a rigging point, whether an elevated
platform or a truss.
When rigging this product onto a truss, you should use a mounting clamp of
appropriate weight capacity. The bracket has a 13 mm hole, which is appropriate for
this purpose.
When mounting this product overhead, always use a safety cable.
Before deciding on a location for this product, always make sure that it will be easy to
access the unit for maintenance and programming purposes.
When power linking multiple fixtures, you must always consider the length of the
power linking cable and mount the fixtures close enough for the cable to reach them.
The bracket knobs allow for directional adjustment when aiming the fixture to the
desired angle. Only loosen or tighten the bracket knobs using your bare hands. Using
tools could damage the knobs.

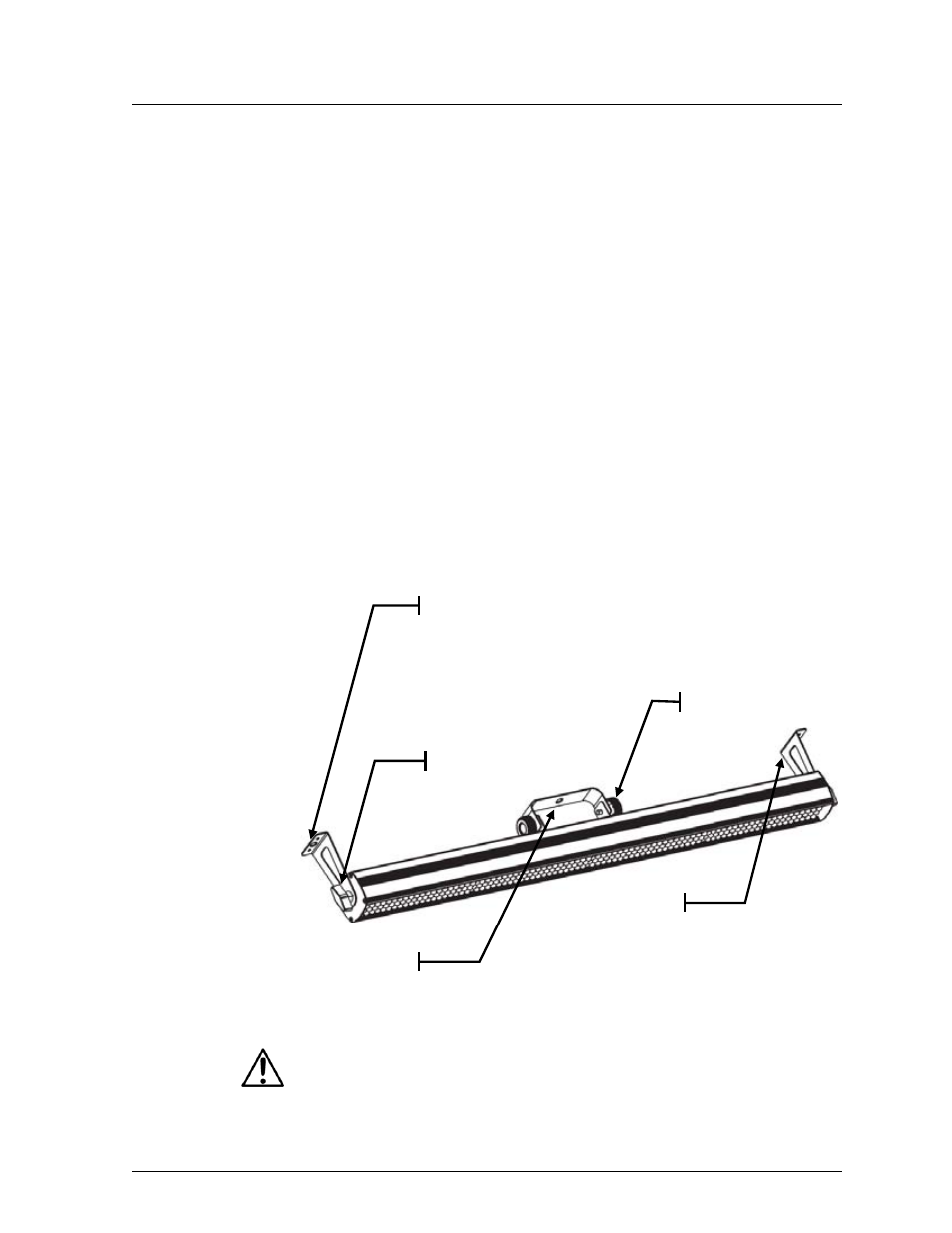

Mounting Diagram
There are two (2) rigging options available for this product. If using the mounting
brackets, then you must use both of them. If using the mounting yokes, then it is only
necessary to use a single mounting point.
Mounting bracket
Yoke adjustment
Mounting yoke
Mounting bracket
Bracket adjustment
