Kistler-Morse KM LD360s - Manual (Page 47)

B
Kistler-Morse Bothell, WA
TI-LD360s.FM-01
C
NON-HAZARDOUS LOCATION
HAZARDOUS LOCATION

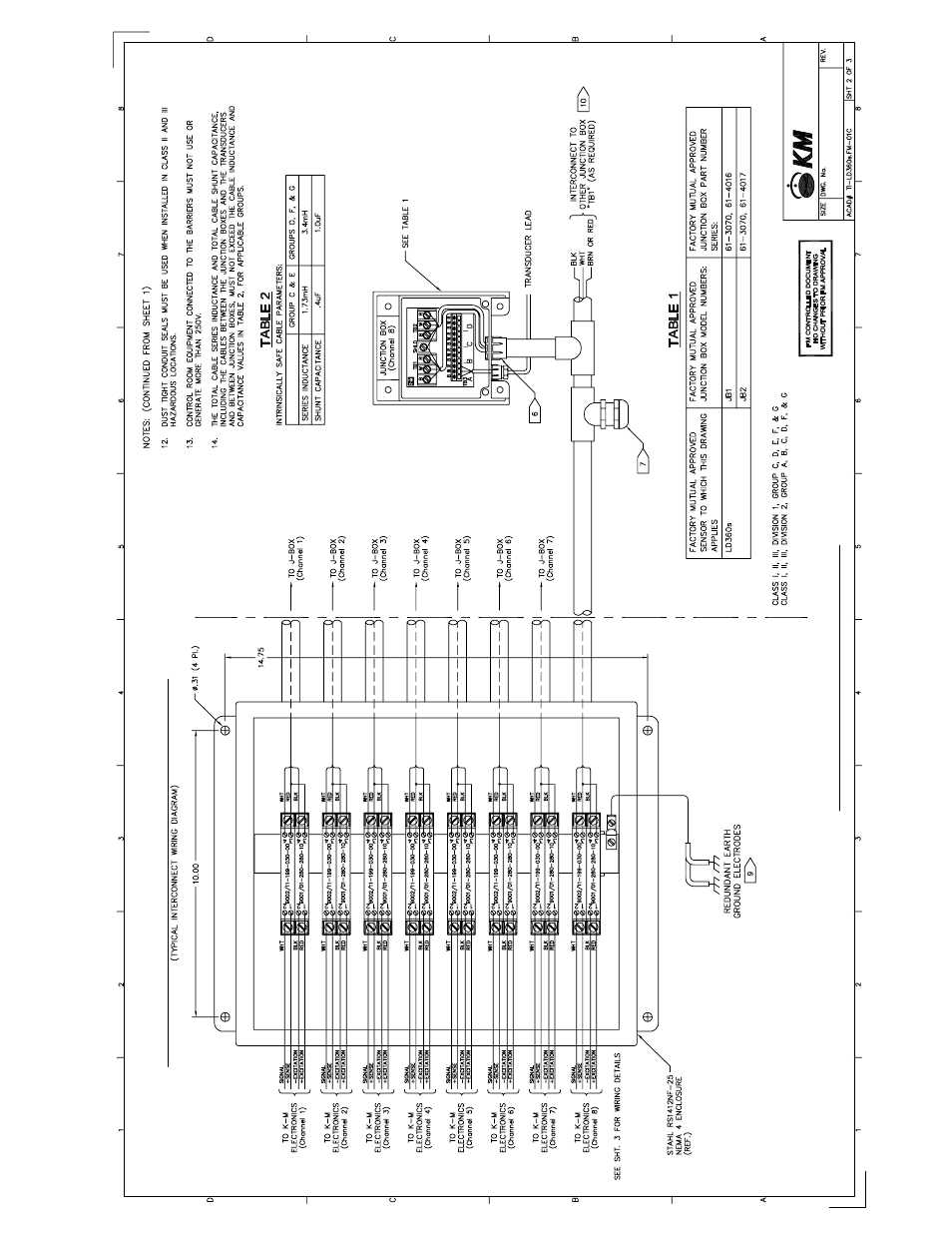

MODEL SBMVS-N4 INTRINSIC SAFETY BARRIER ASSEMBLY (8 CHANNELS MAX.)
TYPICAL JUNCTION BOX WIRING
TYPICAL MULTI CHANNEL INSTALLATION
