Hardy Floor Scales
32
Step 5.
Tap the anchor bolt into the hole then
tighten the nuts securely.
Step 6.
Lift the Platform out and away form the
foot retainer plate.
Step 7.
Drill the two (2) inner holes using a ham-
mer drill. (See Specifications/Anchor Bolt
Holds above for hole dimensions)
Step 8.
Insert the anchor bolts with the nut and
washer already ON.
Step 9.
Tap the anchor bolts into the hole then
tighten the nuts securely
Step 10.
Note the following:
•
If two ramps are installed, NO other foot
retainer plates are needed
•
If one ramp is installed then a set of two foot
retainer plates are needed.
•
Only two ramps total may be installed on
opposite sides of a scale platform.

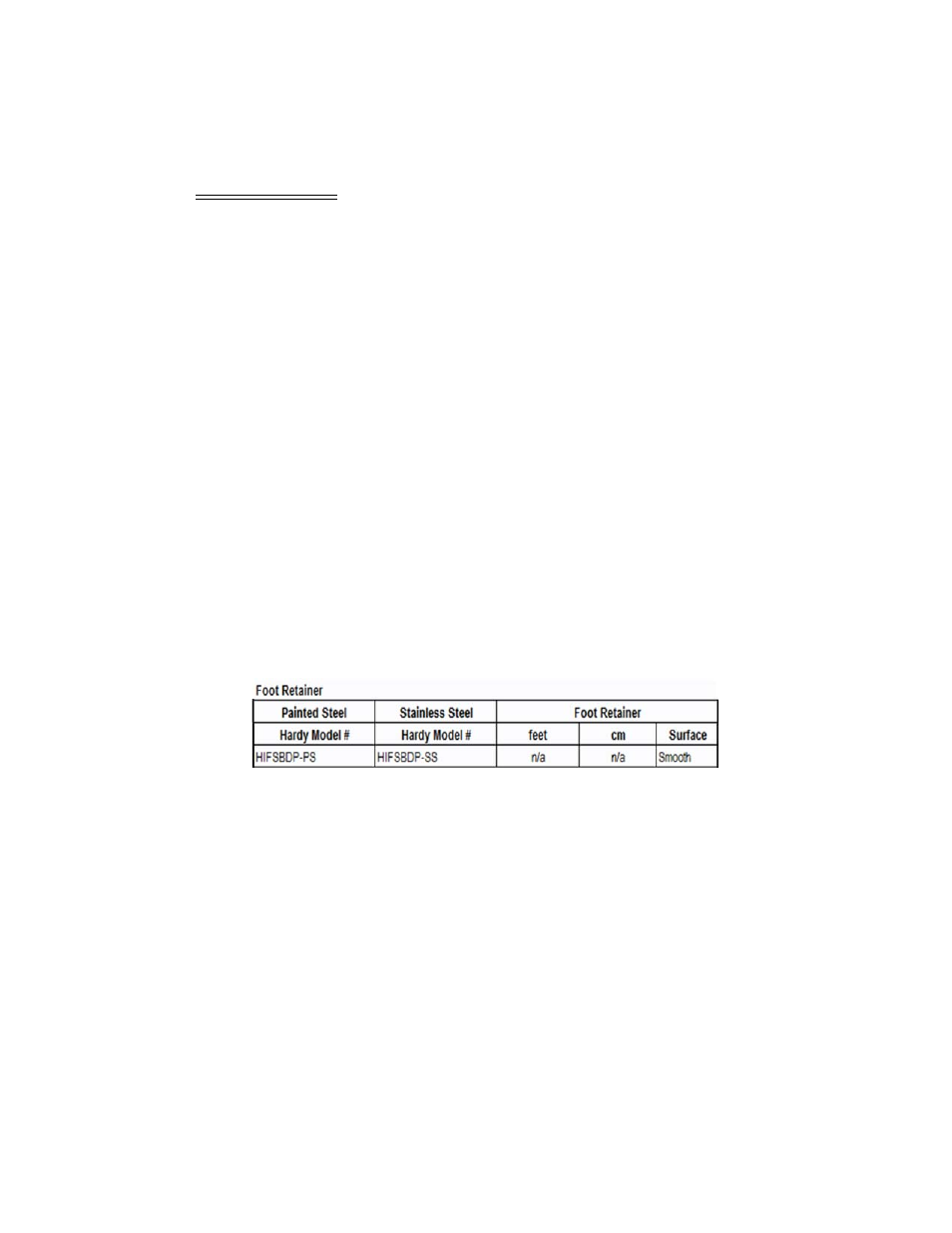

OPTIONAL FOOT
RETAINER
Foot retaining plates are used to keep the scale from
sliding or moving when loads are applied. The plates
are bolted via anchors at each of the scales feet. (See
Fig. 27)
