Hardy Floor Scales

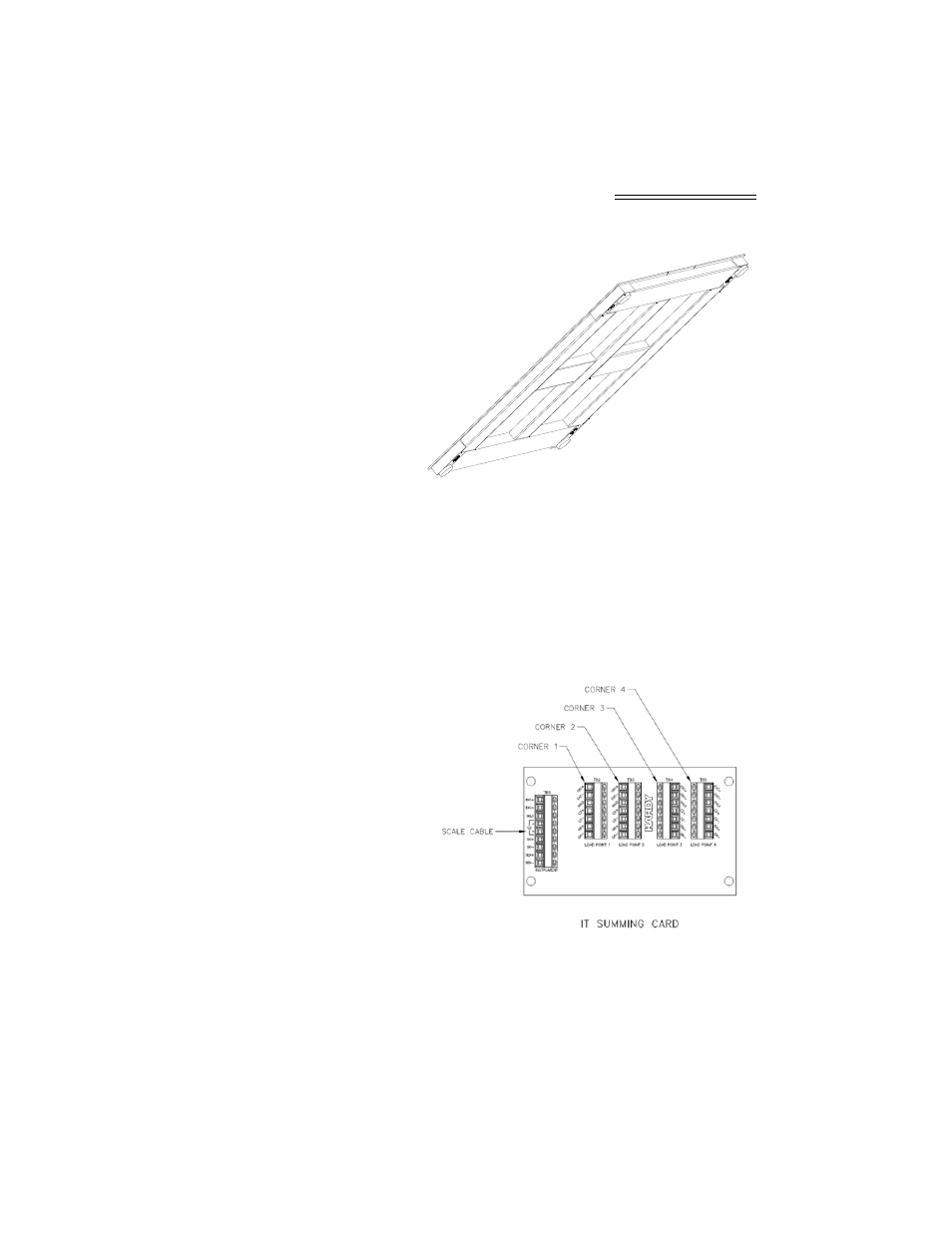

FIG. 17 ALL FOUR FEET INSTALLED

INSTALLING A LOAD
SENSOR

Step 1.

Shut all power off to the floor scale.

Step 2.

To gain access to the Summing Card fol-
low the instructions above. You do not
have to remove the summing card or the
bottom of the Junction box to install a new
load sensor. (See Fig. 18)

FIG. 18 SUMMING CARD
