scale, this motion status will prevent the unit from doing a zero command, tare command, cal
low command or a cal high command.
Cal Low Weight - the reference for the amount of live load weight you have on the scale at the
time of the Cal Low Command being run;
Cal High Weight - the reference for the amount of live load weight you have on the scale at the
time of the Cal High Command being run.
Read_Configuration : Reads the configuration of the parameters established during the Set_Config and
the Set_Sensitivity_Filter . This would be to check to see what configuration parameters are set in the
PIM.
Save : Saves configuration setting to non-volatile memory. This should be used any time changes to the
configuration or calibration are made to prevent loss of settings during a power-cycle.
Set_Sensitivity_Filter : Resets the gain of the A/D converter, sets filter and turns fir filter on/off. This
adjusts the gain of the converter to get better resolution with different mv/v ratings of the load cells.
Suggested Gain setting below.
Get_Cmd_Status : Reads the status of the last command sent to the module.
Get_Version : Reads the version of the firmware in the module. Typically used in troubleshooting to
provide module information during a Technical Support event.
Set_Defaults: Sets the module back to factory default settings.
Section 3: Using Function Blocks
1. Start a new project with Connected Components Workbench software.

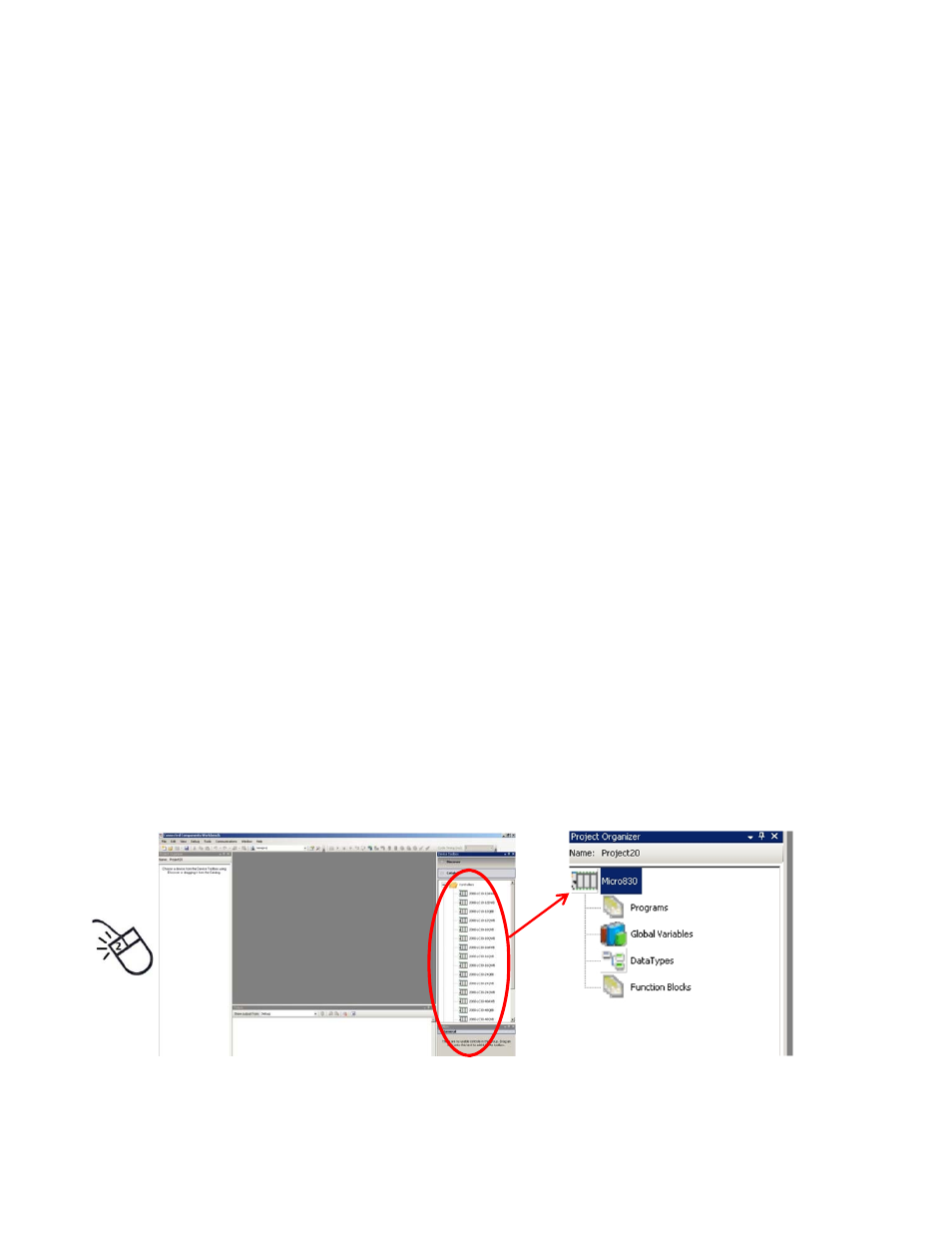

2. Choose your specific controller from a list on the right side of the screen by double clicking.
