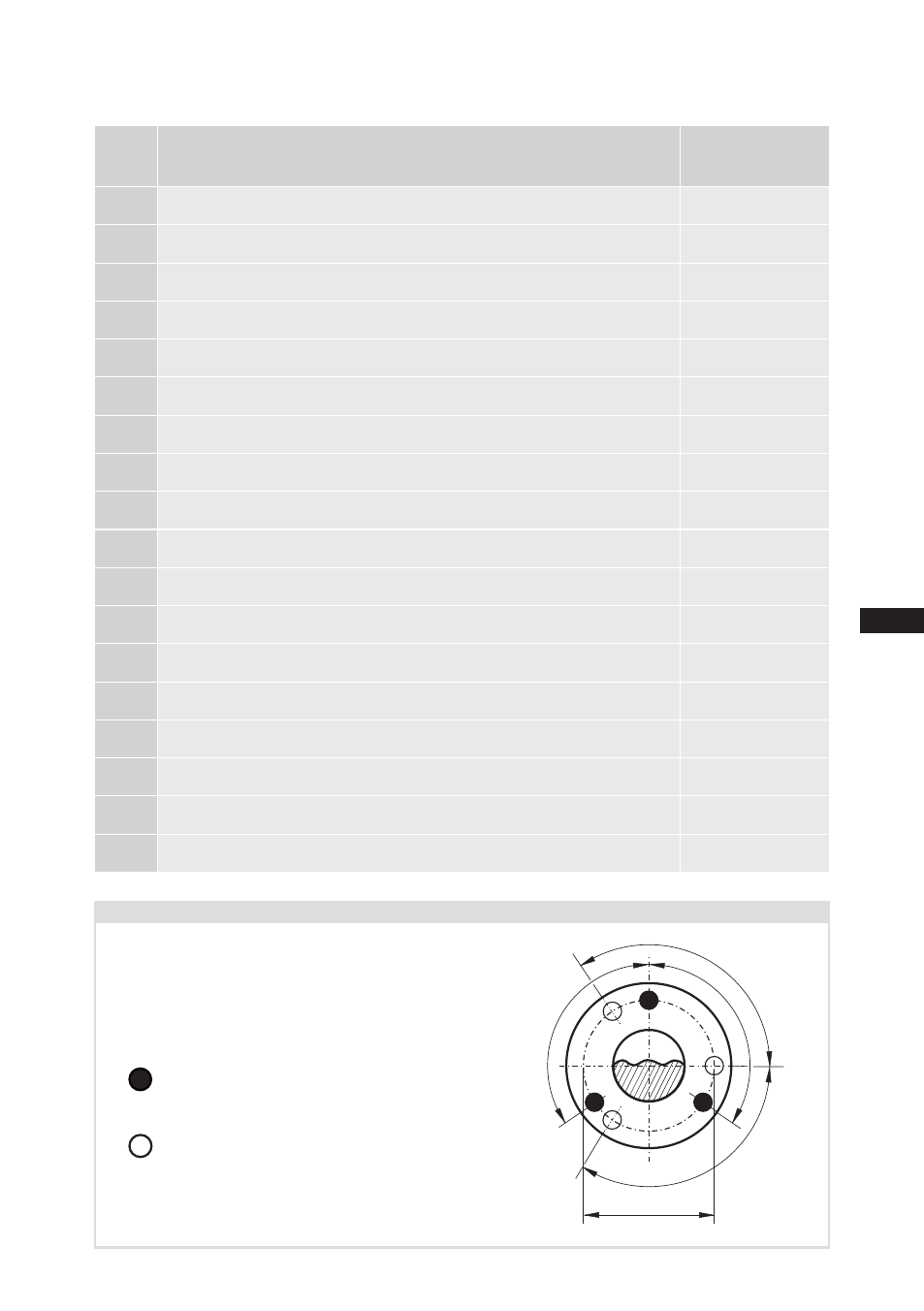

9| Dimensions and connections
SV
DV Suction line
Discharge line see technical data, Chapter 7
A Connection suction side, not lockable
1/8“ NPTF
A1 Connection suction side, lockable
7/16“ UNF
A2 Connection suction side, not lockable
1/8“ NPTF
B Connection discharge side, not lockable
1/8“ NPTF
B1 Connection discharge side, lockable
7/16“ UNF
B2 Connection discharge side, not lockable
7/16“ UNF
C Connection oil pressure safety switch OIL
7/16“ UNF
D Connection oil pressure safety switch LP
7/16“ UNF
D1 Connection oil return from oil separator
5/8“ UNF
E Connection oil pressure gauge
7/16“ UNF
F Oil drain plug M22 x 1,5
H Oil charge plug M22 x 1,5
J Connection oil sump heater M22 x 1,5
K Sight glass 3 hole M6
L Connection thermal protection thermostat
1/8“ NPTF
ÖV Connection oil service valve
1/4“ NPTF
P Connection differential oil pressure sensor M20 x 1,5
Q Connection oil temperature sensor
1/8“ NPTF
View X
• Oil sight glass
• Possibility to connect to oil level regulator
Fig. 26
1
2
4
°
124
°
12
4°
Ø 47,6
1
2
4
°
Three-hole connection for oil level regulator
make ESK, AC+R, CARLY (3x M6, 10 deep)
Three-hole connection for oil level regulator
make TRAXOIL (3 x M6 x 10 deep)
