Setting Up Your CD-ROM Drive 2-12
To connect the drive to the interface card:
1. Connect the data cable to your IDE CD-ROM interface card as
shown in Figure 2-17. Make sure you align the colored wire on
the cable to Pin 1 of the IDE CD-ROM Data Connector.
2. If you have an audio card installed in your system, connect the
CD audio cable to the CD Audio Connector on the audio card
as shown in Figure 2-18.

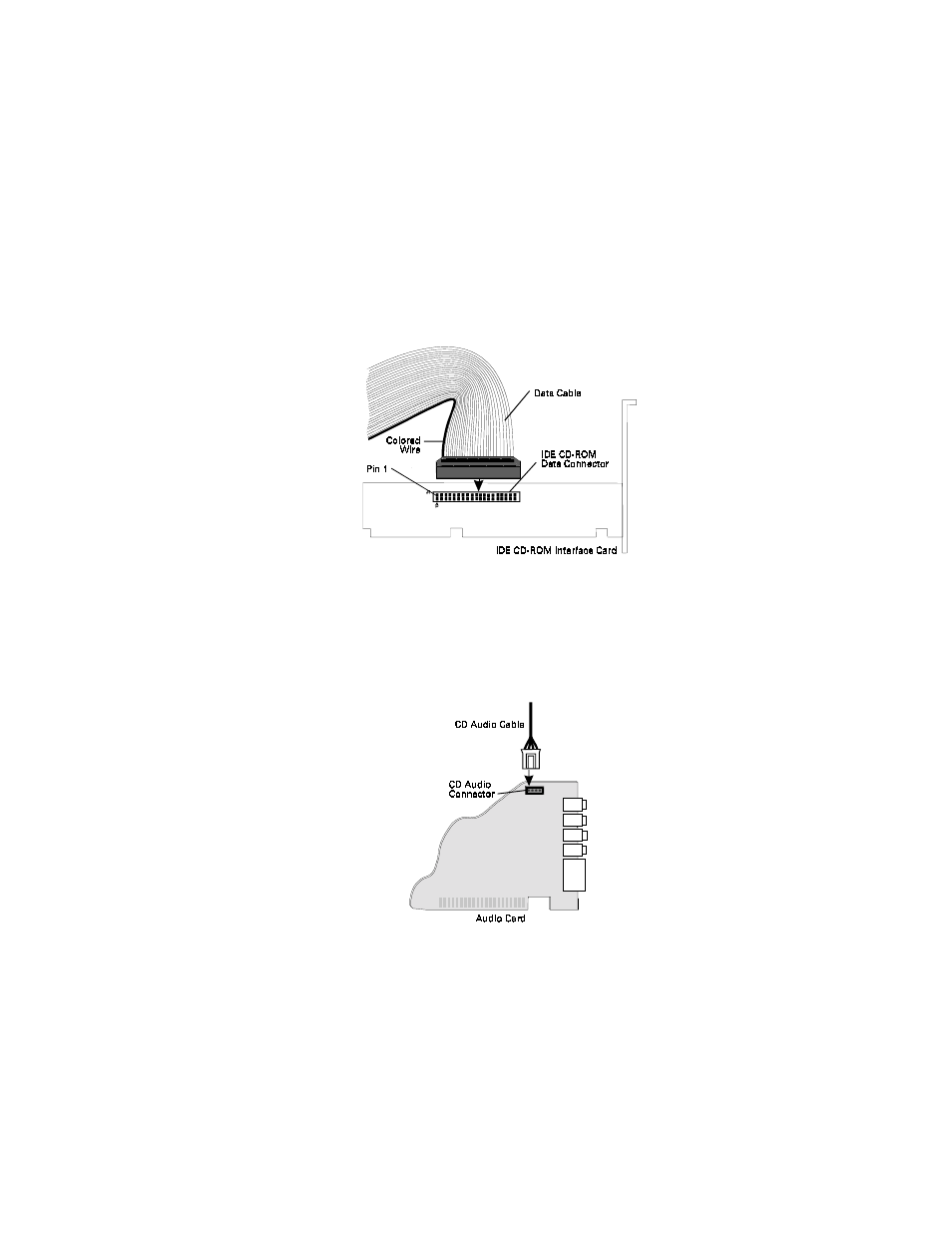

Figure 2-17: Connecting the data cable to the interface card.
Figure 2-18: Connecting the CD audio cable to the audio card.
