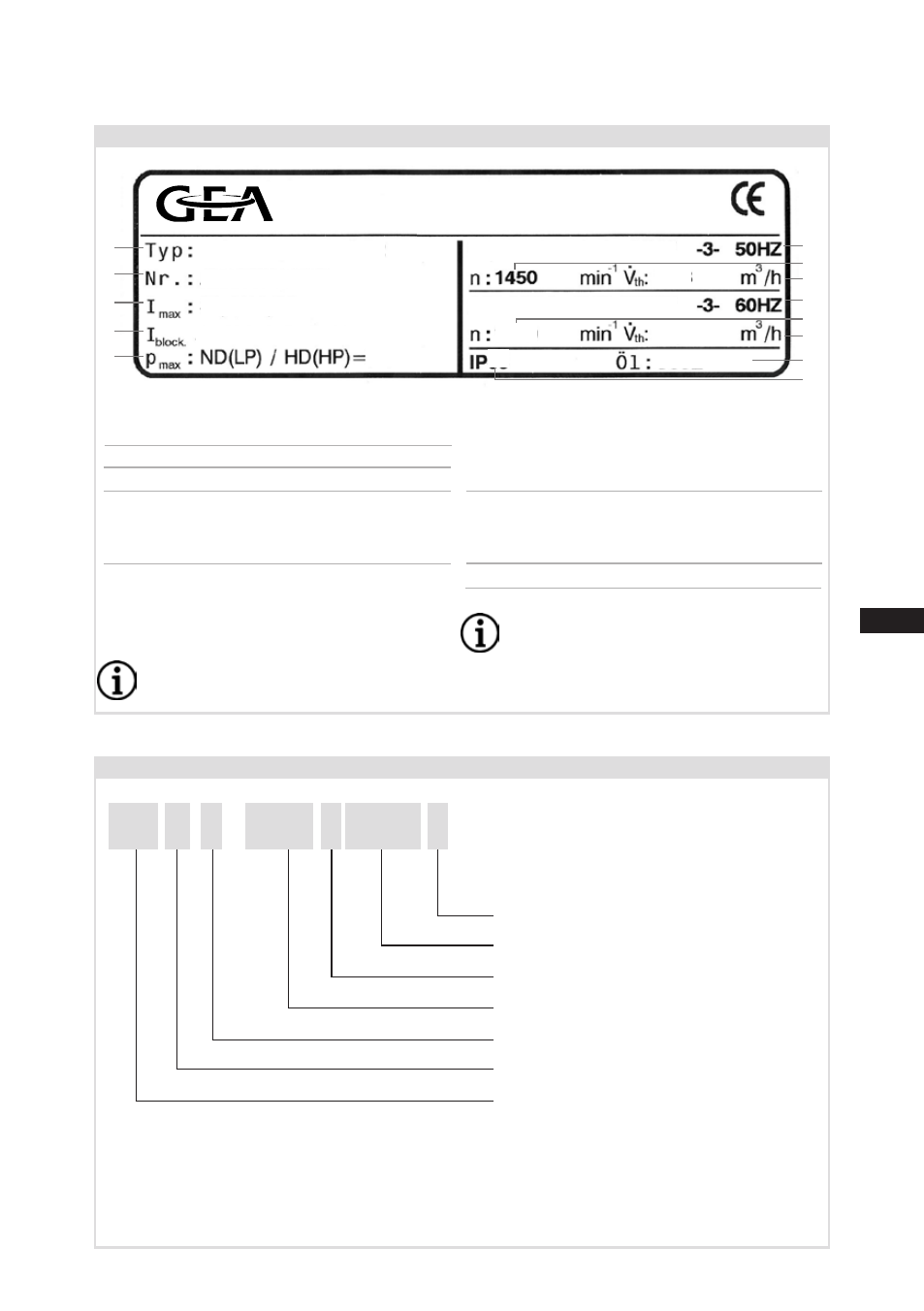

2 | Product description
2.2 Name plate (example)
2.3 Type key (example)
¹ ) HG - Hermetic Gas-Cooled (suction gas-cooled)
Fig. 3
/
Transcritical
CO
2
version
Number of poles
Swept volume
Size
Ester oil charge
Series¹
)
HG 2 110- 4 CO
2
X T
1
2
3
4
5
100/150 bar
HGX2/110-4 CO
2
T
AS30046A002
32,3 A
Y Y: 110 A Y: 141 A
380-420V Y/YY
9,66
440-480V Y/YY
1740 11,66
65
13
12
7
11
6
10
8
9
CO2,C 85 E
1 Type designation
2 Machine number
3 maximum operating current
4 Starting current (rotor blocked)
Y: Part winding 1
YY: Part winding 1 and 2
5 ND (LP): max. permissible operating
pressure (g) Low pressure side
HD (HP): max. permissible operating
pressure (g) High pressure side
Observe the limits of
application diagrams!
50 Hz
60 Hz
6 Voltage, circuit, frequency
7 Nominal rotation speed
8 Displacement
9
Voltage, circuit, frequency
10 Nominal rotation speed
11 Displacement
12 Oil type filled at the factory
13 Terminal box protection type
Electrical accessories can change
the IP protection class!
}
}
