6
D
GB
F
E
96032-02.2015-DGbF
100/150 bar
HAX2/110-4 CO 2 T
AS30046A002
26,7 A
380-420V Y/YY 9,66
440-480V Y/YY 1750
11,66
65
CO2,C 85 E
Y: 110 A Y : 141 A
GEA GEA Bock GmbH
72636 Frickenhausen, Germany
2 | Product description
• Semi-hermetic two-cylinder reciprocating compressor with suction gas-cooled drive motor.
• The refrigerant coming from the evaporator is entering the compressor and flowing over
the motor. This ensures an especially intensive cooling of the motor. Therefore the motor
temperature remains on a relatively low level - especially at high load.
• Cylindrical roller bearing support the crankshaft on the oilpumpside.
• Double slide bearing on the motor flange.
• Bi-directional oil pump with oil pressure relief valve.
• One decompression valve each on the low and high pressure side, which vent into the
atmosphere when these inadmissibly high printing pressures are reached.

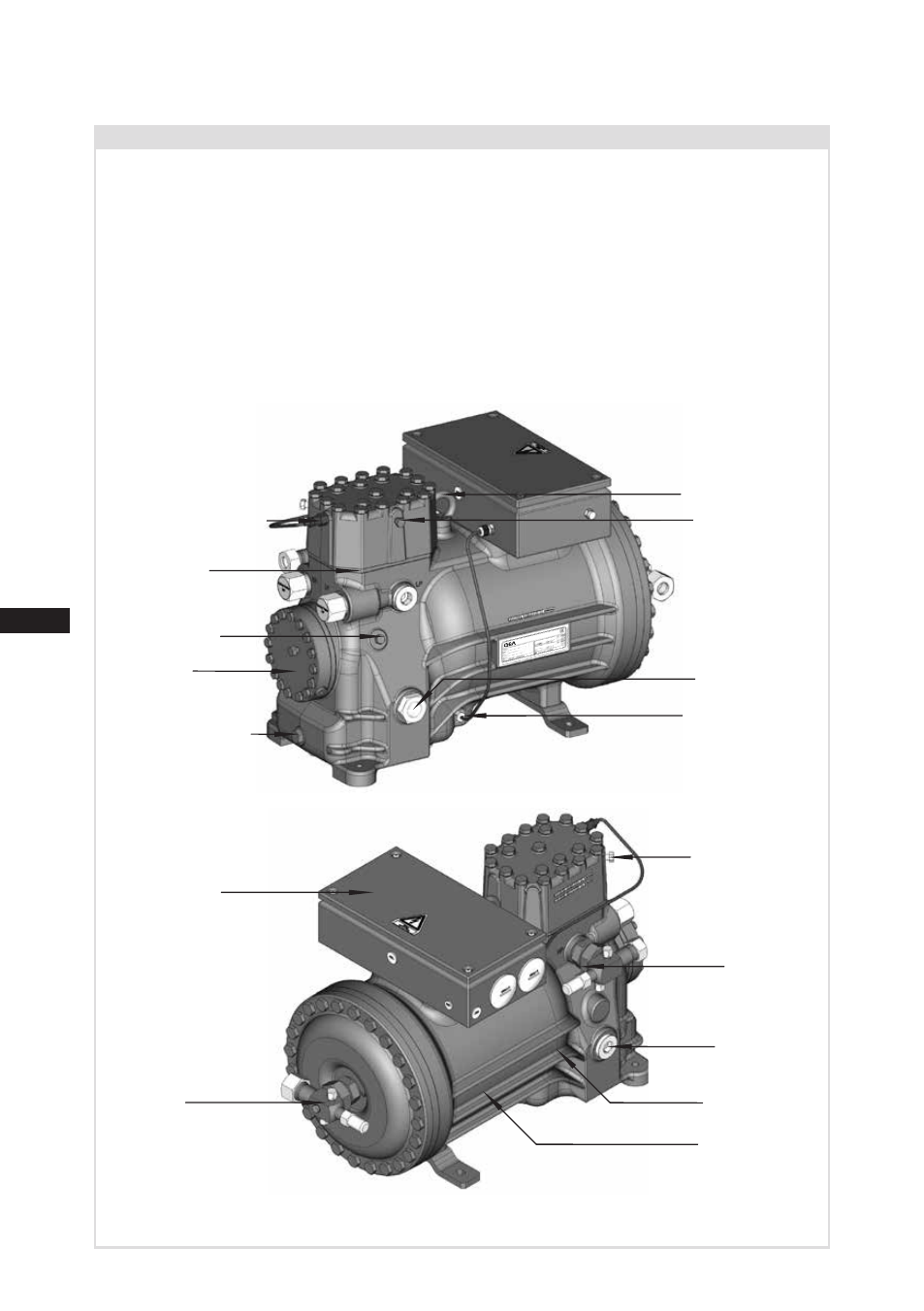

2.1 Short description
Discharge
shut-off valve
Dimension and connection values can be found in Chapter 9
Fig. 1
Fig. 2
Connection
oi level regulator
Connection HP
Oil sump heater
Oil sight glass
Connection LP
Transport eyelet
Thermal protection
thermostat
Valve plate
Oil filler plug
Oil pump
Oil drain, oil filter
Terminal box
Suction
shut-off valve
Motor section
Drive section
