Funnel (A) with safety switch
4x cylinder head screws M6x12 (E)
4x washers (F)
Funnel fastener
1x cylinder head screw M6x12 (G)
1x cable clamp (H)
Cable conduit fastener
1x angled screw coupling with
thread PG11 (B)
1x angle screw coupling with thread
M20 (D)
(The standard for cable
screw connections was
changed during the
manufacturing period of the
device.)
2x clamping blocks (C) of anodised
aluminium
Crushing plate fastener

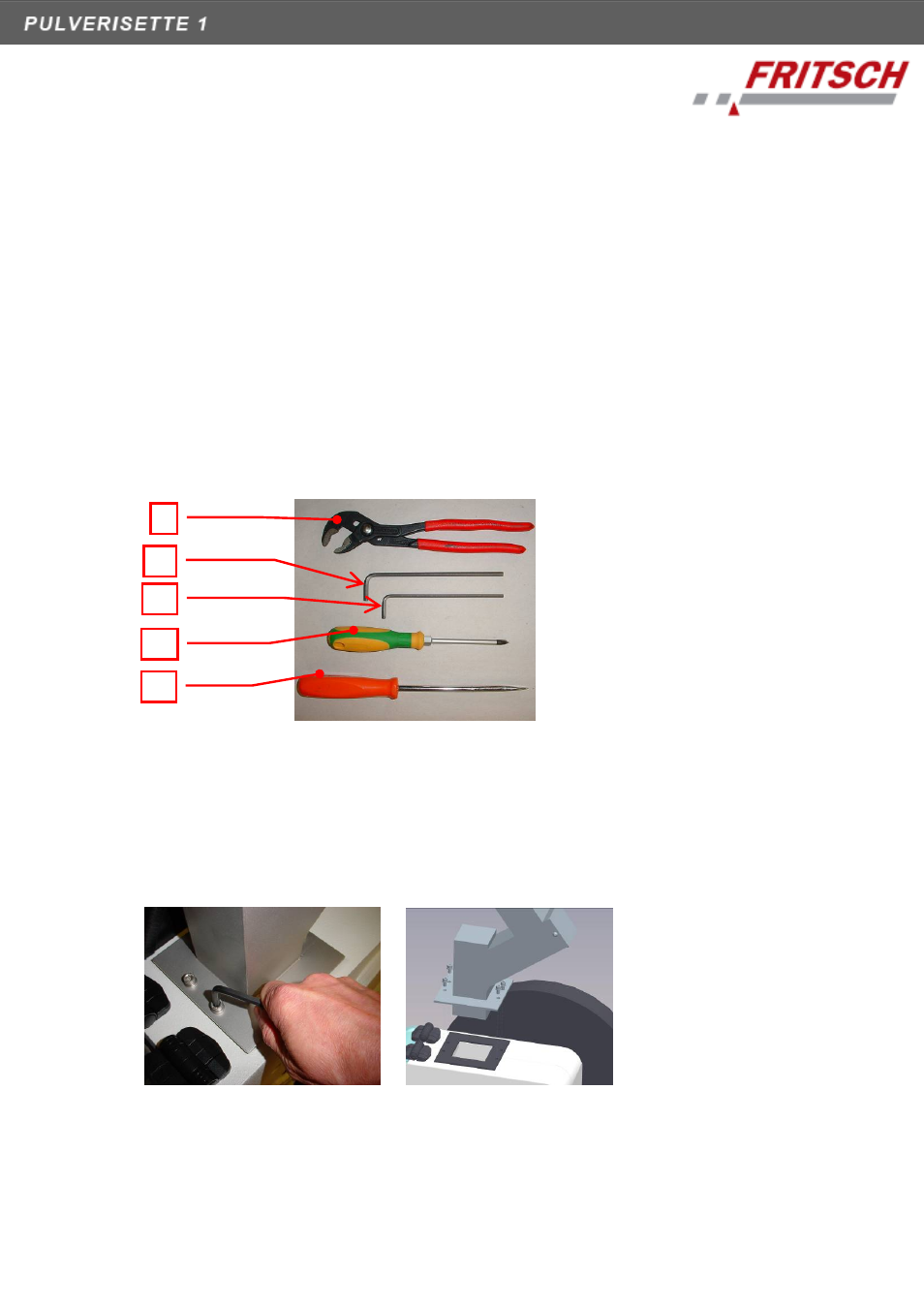

6.2.3.2 Tools
These tools are required for the assembly:
• Pipe wrench (K)
• Hex socket screw size 5 (L)
• Hex socket screw size 4 (M)
• Phillips screwdriver (N)
• Flathead driver (O)
6.2.3.3 Assembly
1.
Remove the filling funnel (1) by unscrewing the 4 cylinder head screws using
the supplied Allen key (a). Please store the screws and washers with the filling
funnel (1) for subsequent reinstallation.
The rubber seal remains on the housing.
K
L
M
N
O
