Conforms to: EN60335-2-29 and En12184.

24 volt DC.(Drive system)

12 volt Dc.(Lighting system)

Rear wheel, direct drive via sealed drive axle.

24 volt DC. Permanent magnet, totally enclosed for

outdoor use.

Automatic dynamic regenerating braking system

with spring activated magnetic solenoid parking brake.
Free wheel facility. Manual brake to front wheels.

Easily dismantled into six basic pieces for

convenient transporting ( see page 191 ) .

for driving comfort.

State of the art design for safety

and smooth operation; incorporating 'Fault' diagnosis.

Charging point is on the handlebars.

complies with E.M.C. Directive 89/336/EEC
complies with Medical Devices
Directives 93/42/EEC

Charger:

Electrical System:

ADDITIONAL FEATURES

Drive system:
Motor:

Brake:

Modular Design:

Adjustable Locking Tiller:
Proportional Speed Control:

Contoured Seat:

Automatic Charger:

AC input. 230 voit. 50Hz.390W.2.2A

Fuse.UK Plug 5 Amp. Internal T3-15AH.
DC output 24 Volt. 5Amp.

With sliding facility, adjustable for height,

arm width and armrest angle. Swivels for easy access.

Charger:

Electrical System:

ADDITIONAL FEATURES

Drive system:
Motor:

Brake:

Modular Design:

Adjustable Locking Tiller:
Proportional Speed Control:

Contoured Seat:

Automatic Charger:

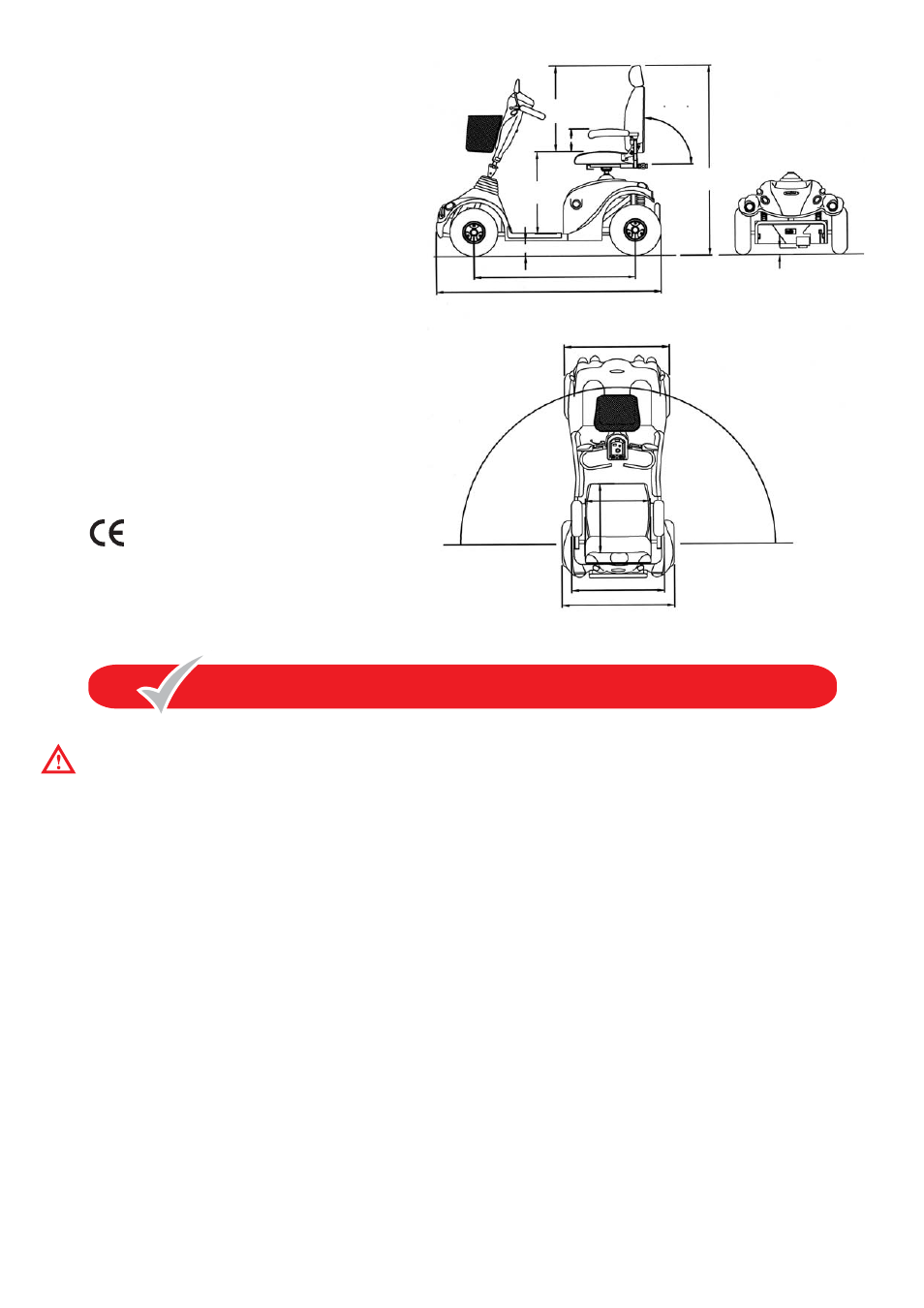

8.8cm

133cm~137cm

46cm~49cm

17.5cm

105cm

152cm

20cm

62cm

91 ~80 cm

74cm

64~78cm

220cm

TURNING RADIUS

68cm

48cm

49cm

ADVISORY SAFETY NOTICE

Your powered Scooter is designed to operate in appropriate
environments, however radio wave sources such as radio or
TV broadcasting stations, amateur (Ham) radio transmitters,
two-way radios and cellular portable telephones can affect
powered motorised Scooters.

hand held personal communication

devices such as citizen ban (CB) radios and cellular
phones, while your

Scooter is turned on.

2. Be aware of nearby transmitters such as radio or TV

stations, and try to avoid coming into close contact
with them.

3. If unintended movement or brake release should occur,

turn your

OFF as quickly as it is safe to do so.

4. Be aware that adding accessories or components or

The following warnings listed below should reduce the
chance of unintended brake release or uncontrolled
powered Scooter movement.

Freerider

Do not turn on

The following warnings listed below should reduce the
chance of unintended brake release or uncontrolled
powered Scooter movement.

Freerider

Do not turn on

5. Report all incidents of unintended movement or brake

release to your

supplier, noting if there is a radio

wave source nearby. He will then be able to diagnose your
Scooter to eliminate any possible Scooter component
failure. Please note a charge may be made for this service.

Your Scooter has been tested to the following standards with
reference to EN12184. Emissions EN50022(B), Immunity
IEC1000-4-3, E.S.D. IEC801-2

Freerider

Note: All figures, speeds, measurements and capacities
shown in this manual are approximate and do not constitute
specifications. Our policy is one of continual improvement.
We reserve the right to alter, without notice, any weights,
measurements or other technical data shown in this manual.
If you require specific accurate data, please contact your
Freerider authorised dealer.

Enjoy your Westminster

Freerider

Warning:

Radio wave sources may affect Scooter control.

Warning: Radio wave sources may affect Scooter control.

Modifying your

Scooter may make it more

susceptible to interference from radio wave sources.

Freerider

Note: There is no easy way to evaluate their effect on the
overall immunity of your powered Scooter.

Freerider

Note: There is no easy way to evaluate their effect on the
overall immunity of your powered Scooter.
