FIG 40

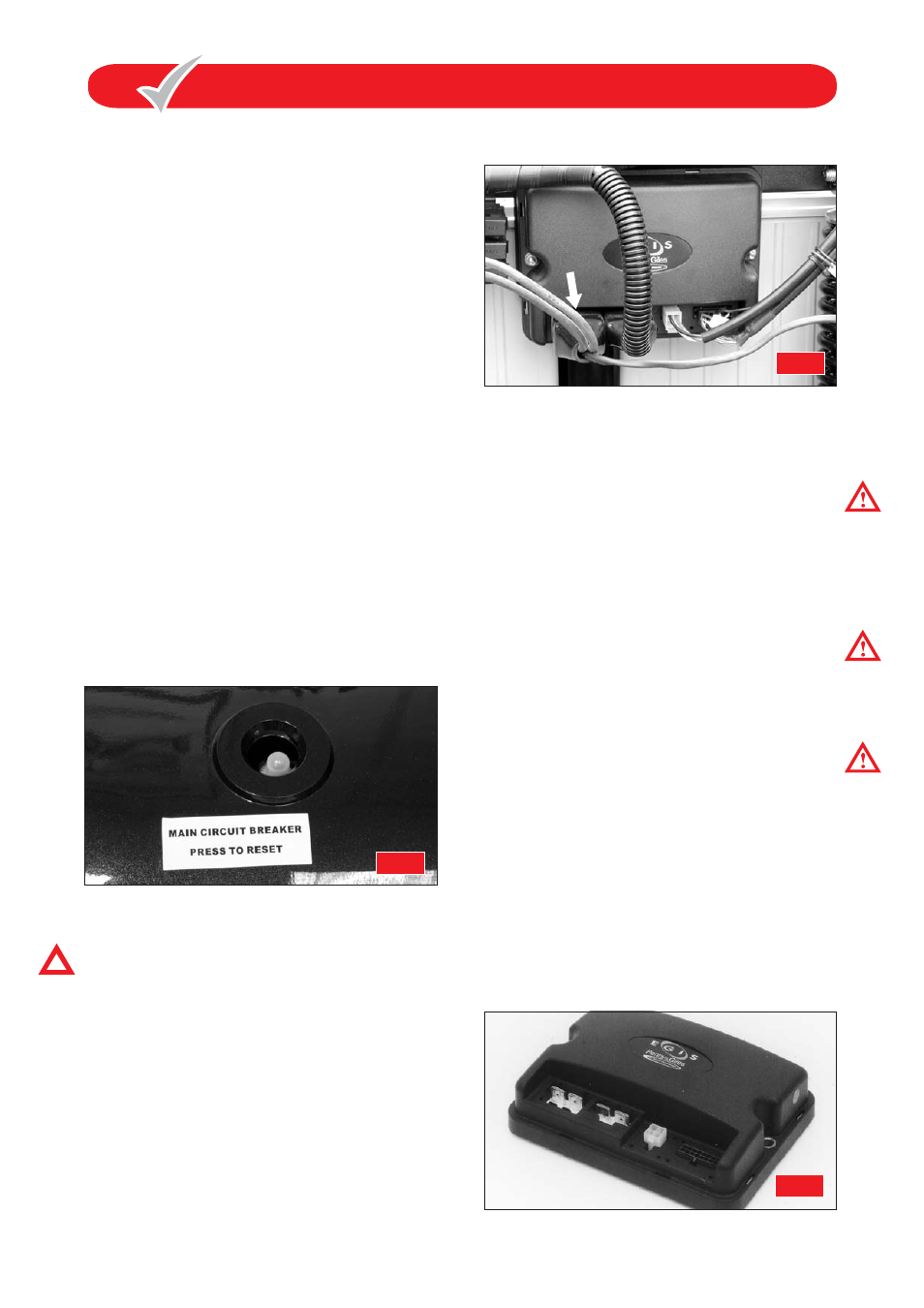

BASIC FAULT FINDING
If your Freerider Scooter will not start:
If the battery condition meter fail to operate when the
key switch is in the 'on' position, check the following:
Freerider
The battery condition indicator meter , your Freerider
does not drive:
1. Check the power key switch is turned fully 'on'. If it is,
the battery condition indicator meter displayed on your
console, will be operating. If the first red status light is
flashing once per second, charge your batteries.
1. Make sure the battery charger is not plugged into the
tiller charge socket, this will prevent drive.
2. Check both battery connectors ( grey connectors ).
Check battery terminal condition ( fig 22, page 20).
3. Check the 'circuit breaker': If your stops
for no apparent reason, it is probably due to the circuit
breaker disconnecting from the speed control electronic
box (see fig 26). On rare occasions, a temporary
overload on the electric circuit can occur - for instance
when climbing a steep incline. If this happens, the circuit
breaker situated under the rear body cover will trip and
all power to your drive system will be automatically
switched off. Wait for approximately 60 seconds, switch
the circuit breaker to 'on 'by entering a finger through
the access hole in the top of the rear body cover (located
under your seat ) and press the switch down. The battery
gauge will light up and you are now ready to drive again.
(See fig 26)
If the circuit breaker trips up again wait for 5 minutes and
try again.
If you find the circuit breaker is continually tripping
out, contact your authorised dealer.
1. Check the 'black' motor drive plug, located under the rear
body cover positioned in the main controller module
(see Fig 27).Also check status fault codes (page 28 )
2. Check the freewheel lever is fully engaged (see page
11 ). If it is engaged you should not be able to push
your machine. If disengaged, 9 bars will flash on your
battery condition mater.
Westminster
Caution:
If your Freerider Scooter will not start:
If the battery condition meter fail to operate when the
key switch is in the 'on' position, check the following:
Freerider
The battery condition indicator meter , your Freerider
does not drive:
Westminster
Caution:
FIG 42
Motor
FIG 26
FIG 27
FIG 41 FIG 40 FIG 28
Controller
P&G EGIS 110
1. Turn off the power 'on' key switch.
2. Inform your authorised
dealer.
If your Freerider does not slow down or behaves erratically:
Freerider
If you find for any reason your
does not reduce speed when you let go of the forward-
reverse speed lever . Switch your
'off' with the
on/off key. The parking brake will activate immediately and
stop your Scooter.
The speed controller system incorporates a sophisticated
micro-processor design (Fig 29). It is located under the rear
Beware the machine will stop very
suddenly, brace yourself with the handlebars, sit back in
your seat.
This operation should only be carried out as an
emergency; continual use of this facility will damage the drive
transmission and motor brake.
Body cover of your . The in-built micro-
controller continually monitors the Scooter's
systems to ensure safe and reliable operation.
Warning:
Warning:
Inform your authorised Freerider dealer before using your
machine again.
Warning:
Be safe Freerider
If you feel for any reason that your Scooter is not
driving correctly or making an unusual noise, stop using the
machine.
, contact your dealer, he will be
able to advise you.
IMPORTANT SPEED CONTROLLER
INFORMATION
Westminster
Westminster
Westminste
Westminste
If your Freerider does not slow down or behaves erratically:
Freerider
Warning:
Warning:
Inform your authorised Freerider dealer before using your
machine again.
Warning:
Be safe Freerider
Westminster
Westminster
Westminste
Westminste
Beware the machine will stop very
suddenly, brace yourself with the handlebars, sit back in
your seat.
This operation should only be carried out as an
emergency; continual use of this facility will damage the drive
transmission and motor brake.
IMPORTANT SPEED CONTROLLER
INFORMATION
27
