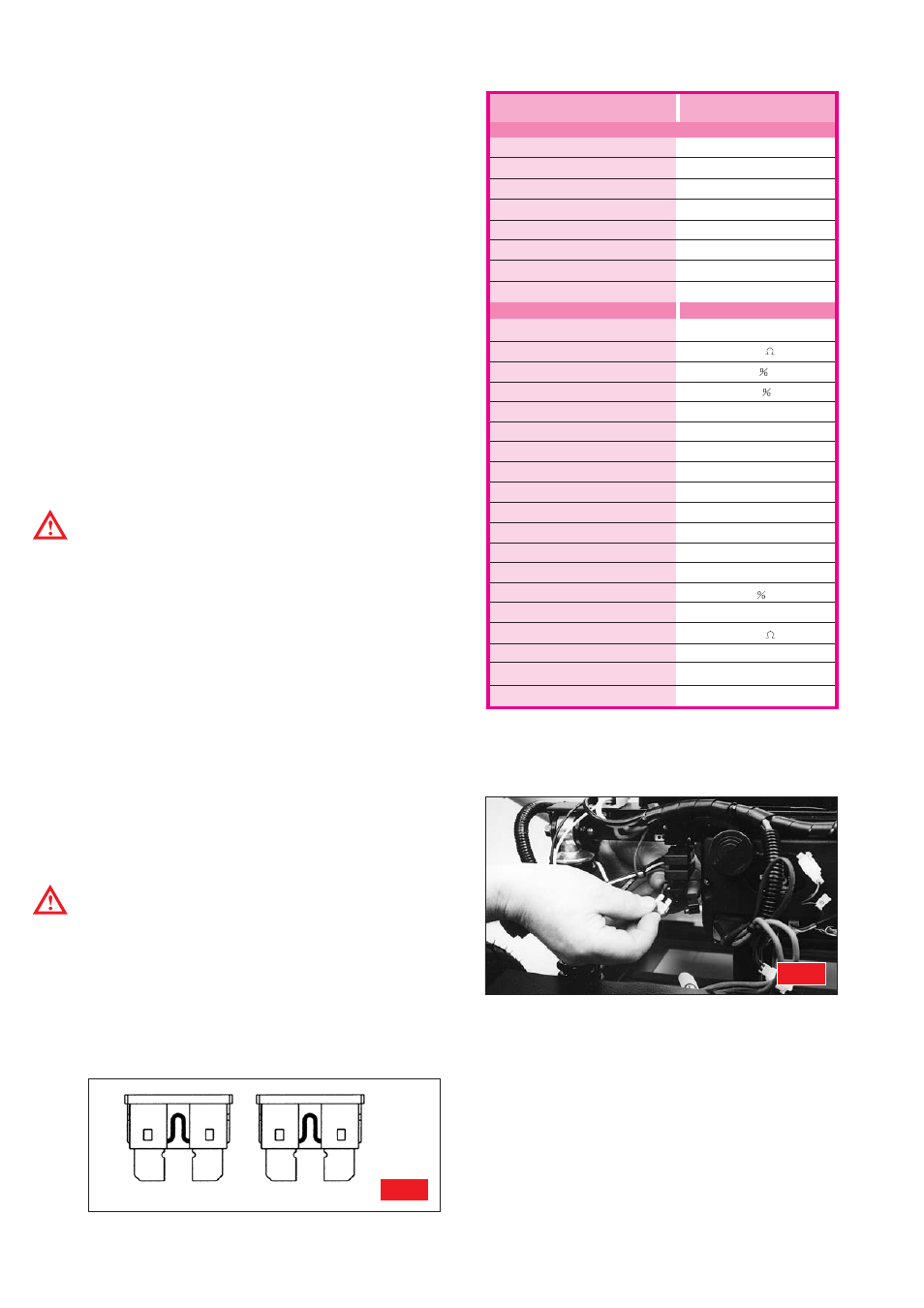

The original manufacturer's settings for this Scooter are:

ROOT MENU DESCRIPTION

SETTINGS

FORWARD ACCELERATION

FORWARD DECELERATION

REVERSE ACCELERATION

REVERSE DECELERATION

FORWARD SPEED

REVERSE SPEED

THIROTTLE POL"TY

POWER DOWN TIMER

ENGINEER MENU DESCRIPTION

CURRENT LIMIT

COMPENSATION

HOLD FACTOR

MID CURRENT

BRAKE TIME

ISO TESTS

INHIBIT MODE

BRIDGE HOLD

THROTTLE GAIN

PULSE REV. ALARM

WIGWAG THROTTLE

LOW BATTERY FLASH

SOFT-STOP

THROTTLE D'BAND

OUTPUT VOLTAGE

TRUCHARGE CABLE

TRUCHARGE CAL

MAX. CHARGE AMPS

MIN CHARGE AMPS

FAST

100

If your battery gauge status indicator light is flashing, first
switch your Scooter to 'off ' and back to 'on' again to see if
the problem will clear. If the 'status' light continues to flash
and your Scooter will not drive, refer to the 'FAULTS CODE'
on page 30 take the appropriate remedial action as
advised in the 'comments' column. If in doubt consult the
dealer from whom you purchased your

Scooter.

This indicates that you have switched your Scooter on with
the forward-reverse speed lever depressed. Return lever to
the neutral speed position and try again.

The forward-reverse speed Controller ( fig28 page27) is a
state-of -the-art microprocessor designed to give smooth
and safe operation, For maximum performance, protection
and convenience the Controller is housed in a solid dia cast
aluminium case situated under your rear body cover.

The speed Controller, Penny & Giles model EGIS 110 is
programmed by

to obtain the maximum

performance and safety for your

Scooter.

(See column right)

The fuses protect your

lighting and direction

indicators ( flashers ) from receiving an overload of electrical
current. The fuses used in the

are the same

type which are found on automobiles. In the unlikely event
that a fuse should 'blow' and need replacing ( see fig 29 )
use only a 15amp rating. Please note the size of fuse has been
selected to give your Scooter the best protection without
premature blowing

Do not use fuses with a higher rating than 15amps

as this may cause permanent failure to the wiring and wiring
connectors or personal injury.

Freerider

If in doubt consult

your Freerider Manufacture

Freerider

Three 15amp fuses are located below the

rear

body cover ( see fig 30) the fuses are positioned in black
plastic housings which are sealed by hinged lids.

For access to the fuses, following the removal of your seat
and rear body cover, lift the fuse block from it's mounting.

STEADY RIPPLING OF BATTERY GAUGE

SPEED CONTROLLER SETTINGS

Warning:

FUSES

Warning:

Performance adjustments should not be made

which could put the operator in a serious situation of
control or braking. Performance adjustments should only be
made by a person fully trained and conversant with the
programming process and it's capabilities.

Incorrect settings could cause injury to the

Scooter operator and/or to bystanders, or damage to the
vehicle and/or surrounding property.

Westminste

Freerider

If in doubt consult

your Freerider Manufacture

STEADY RIPPLING OF BATTERY GAUGE

SPEED CONTROLLER SETTINGS

Warning:

FUSES

Warning:

Westminste

SLOW

15 mins

SETTINGS

110

40m

180

6s/50

OFF

160

YES

24V

40m

100

Lift up the appropriate fuse lid and withdraw the 'blown' fuse.
Replace the blown fuse with recommended 15amp(Blue) fuse,
close fuse lid and replace fuse block onto mounting. The

fuses are located in the following order:-Top-left driving
lights, Middle- flashing turn indicator lights, Bottom-right
driving lights.

FIG 43

Working fuse

Blown fuse(replace)

FIG 44

FIG 30

REAR LIGHT WIRING CONNECTOR

The rear lights mounted to your

rear body cover

are connected to the main wiring loom by a four pin plug and
socket (see fig31. To remove the rear body cover first
remove your seat. The cover is positoned onto the Scooter by

Westminster

REAR LIGHT WIRING CONNECTOR

Westminster
