20
Warning:

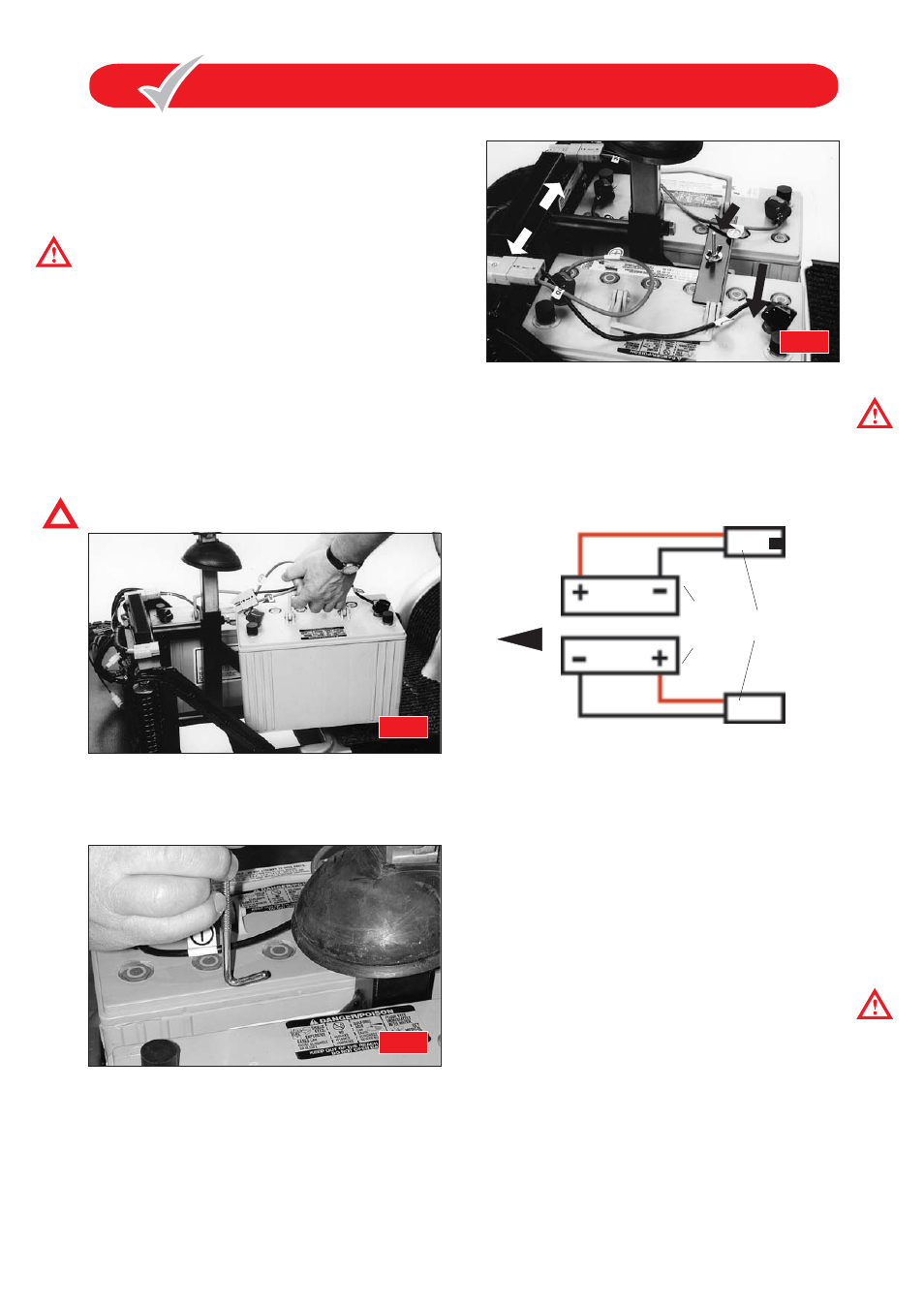

BATTERY INSTALLATION
Caution:
Your Scooter is equipped with two maintenance
free 12 volt batteries. The batteries are linked together by wiring
cables to supply the electronic system with 24 volts of power
When first installing the batteries follow these assembly
instructions.
1. Connect the red wire of the battery cable to the
positive (+) terminal of the battery, with the provided.
2. Connect the black wire of the battery cable to the
negative (-) terminal of the battery, with the nut and washer
provided.
3. Repeat this procedure on the second battery making
certain the red/black terminal covers are
secured over each terminal.
4. Position each battery onto the Scooter frame (see fig20).
Batteries are heavy you may require assistance.
5. Secure the two batteries into position with the clamp bracket
,'J' bolt (fig 21) and wing nut supplied (figs21 & 22).
Note: The 'J' bolt hooks into an 8mm hole situated in the
seat post support bracket.
6. Connect the two grey plugs of the batteries into the two
grey sockets of the wiring circuit ( fig 22 ).
7. Switch on your Scooter, the battery meter will now
illuminate to show the state of charge in the batteries and
your Scooter is ready to drive.
8. Switch off your Scooter, fit the battery cover and seat.(see
also Battery Installation diagram page32)
It is imperative that the two batteries are
connected correctly to prevent a short circuit between the
two batteries.
Westminster
BATTERY INSTALLATION
Warning:
Caution:
It is imperative that the two batteries are
connected correctly to prevent a short circuit between the
two batteries.
Westminster
BATTERIES & BATTERY CHARGING
BATTERY CONNECTIONS
Warning:
BATTERY CHARGING
BATTERIES
Warning:
Batteries are heavy, always handle with two hands.
You may require assistance. Do not allow metal tools to touch
both battery terminals together, this will cause an electrical
short and may damage the battery and injure you. Always
cover the battery terminals with the red/black plastic covers.
Your has a lot of power for a small Scooter.
Keeping it working to its maximum potential means that
its two batteries must be maintained with full power.
Nightly recharging, after use, will help you to give them a
longer life and will ensure your
is always ready
to go when you are.
Your is fitted with two sealed maintenance-
free Batteries, especially designed for motive traction use.
This means that you do not have to worry about topping up
the cells.
Do not attempt to remove the safety valves
situated in the top of the battery. Failure to observe this
warning will invalidate your battery guarantee.
Your batteries are virtually maintenance-free
because the electrolyte is immobilized in a special form and
therefore will not leak out, even if the battery is accidentally
overturned.
Because your
batteries are sealed they are more
likely to be accepted for carriage on aircraft. Please consult
your carrier prior to departure, as they will need advance
warning that you wish them to carry batteries.
Westminster
Westminster
Westminster
Westminster
Freerider
BATTERY CONNECTIONS
Warning:
BATTERY CHARGING
BATTERIES
Westminster
Westminster
Westminster
Westminster
Warning:
Freerider
FIG 22
Grey plugs Grey plugs
Clamp
bracket Clamp
bracket
Grey plug
Batter
y
Front
FIG 20
FIG 21
