Page 2: Doepfer
A-179
Light Ctr. Volt. Source
System A - 100
doepfer
2
Controls:
1
Light Sensor: Light sensitive element (photo
resistor)
2
Offset :
Control for setting the null (zero)
point
3
LEDs :
LEDs to give a visual indication of the
voltages present at outputs " and §
4
LED :
LED to give a visual indication of the
presence of a gate signal at output $
5
Threshold : Control for setting the gate threshold
In- / Outputs:
!
ext. Sensor : Input for external sensor (normalled
jack socket)
"
CV Out :
CV output (normal)
§ Inv. CV Out
: CV output (inverted)
$
Gate Out :
Gate output

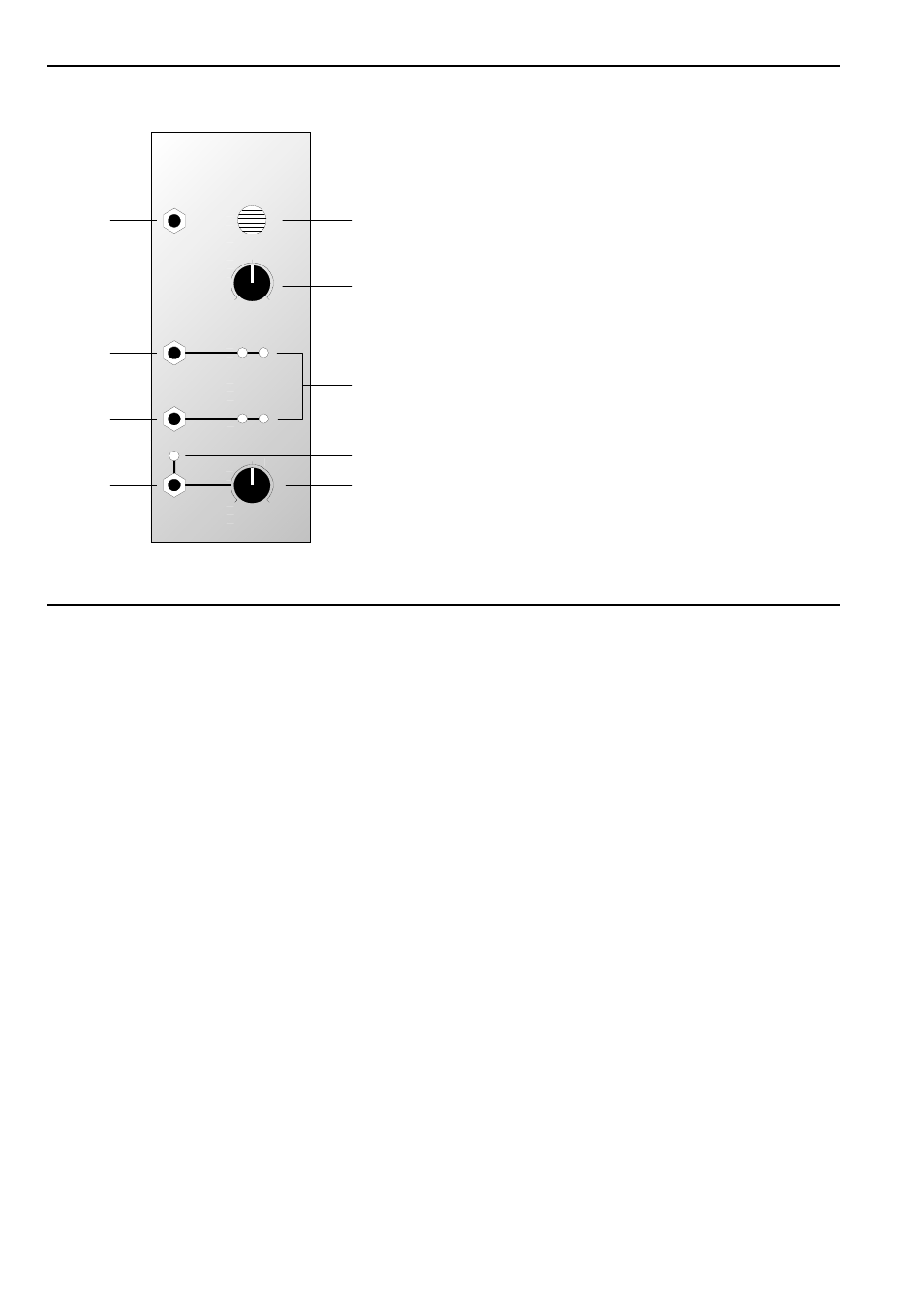

2. LCV - Overview
A-179
LCV
CV
Out
Gate Out
ext. Sensor
➁
➂
➄
0
10
0
10
Offset
Threshold
Light Ctr. Volt. Source
➃
Light Sensor
➀
+
-
+
-
Inv. CV
Out
