A-167, System a - 100, Overview – Doepfer A-167 Analog Comparator / Offset Generator / Subtractor User Manual
Page 2: Doepfer
A-167
CMP
System A - 100
doepfer
2

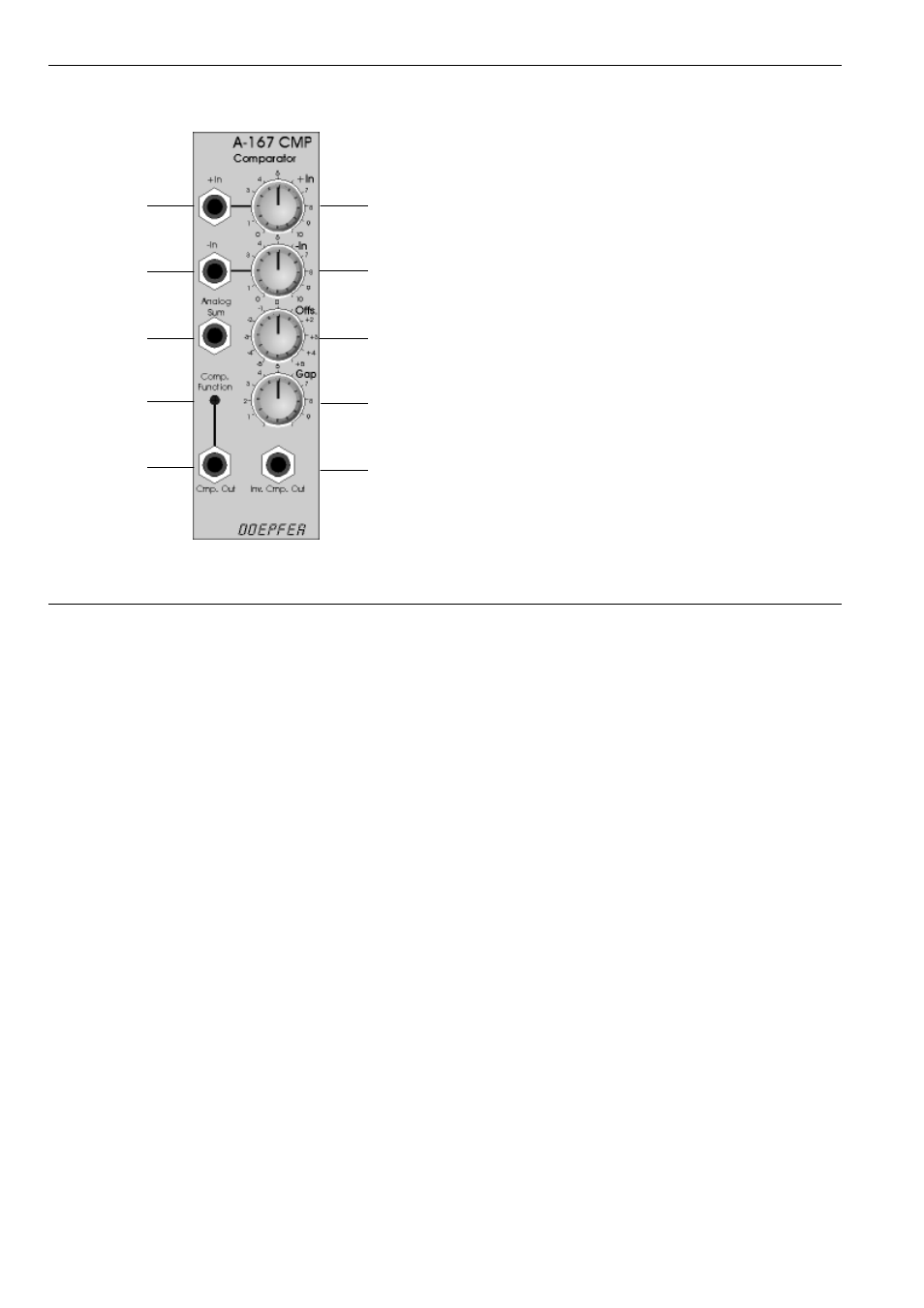

2. Overview
Controls:
1
+ IN :
Attenuator for voltage at input !
2
- IN :
Attenuator for voltage at input "
3
Offs. :
Offset control
4
Gap :
Control to adjust the hysteresis
5
Comp. Function : Gate indicator (LED)
In- / Outputs:
!
+ In :
Non-inverting voltage input
"
- IN :
Inverting voltage input
§
Analog Sum :
Analog voltage output, makes
available the internal voltage:
a1*(+In) - a2*(-In) + Offset
$
Cmp. Out :
Gate output
%
Inv. Cmp. Out : Inverted gate output
➊
➋
➌
➄
➍
➀
➁
➂
➃
➎
