1. Introduction

Module A-144 is an extension module for the Voltage
Controlled Mixer A-135
. It is a so-called Morphing
Controller
that derives from a linear increasing con-
trol voltage
at the input (0...+5V) four displaced
triangle voltages
(0 bis +5 V). These voltages are
used as control voltages for the Voltage Controlled
Mixer to obtain a fading over (“morphing”) the four
A-135 audio inputs with only one control voltage fed
into the A-144 CV input.

Morphing can be controlled manually with the ma-
nual morphing control and modulated with an exter-
nal control voltage
(e.g. from LFO, ADSR, Random,
MIDI-to-CV, Theremin, Light-to-CV, analog sequen-
cer) with attenuator.

Applications

: voltage controlled morphing of 4 audio

signals in combination with A-135, e.g. morphing bet-
ween the 4 waveform outputs of an VCO (sawtooth/
rectangle/ triangle/ sine) or the 4 filter outputs of the
multimode filter A-121
(lowpass/ bandpass/ high-
pass/ notch) or the 4 filter outputs of the A-105
(6/12/18/24dB) to obtain a filter with voltage control-
led slope
.

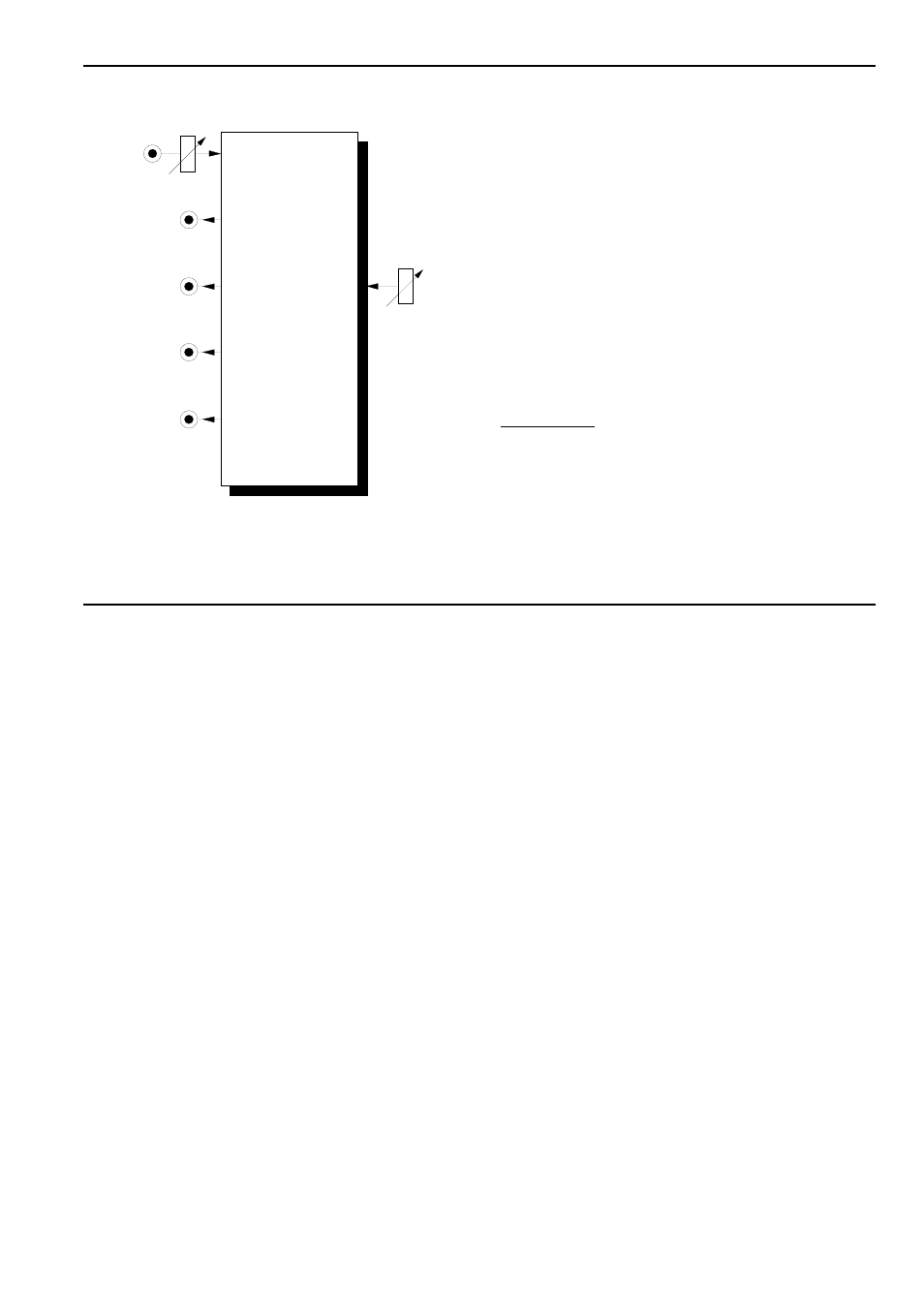

CV
