Distortion / Waveshaper
A-136
5
5. User Examples
Different settings of the 5 parameters enable a lot of
very complex and extreme waveform
modifications. The range of modifications varies from
simple soft or hard clipping to completely altered
waveforms where the original signal is no longer
recognizable. The sketch below shows a few examples
when a triangle signal is used as input.
An oscilloscope would be a good tool to see and
understand the waveform modifications resulting from
different parameter settings.
Typical applications of module A-136 are:
• Audio distortion (especially interesting in
combination with filters), whereby the features of
the A-136 far exceed those of conventional
distortion or fuzz boxes
• Waveform modifications for control signals (e.g.
new control waveforms derived from LFO, ADSR,
Random and so on)

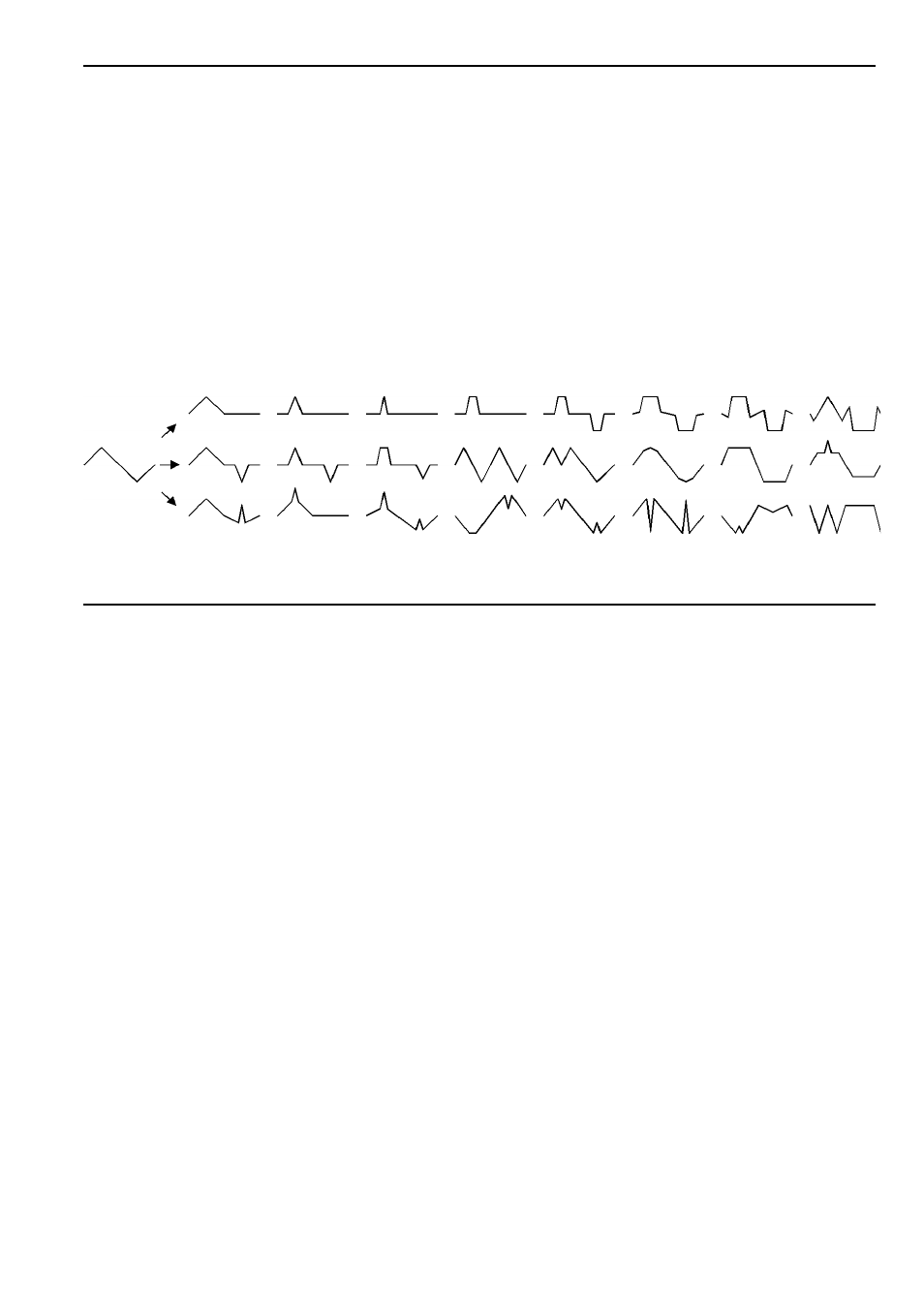

Fig. 2: Examples for new waveforms derived from a triangle input with different parameter settings
