A-136
Distortion / Waveshaper
System A - 100
doepfer
2

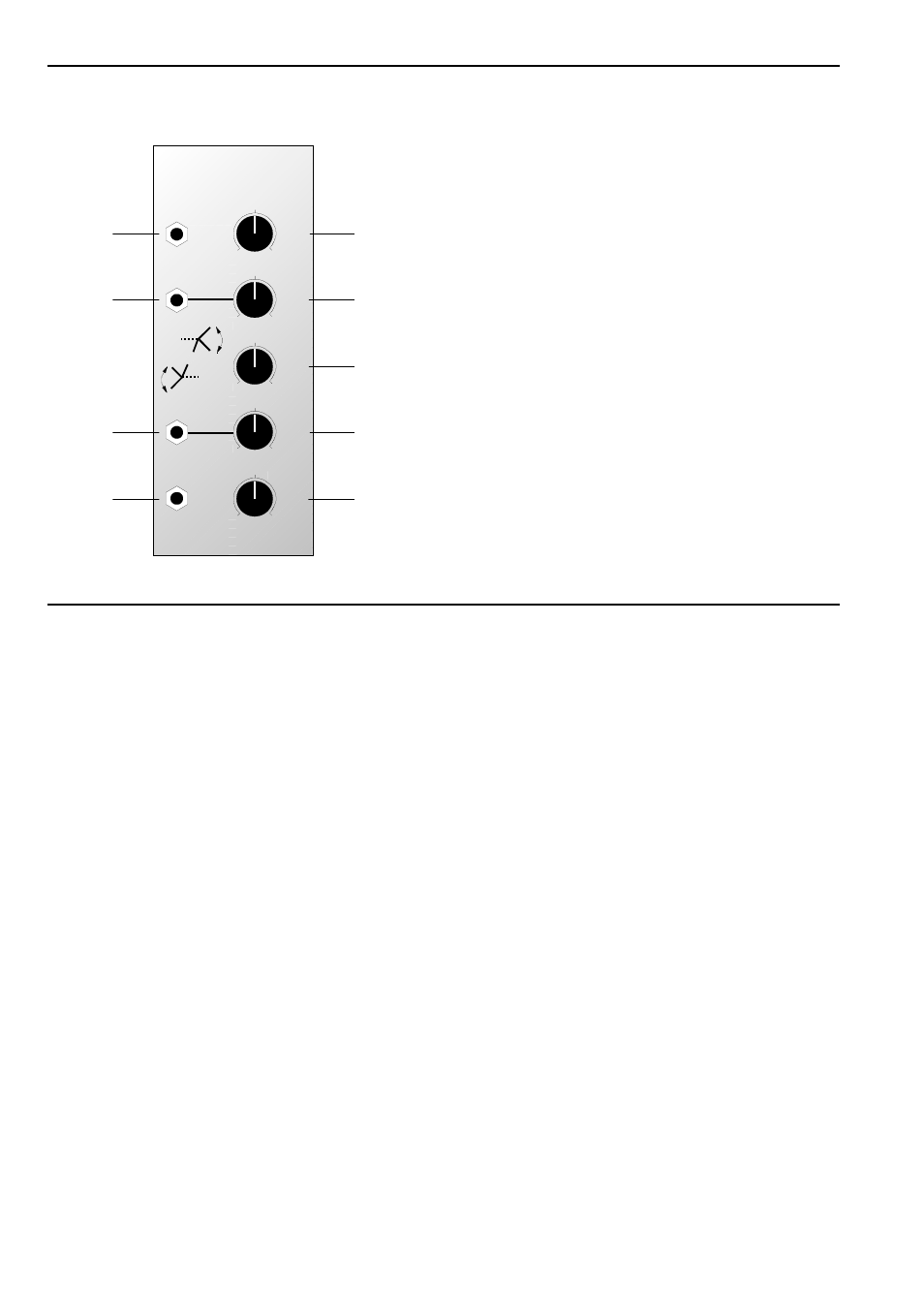

2. DIS - Overview
Controls:
1
A :
Amplification control for original signal
2
+ L :
Clipping control for positive signal compo-
nent
3
- L :
Clipping control for negative signal com-
ponent
4
+ A :
Amplification control for positive signal
component (above the positive clipping
level)
5
- A :
Amplification control for negative signal
component (below the negative clipping
level)
In / Outputs:
!
Input :
Signal input
"
Ext. Level : ext. CV input for positive clipping level
§
Ext. Level : ext. CV input for negative clipping le-
vel
$
Output :
Signal output
A-136
DIS
Ext. Level
Input
+ A
➃
➁
➀
➂
➄
Distortion / Waveshaper
0
10
0
10
0
10
0
10
0
10
Output
Ext. Level
+ L
A
- L
- A
+A
-A
+L
-L
A
