A-134 Voltage Controlled Panning System A - 100 doepfer
2

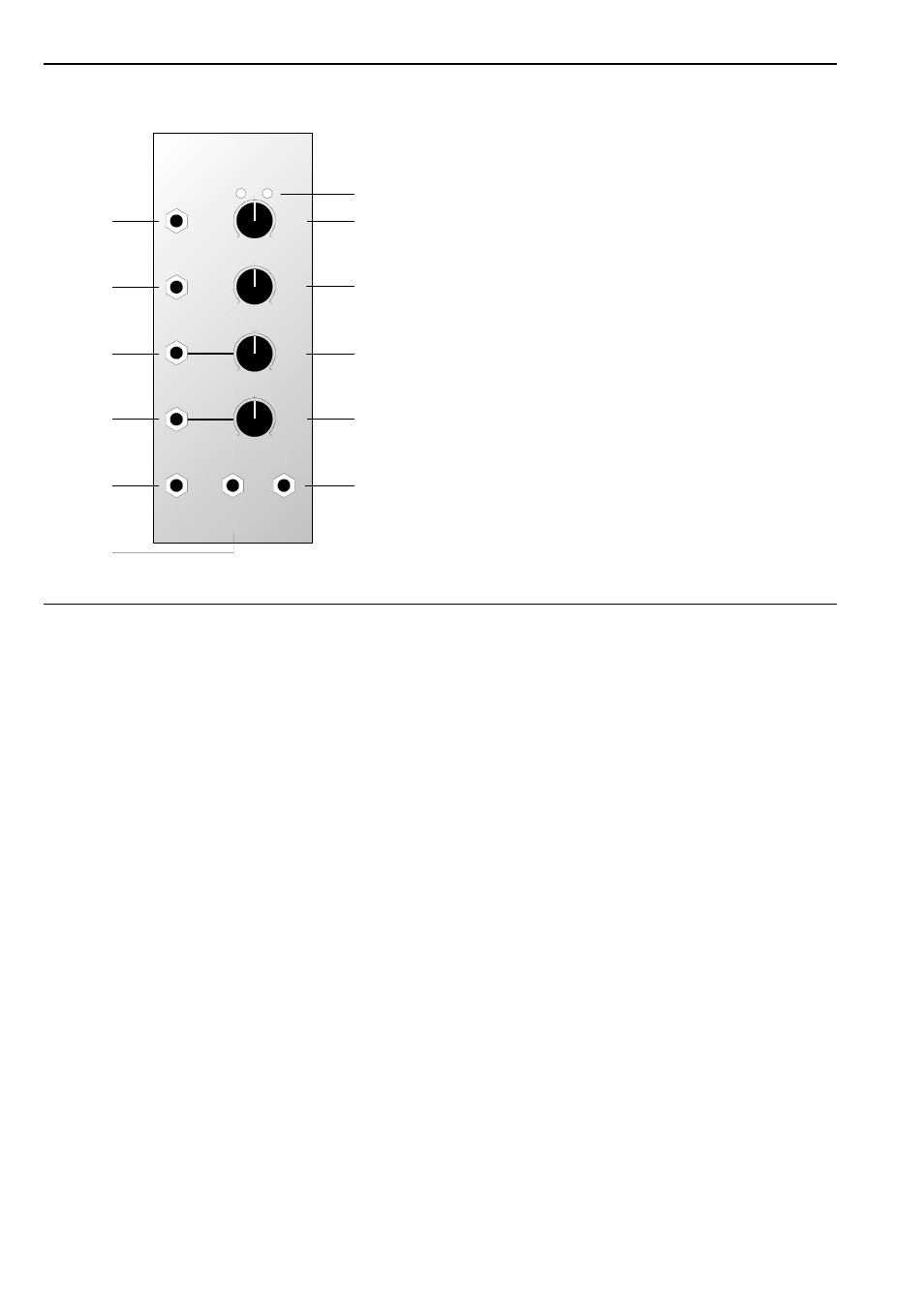

2. PAN - Overview
Controls and indicators:
1 LEDs : status indicators for audio output
2 Pan : manual panning control
3 CV 2 : attenuator for the CV at input "
4 Lev 1 : attenuator for audio signal at input §
5 Lev 2 : attenuator for audio signal at input $
In- / Outputs:
! CV 1 : control voltage input
" CV 2 : ditto, with attenuator §
§ Audio In 1 : input for first audio signal
$ Audio In 2 : input for second audio signal - a swit-
ched socket, so that if nothing is
connected to it, it is automatically lin-
ked to socket §
% Left Output : left audio output
& Mix Output : mix output
/ Right Output: right audio output
A-134 PAN
CV 2
CV 1
➀
➁
➂
➃
➄
Audio In 2
0 10
Pan
0 10
0 10
0 10
VC Panning Module
CV 2
Lev 1
Lev 2
Audio In 1
Left
Output
Mix
Output
Right
Output
