doepfer System A - 100 Voltage Controlled Panning A-134
1
1. Introduction
Module A-134 (PAN) is designed to provide voltage-
controlled panning for audio signals.
It can equally well pan between inputs (with two in-
puts going to one output) and between outputs - one
input going to two outputs.
As well as the manual mode, panning can also be
voltage-controlled. Two CV inputs (one with an at-
tenuator control are included for that purpose.
Two LEDs give a visual indication of what’s hap-
pening to the signals.
To set the incoming audio signals at the right level,
both Audio Inputs have attenuators.

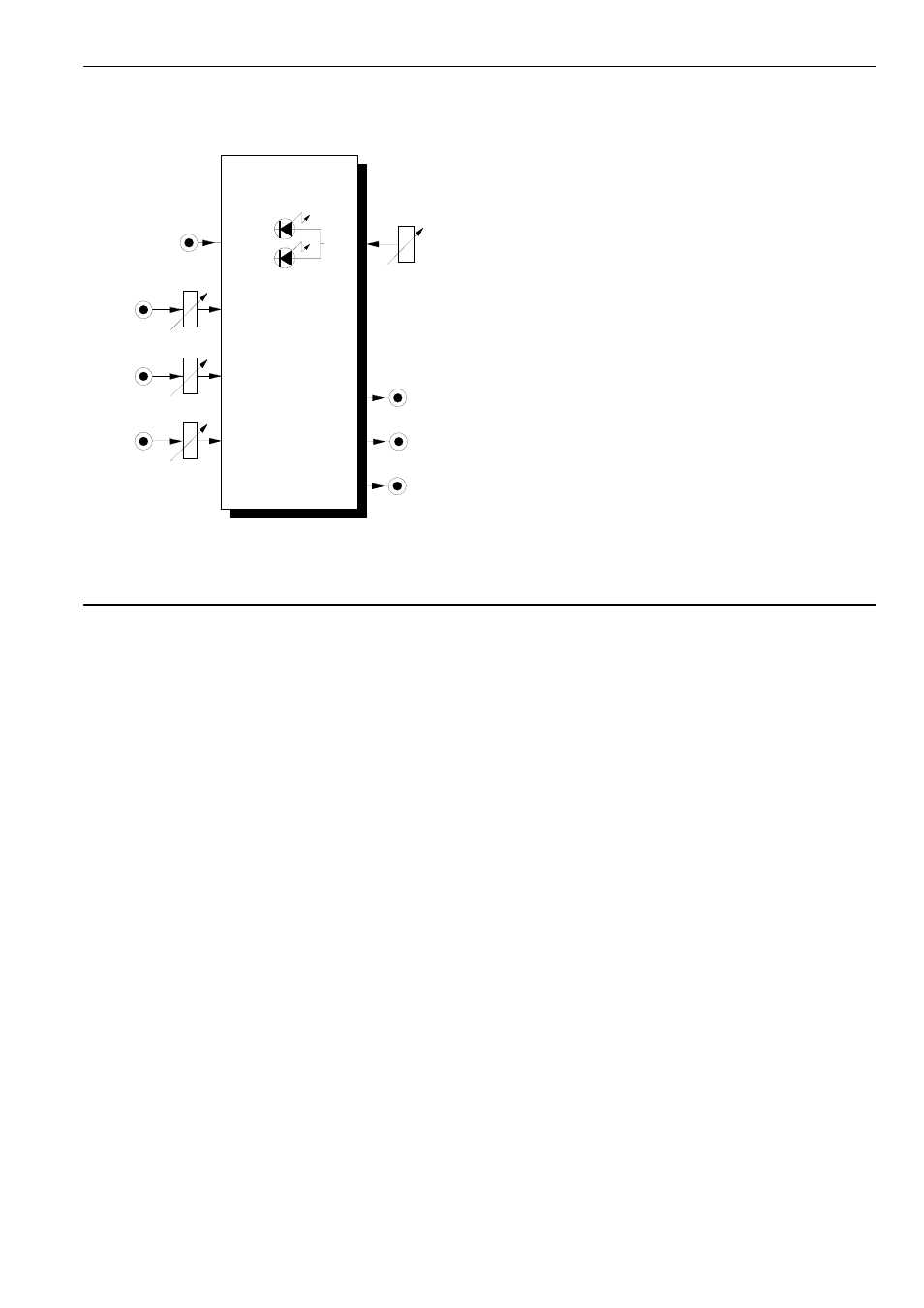

A-134
VC Panning Module
Pan CV 1
Left
Out
CV 2
Audio In 1
CV 2
Lev 1
Lev 2
Audio In 2
Mix
Out
Right
Out
