Note that if a control voltage is partially nega-
tive (for instance an LFO modulating the VCA)
you need to set the VCA gain above zero,
since otherwise the input signal is only ampli-
fied when the modulation CV is positive (see
Fig. 3).

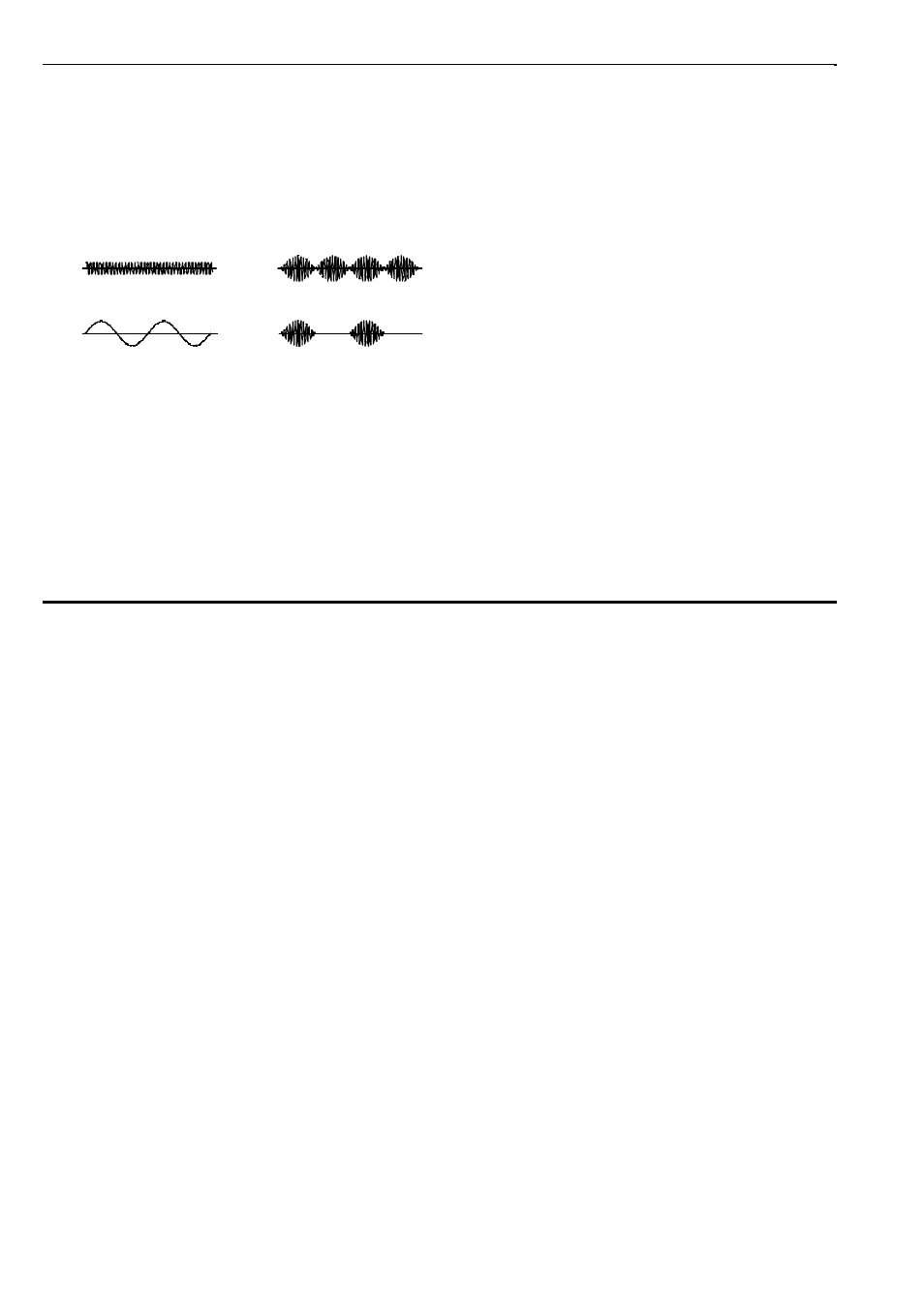

Fig. 3:

VCA output level at different gain settings.

2 CV 2

This attenuator affects the level of voltage control at
socket ". It controls the amount of effect the CV has
on amplification.

3 IN 1 • 4 IN 2

Attenuators 3 and 4 control the level of the signals
input
into the VCA.

H

If the output signal distorts in an unwanted
way, turn down the input level, using control
3 and/or 4.

5 Out

This attenuator controls the total volume of the VCA’s
output.

Input

CV

Output

Gain > 0

Gain = 0
