Page 2: Voiced/unvoiced detector overview
A-129 /5
Voiced/Unvoiced Detector
System A - 100
doepfer
2
2.
Voiced/Unvoiced Detector overview

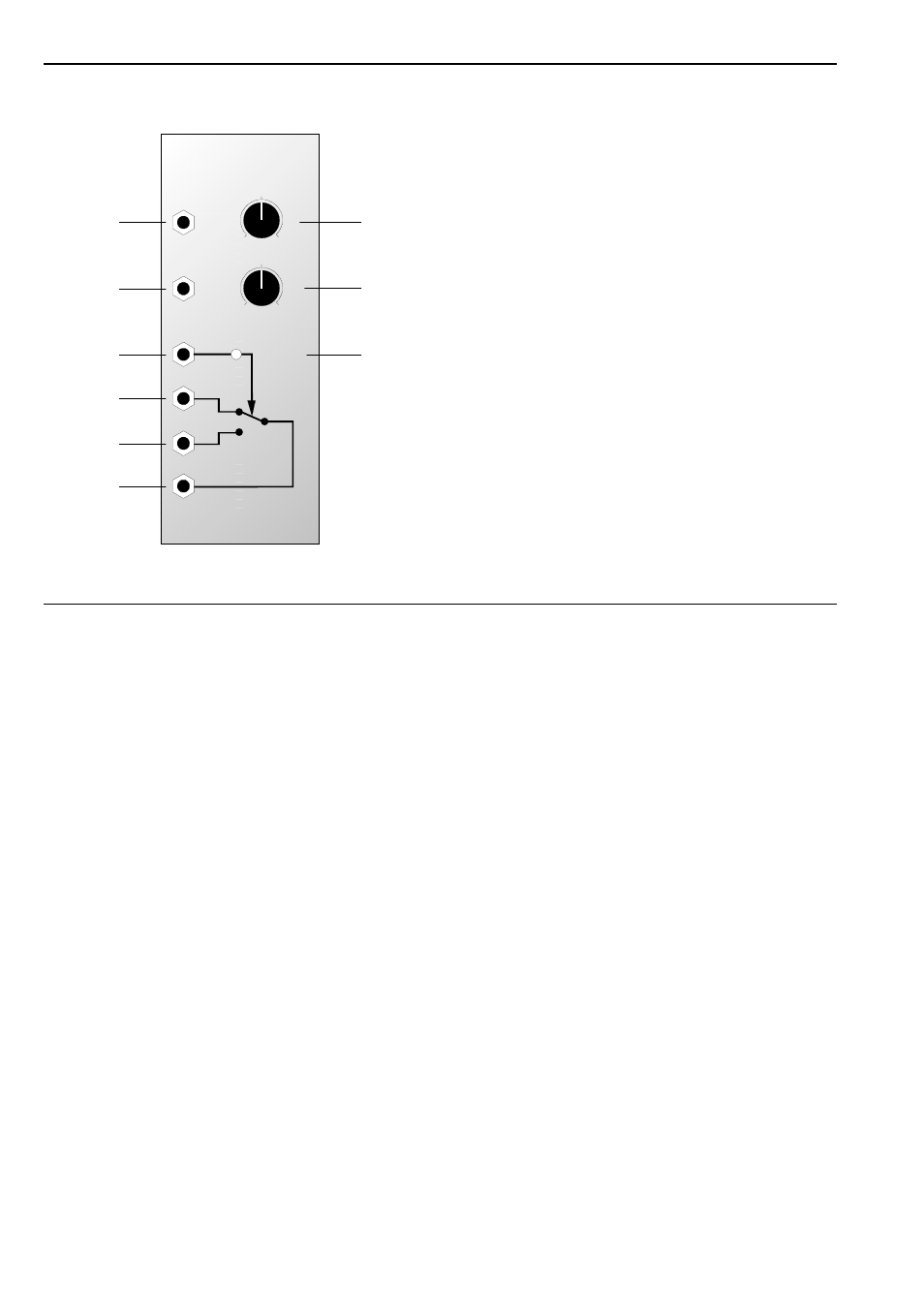

Controls:
1
Gain :
gain control for the speech input
signal patched into socket !
2
Treble Boost : control to increase the treble content
of the speech input signal
3
LED :
LED indicator to show the presence
and relative strength of the unvoiced
signal
In / Outputs:
!
Speech Input :
input for speech signal
"
Speech Output :
output for speech signal after
amplification and treble boost
§
Gate Output :
gate output, active during un-
voiced sections of the sound
$
Unvoiced Input :
input for unvoiced carrier signal
%
Voiced Input :
input for voiced carrier signal
&
Voiced / Unvoiced Output: output for the carrier signal:
depending on the status of the
switching, it sends out the car-
rier signal present at sockets $
or %
A-129 /5
VUV
Speech
Output
Gain
Unvoiced
Speech
Input
➀
➁
➂
Voiced / Unvoiced Detec.
0
10
Unvoiced
Input
0
10
Treble Boost
Gate
Output
Voiced
Input
Voiced / Unvoiced
Output
