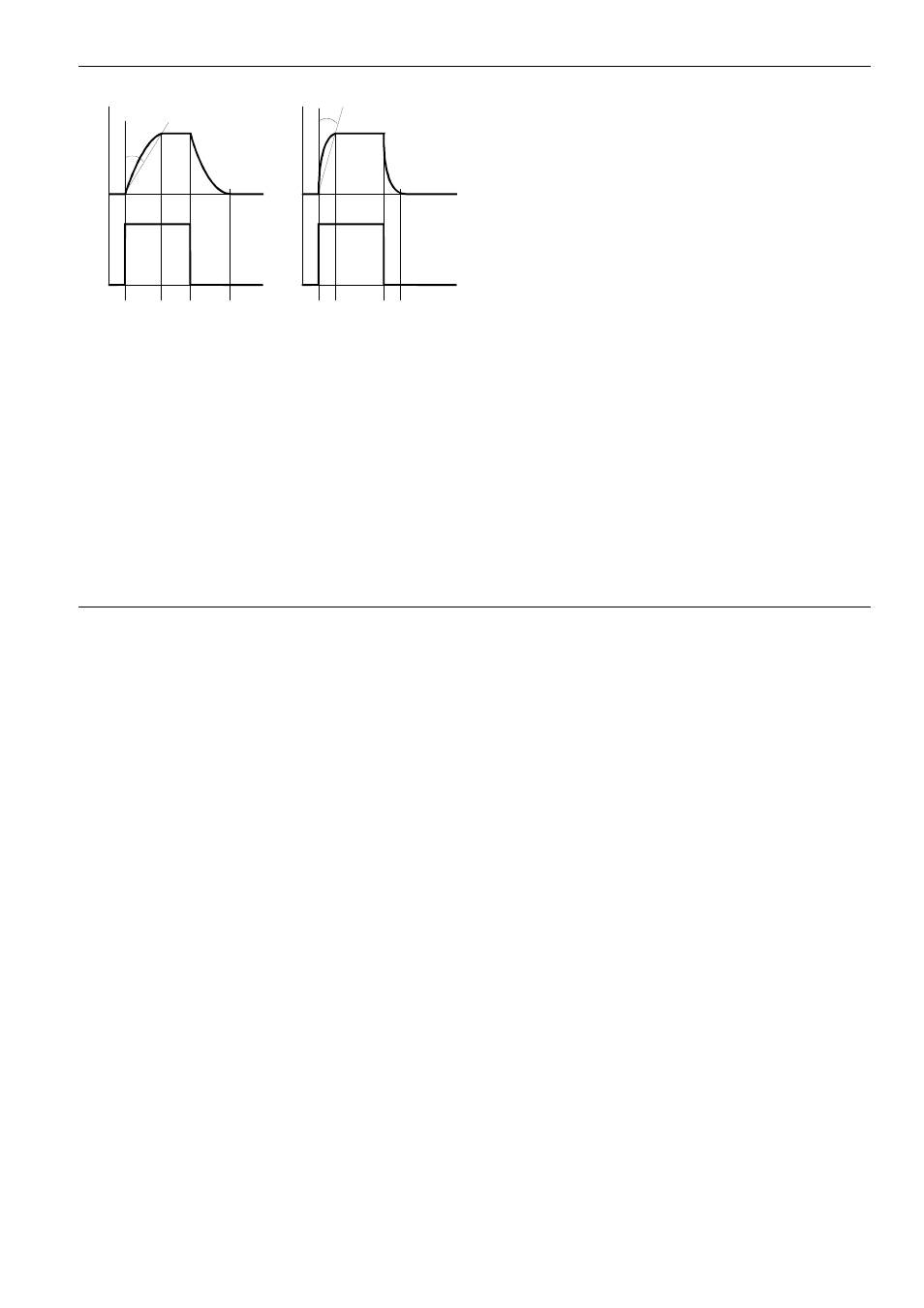

Fig. 2: Slew rate explanatory diagram
(Attenuator=10, Offset=0)
With the control set at 0, the output signal is identical
to the input.
H The precise slew rate is decided by a com-
bination of the position of control 4, the con-
trol voltage available at input %, and the po-
sition of attenuator 5.
5 Slew CV
The amplitude of the control voltage at input % is
controlled with this attenuator 5.
6 LED
The LED indicates the mode of the slew limiter signal
at output &:
• dim : freeze
• bright : follow
CV
In
α α α α
CV
Out
CV
In
α α α α
CV
Out
