A-126
VC Frequency Shifter
System A - 100
doepfer
2

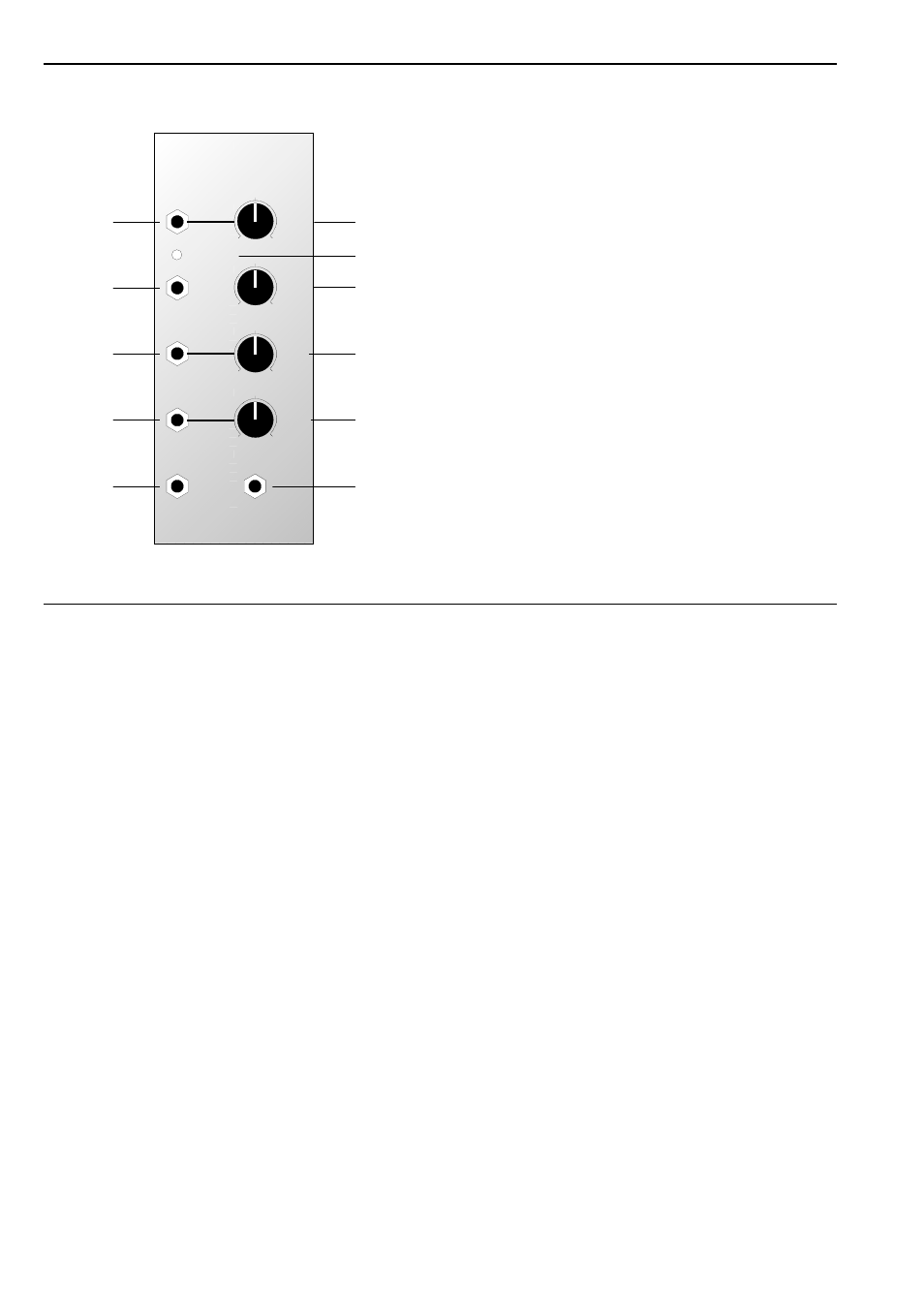

2. VCFS - Overview
Controls:
1
Level :
gain control for the signal connected
to input !
2
Overload :
LED overload warning light for the
input signal
3
Shift :
control for manual frequency-shifting
4
CV :
attenuator for the frequency-shifting
control voltage at input §
5
Mix :
control to balance the relative
amounts of Up and Down frequency-
shifted signals at output $
In / Outputs:
!
Audio In :
audio input (line level)
"
Audio Out : audio output (the original signal
amplified but not frequency-shifted)
§
CV :
control voltage input for pitch-shifting
$
Mix Output :
mix output for Up and Down signals
%
Down Output : output for just the downward-shifted
audio signal (Down)
&
Up Output :
output for just the upward-shifted
audio signal (Up)
A-126
VCFS
Audio Out
CV
Shift
CV
Mix
Level
Audio In
➀
➂
➃
➄
VC Frequency Shifter
0
10
0
10
0
10
0
10
Down
Output
Mix
Output
Up
Output
Overload
➁
